Description

Price

1

HEAD REST

2PG-F472L-00-00

Unavailable

2

BOLT

90109-06079-00

$2.60

3

ASSIST GRIP ASSY.,

1XD-F470J-00-00

$139.99

4

BOLT

90101-06824-00

$3.24

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

PIPE 2

1XD-F6136-00-00

Unavailable

7

BOLT, FLANGE

95817-08012-00

$5.49

8

BUSH, CAP

1XD-F467K-00-00

Unavailable

9

PIN, LOCK

1XD-F5926-00-00

Unavailable

10

SNAP, PIN

1XD-F311F-00-00

$7.99

11

FR. BELT RECEIVER

2PG-F470R-00-00

$43.99

12

FR. BELT RECEIVER

2PG-F470R-10-00

$97.99

13

FR. SEAT BELT ASSY

1XD-F470L-00-00

$211.99

14

BOLT, FLANGE

95812-12020-00

$8.49

15

BOLT,HEX. SOCKET B

90111-12002-00

$3.81

16

BOLT, SPECIAL

16B-F3394-01-00

Unavailable

17

WASHER, PLATE

90201-11801-00

Unavailable

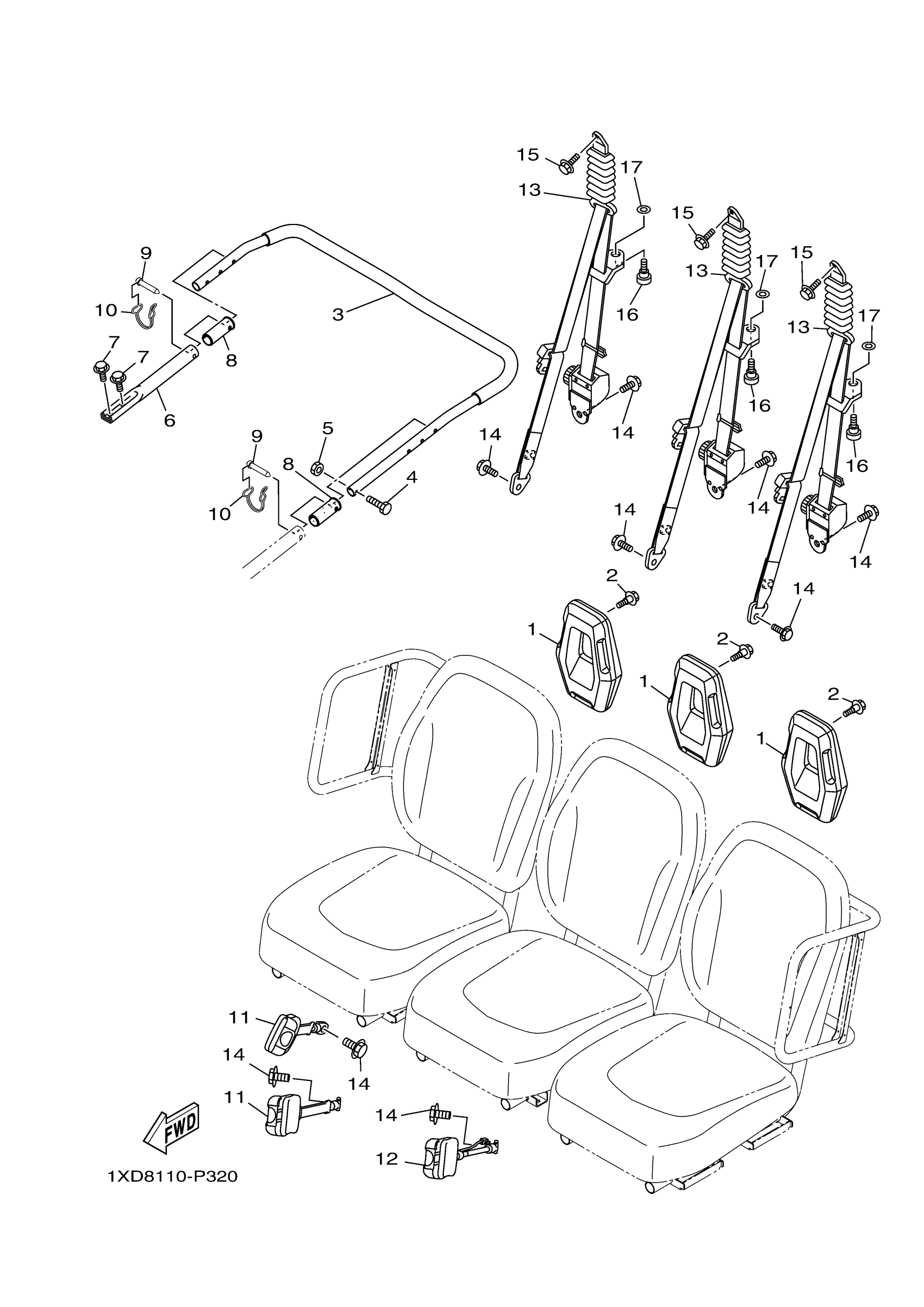

Yamaha YXM700PSFS (VIKING EPS SE) 1XPT 2015 SEAT 2 Diagram

HEAD REST

BOLT

ASSIST GRIP ASSY.,

BOLT

NUT, SELF-LOCKING

PIPE 2

BOLT, FLANGE

BUSH, CAP

PIN, LOCK

SNAP, PIN

FR. BELT RECEIVER

FR. BELT RECEIVER

FR. SEAT BELT ASSY

BOLT, FLANGE

BOLT,HEX. SOCKET B

BOLT, SPECIAL

WASHER, PLATE
