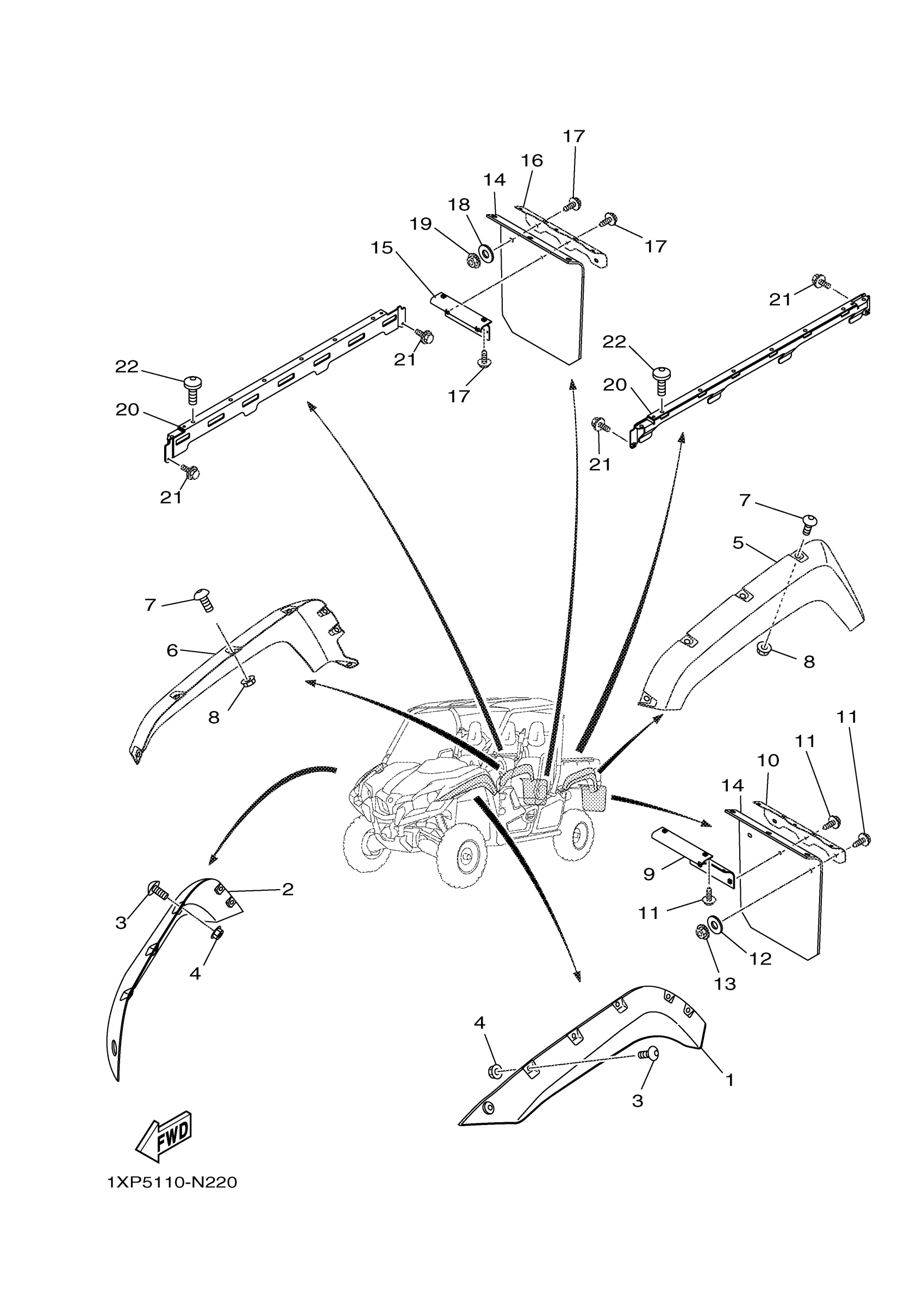

Yamaha YXM700PSFS (VIKING EPS SE) 1XPT 2015 FENDER Diagram

#

Description
Price

1

OVER,FENDER

1XP-F1551-00-00

$16.77

2

FENDER,OVER 2

1XP-F1555-00-00

$17.73

3

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

4

NUT, U FLANGE

95604-06200-00

$2.19

5

FENDER, OVER 3

1XP-F1559-00-00

$17.92

6

FENDER, OVER 4

1XP-F1560-00-00

$17.92

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

NUT, U FLANGE

95604-06200-00

$2.19

9

PLATE,FLAP FITTING 1

1XP-F1623-00-00

$15.29

10

BRACKET 1

1XP-F8426-00-00

$7.91

11

BOLT, WITH WASHER

90119-06226-00

$2.12

12

WASHER, PLATE

90201-06081-00

Unavailable

13

NUT, U FLANGE

95604-06200-00

$2.19

14

FLAP

1XP-F1691-00-00

$25.82

15

PLATE,FLAP FTNG 2

1XP-F1624-00-00

$15.00

16

BRACKET 1

1XP-F8426-00-00

$7.91

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

WASHER, PLATE

90201-06081-00

Unavailable

19

NUT, U FLANGE

95604-06200-00

$2.19

20

BRACKET, ACCESSORY 1

1XP-F8232-00-00

$50.77

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-08073-00

$3.84
