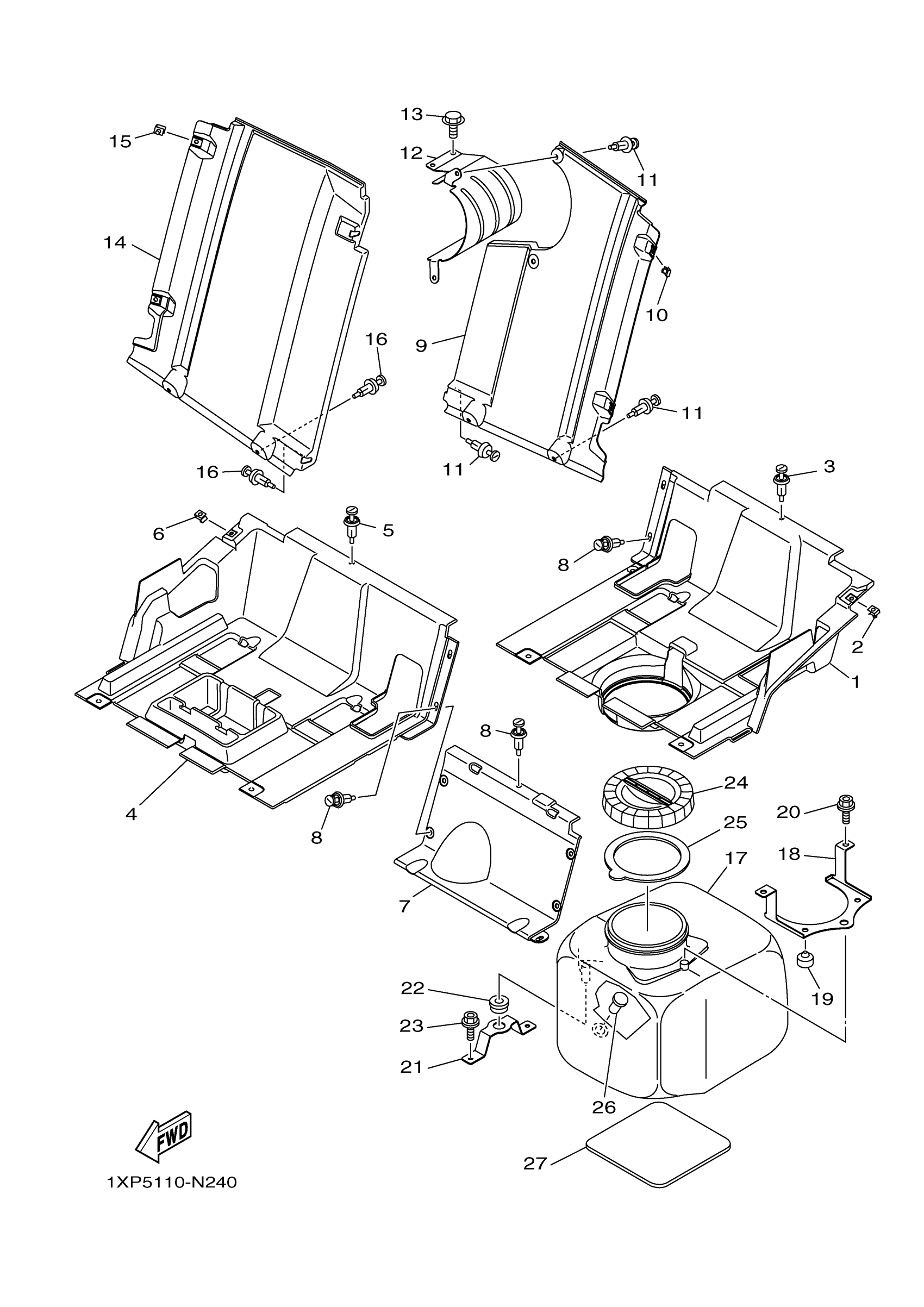

Yamaha YXM700PSEB (VIKING 700 EPS SE) 1XP5 2014 SIDE COVER 2 Diagram
#
Description
Price
1
PLATE, UNDER 1
1XD-F84A3-00-00
$45.99
2
NUT, SPRING
90183-060A6-00
$5.49
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
PLATE, UNDER 2
1XD-F84A4-00-00
Unavailable
5
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
6
NUT, SPRING
90183-060A6-00
$5.49
7
PLATE, UNDER 3
1XD-F84A5-00-00
Unavailable
8
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
9
MUD GUARD 1
1XD-F2327-00-00
$33.99
10
NUT, SPRING
90183-060A6-00
$5.49
11
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
12
PANEL 1
1XD-F172A-00-00
Unavailable
13
BOLT, FLANGE
90105-08867-00
$15.99
14
MUD GUARD 2
1XD-F2328-01-00
$31.99
15
NUT, SPRING
90183-060A6-00
$5.49
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
BOX 1
1XP-F838K-01-00
Unavailable
18
BRKT., CANISTER
1XP-F115R-00-00
Unavailable
19
PAD, SEAT
22W-24741-00-00
Unavailable
20
BOLT, FLANGE
90105-08867-00
$15.99
21
BRKT., FR. STORAGE
1XP-F253E-00-00
Unavailable
22
GROMMET (1L9)
90480-22196-00
Unavailable
23
BOLT, FLANGE
90105-06831-00
Unavailable
24
CAP
1XP-F151B-00-00
Unavailable
25
SEAL
1XP-F8307-01-00
Unavailable
26
. PLUG, BLIND
90605-502U1-00
Unavailable
27
DAMPER, PLATE
90520-03820-00
Unavailable
