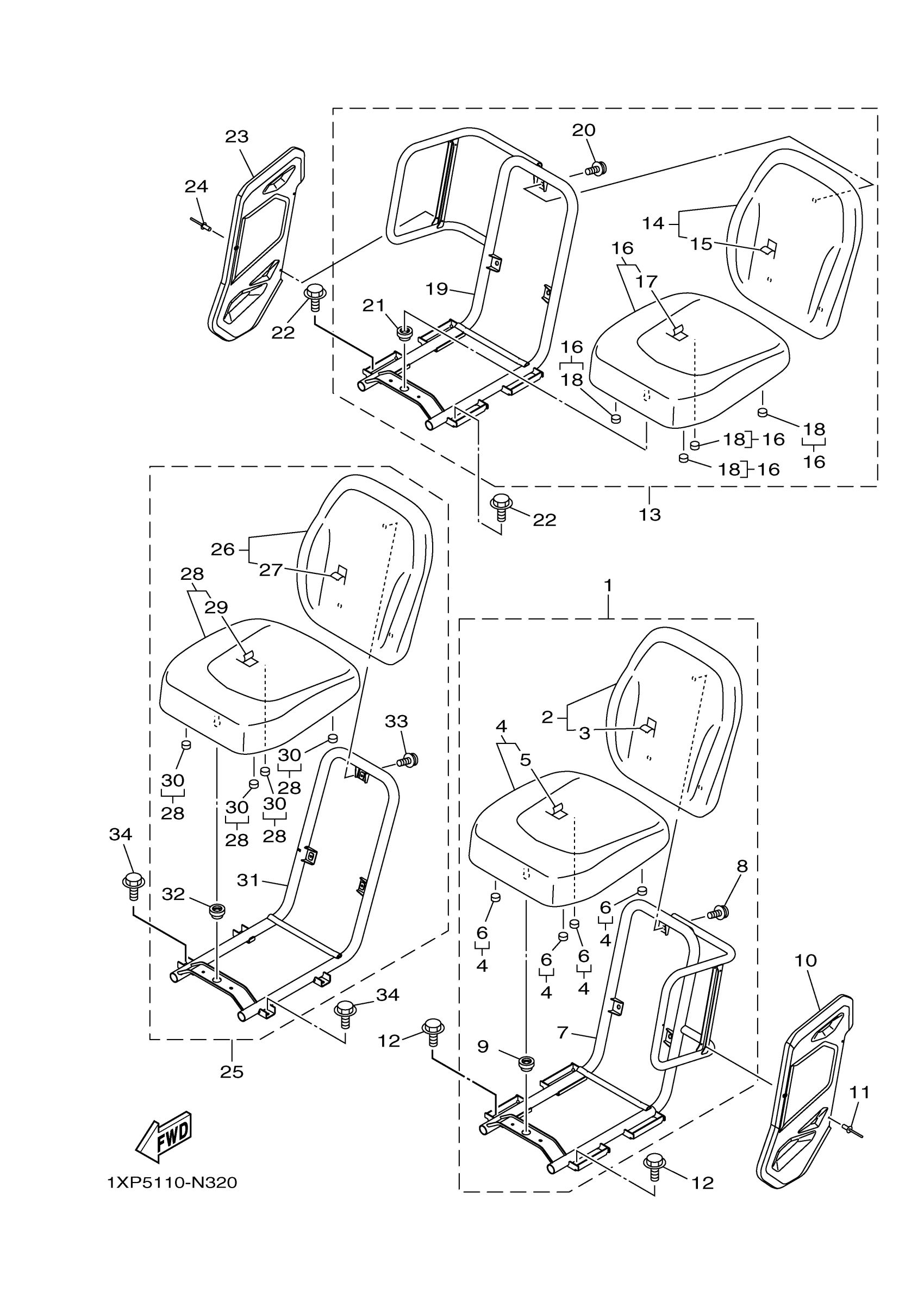

Yamaha YXM700PSEB (VIKING 700 EPS SE) 1XP5 2014 SEAT Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$263.94

2

SEAT BACK ASY

1XD-F4790-01-00

$472.71

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

6

DAMPER, SEAT

1XD-F4723-00-00

$1.47

7

FRAME, SEAT 1

1XD-F473C-01-00

$294.55

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

$2.96

10

COVER,2

1XD-F475X-01-00

$31.03

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.71

13

SEAT 2

2PG-F7499-02-00

$309.30

14

SEAT BACK ASY

1XD-F4790-01-00

$472.71

15

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

16

SEAT ASSY

1XD-F4700-01-00

Unavailable

17

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

18

DAMPER, SEAT

1XD-F4723-00-00

$1.47

19

FRAME, SEAT 2

1XD-F473D-01-00

$253.64

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

$2.96

22

BOLT, FLANGE

95817-08012-00

$3.71

23

COVER,2

1XD-F475X-01-00

$31.03

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-02-00

$324.95

26

SEAT BACK ASY

1XD-F4790-01-00

$472.71

27

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

28

SEAT ASSY

1XD-F4700-01-00

Unavailable

29

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

30

DAMPER, SEAT

1XD-F4723-00-00

$1.47

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

$2.96

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.71
