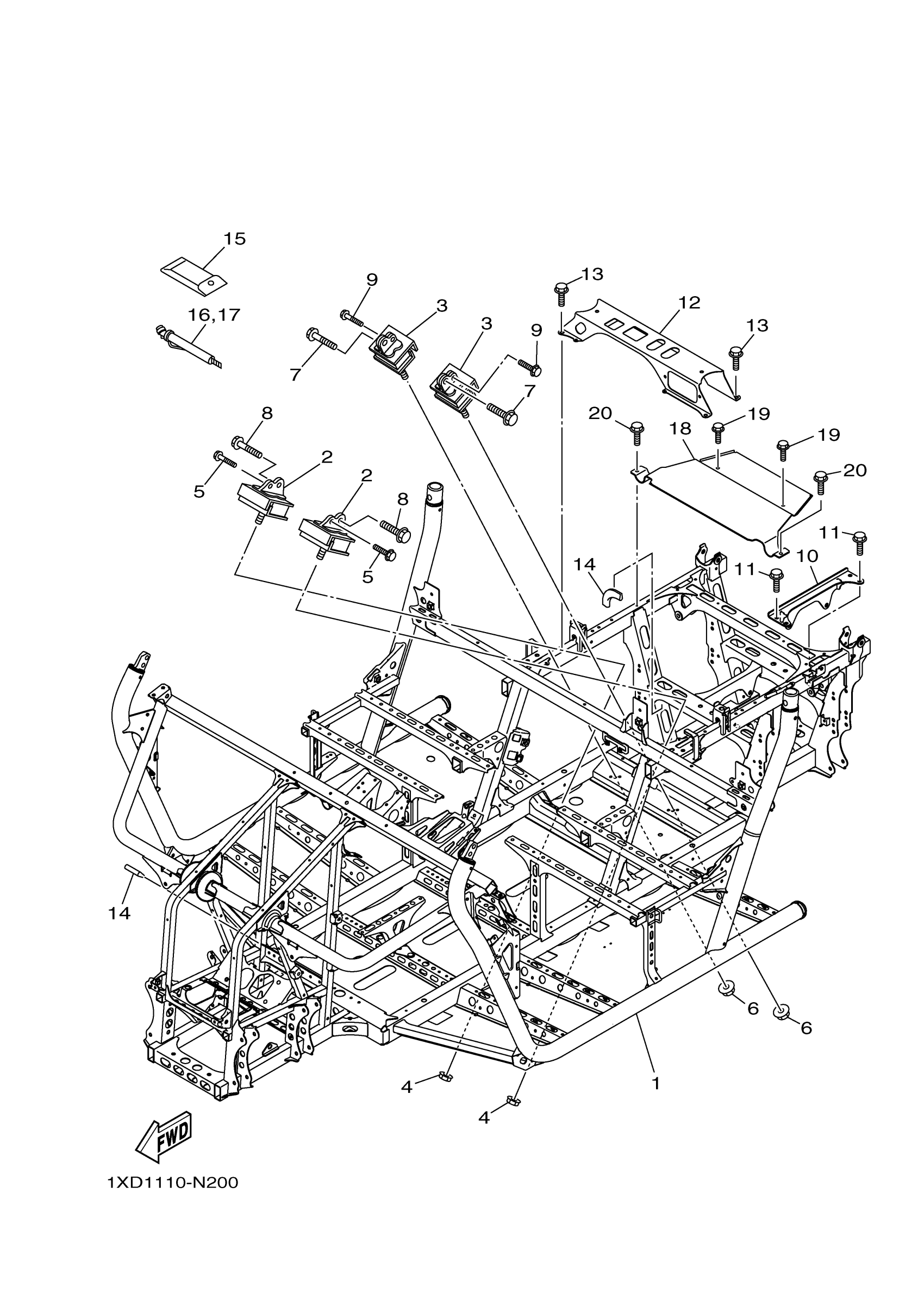

Yamaha YXM700PSEB (VIKING 700 EPS SE) 1XP5 2014 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1XD-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

5B4-21485-01-00

$114.99

3

DAMPER, RUBBER 1

5B4-21485-01-00

$114.99

4

NUT, SELF-LOCKING

90185-10011-00

$5.60

5

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

6

NUT, SELF-LOCKING

90185-10011-00

$5.60

7

BOLT, FLANGE

95812-10035-00

$5.60

8

BOLT, FLANGE

90105-10314-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

10

STAY, SUPPORT 1

1XD-F831T-00-00

Unavailable

11

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

12

PROTECTOR 1

1XD-F834V-00-00

$30.99

13

BOLT, FLANGE

90105-08867-00

$15.99

14

MOLE 3

4XY-28347-00-00

Unavailable

15

TOOL KIT

5B4-F8100-00-00

$43.99

16

GAUGE, AIR

5UG-F811A-00-00

Unavailable

17

GAUGE, AIR

4XY-2811A-01-00

Unavailable

18

INSULATOR, HEAT

1XD-F2898-10-00

Unavailable

19

BOLT, FLANGE

90105-08867-00

$15.99

20

BOLT, FLANGE

90105-08867-00

$15.99
