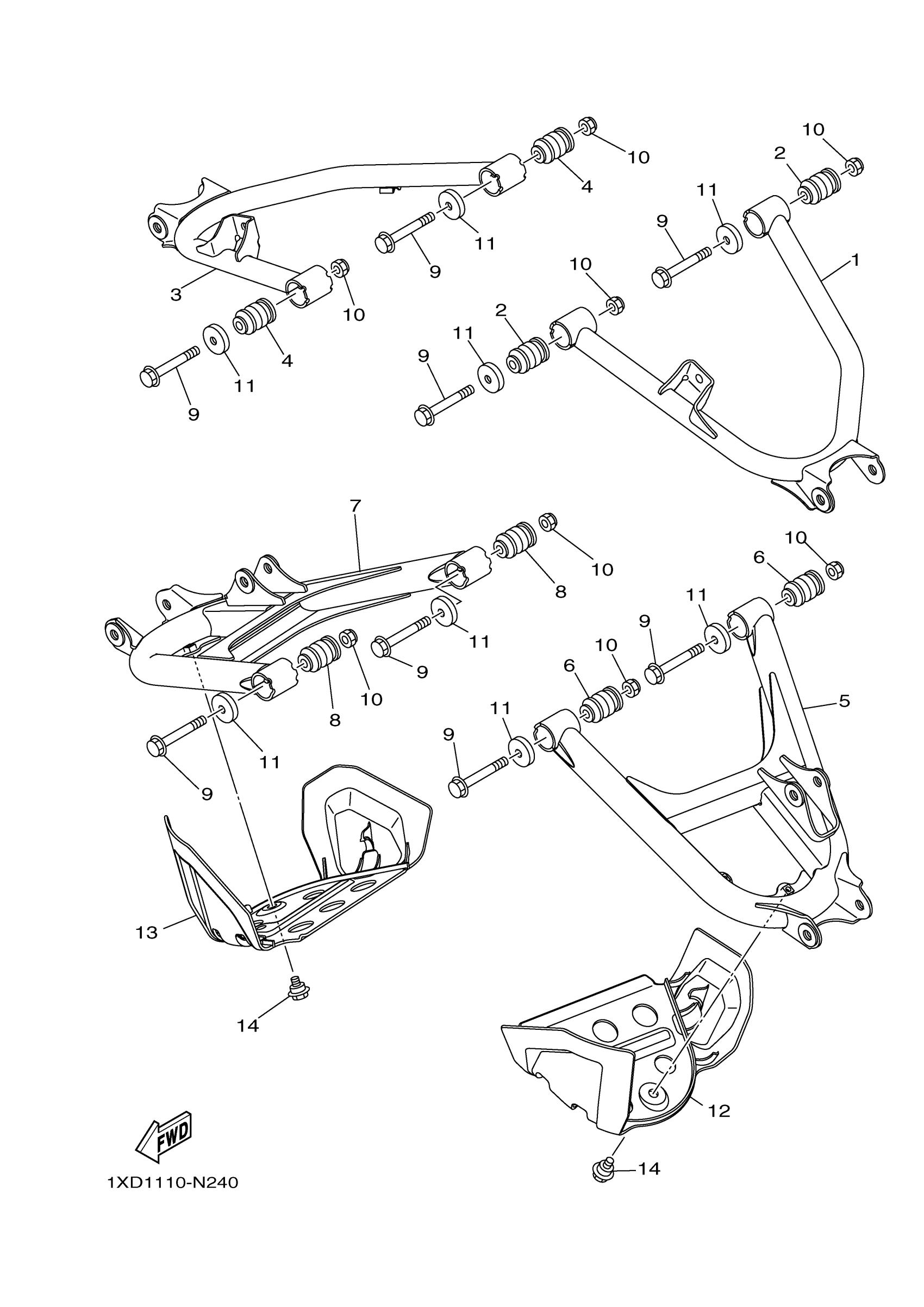

Yamaha YXM700PHFH (VIKING EPS HUNTER) 1XPJ 2015 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

1XD-F2171-00-00

$42.97

2

BUSH

1HP-F3526-00-00

$20.42

3

ARM, REAR 2

1XD-F2172-00-00

$65.66

4

BUSH

1HP-F3526-00-00

$20.42

5

ARM 1

1XD-F217M-01-00

$62.58

6

BUSH

1HP-F3526-00-00

$20.42

7

ARM 2

1XD-F217N-01-00

$60.78

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10267-00

$7.23

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

WASHER

5KM-22149-10-00

$5.96

12

COVER, THRUST 1

1XD-F2128-01-00

Unavailable

13

COVER, THRUST 2

1XD-F2129-01-00

$9.15

14

BOLT

90109-06220-00

$6.94
