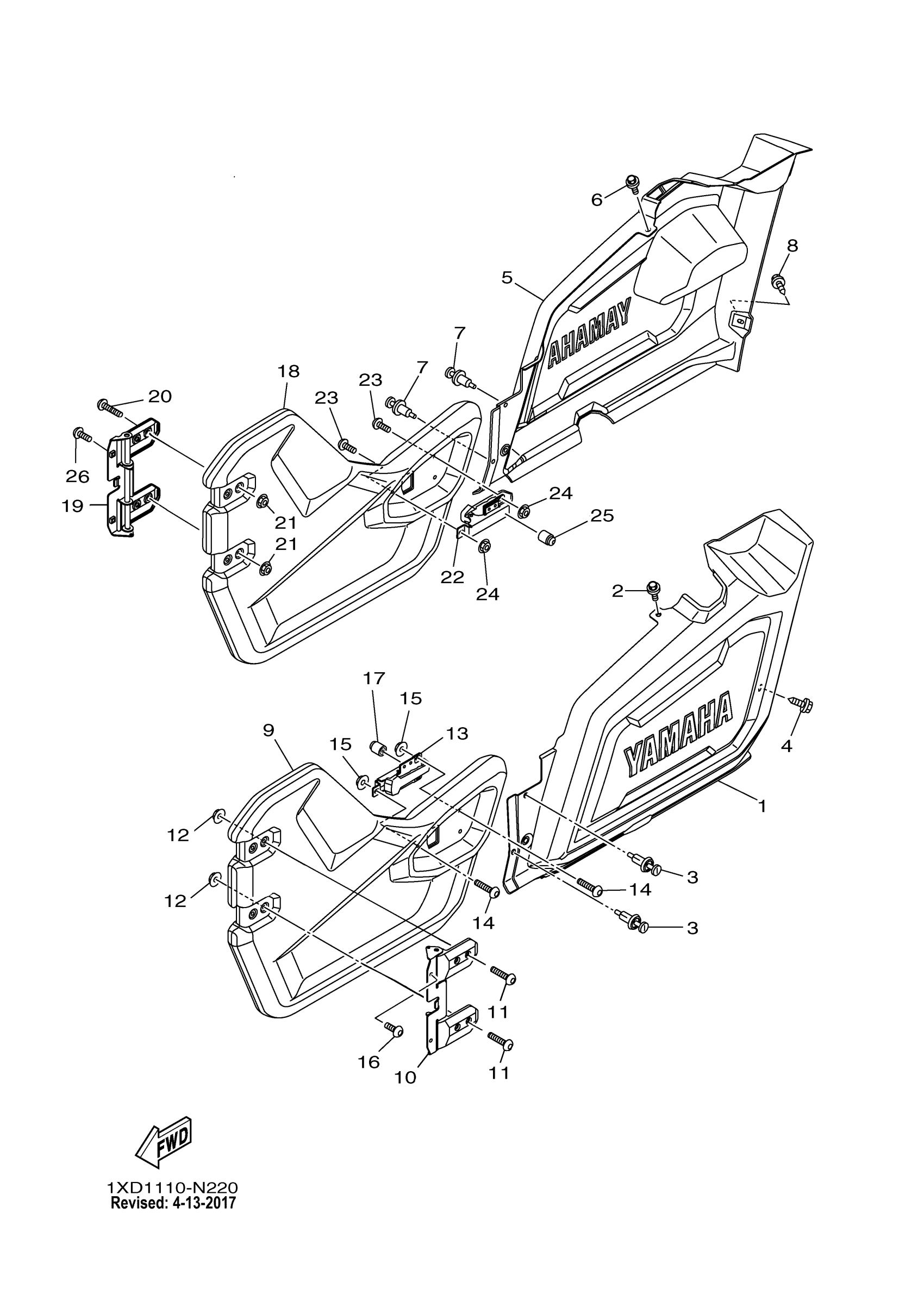

Yamaha YXM700PHEH (VIKING 700 EPS HUNTER) 1XP9 2014 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

1XD-F1721-00-00

$31.68

2

BOLT, WITH WASHER

90119-06226-00

$2.12

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

BOLT, WITH WASHER

90119-06226-00

$2.12

5

COVER, SIDE 3

1XD-F1731-00-00

$28.82

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

PNL., DOOR FR. LH.

1XD-K8557-00-00

$70.70

10

HINGE ASSY

1XD-F4772-00-00

$37.92

11

BOLT

90109-06897-00

$0.84

12

NUT, U FLANGE

95604-06200-00

$2.19

13

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

14

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

15

NUT, U FLANGE

95604-06200-00

$2.19

16

BOLT 2

5B4-F1722-00-00

Unavailable

17

PAD

1XD-F8378-00-00

Unavailable

18

PNL., DOOR FR. LH.

1XD-K8557-00-00

$70.70

19

HINGE ASSY

1XD-F4772-00-00

$37.92

20

BOLT

90109-06897-00

$0.84

21

NUT, U FLANGE

95604-06200-00

$2.19

22

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

24

NUT, U FLANGE

95604-06200-00

$2.19

25

PAD

1XD-F8378-00-00

Unavailable

26

BOLT 2

5B4-F1722-00-00

Unavailable
