- YXM700PHEH (VIKING 700 EPS HUNTER) 1XP9 2014
SHIFT SHAFT

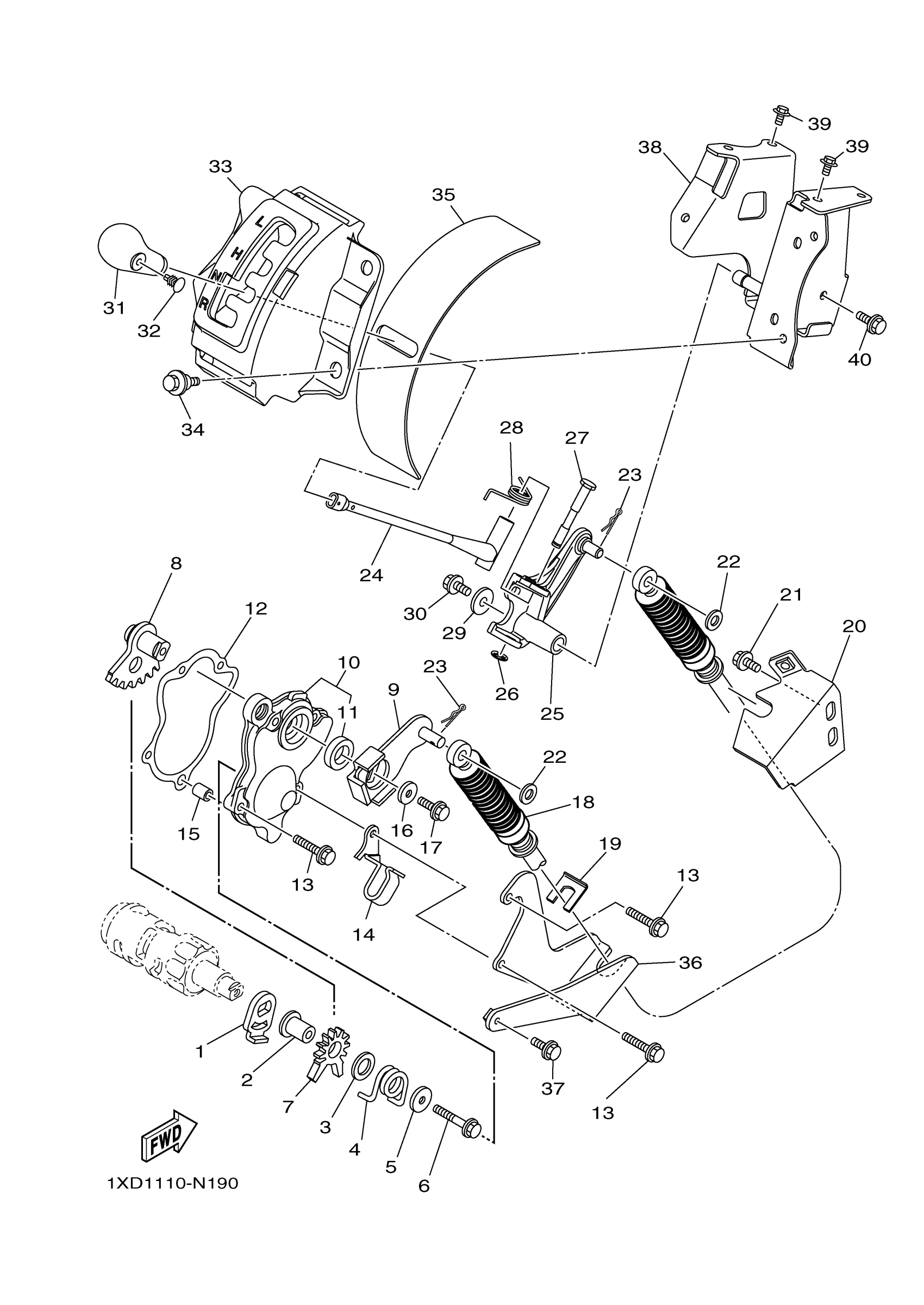

Yamaha YXM700PHEH (VIKING 700 EPS HUNTER) 1XP9 2014 SHIFT SHAFT Diagram
#
1
LEVER
1XD-18198-00-00
$4.94
2
COLLAR
90387-0613B-00
$9.49
3
WASHER, PLATE
90201-13013-00
$8.49
4
SPRING, TORSION(1YW)
90508-35764-00
$5.60
5
WASHER, PLATE
90201-06036-00
$8.49
6
95812-06035
95812-06035-00
$4.94
7
LEVER
5KM-18191-00-00
$24.99
8
SHIFT SHAFT COMP.
1HP-18103-00-00
Unavailable
9
SHIFT GUIDE COMP.
1XD-18104-00-00
$61.99
10
SHIFTER BRKT. ASSY
1HP-18380-00-00
Unavailable
11
OIL SEAL (15A)
93102-17263-00
$10.49
12
GASKET
3B4-18146-00-00
$6.99
13
BOLT, FLANGE
95022-06025-00
$3.62
14
CLAMP
90462-10048-00
Unavailable
15
PIN, DOWEL
99530-08012-00
Unavailable
16
WASHER, PLATE
90201-06036-00
$8.49
17
BOLT, FLANGE
90105-06175-00
Unavailable
18
CABLE, CONTROL 1
1XD-2637E-00-00
Unavailable
19
CIRCLIP
1XD-25866-00-00
Unavailable
20
HOLDER, ADJUSTING
1XD-F6381-00-00
Unavailable
21
BOLT, FLANGE
95817-08014-00
Unavailable
22
.. WASHER, PLATE
92990-08600-00
Unavailable
23
CLIP
90468-16001-00
Unavailable
24
LEVER COMP. 1
1XD-E8190-10-00
Unavailable
25
ARM, SHIFT 2
1XD-E8169-00-00
Unavailable
26
CIRCLIP(53L)
99001-06600-00
Unavailable
27
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
28
SPRING, RETURN
1HP-E8196-00-00
Unavailable
29
WASHER, PLATE
90201-06036-00
$8.49
30
BOLT, FLANGE
95817-06016-00
Unavailable
31
KNOB, SHIFT LEVER
28P-18174-00-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
GUIDE, SHIFT
1XD-E8172-00-00
Unavailable
34
BOLT
90109-06172-00
Unavailable
35
COVER, DUST
1HP-E8154-01-00
Unavailable
36
BRACKET, SHIFTER
1XD-18431-00-00
Unavailable
37
BOLT, FLANGE
95022-06012-00
Unavailable
38
PLATE, SHIFT ARM
1XD-E811A-00-00
Unavailable
39
BOLT, FLANGE
95817-06012-00
Unavailable
40
BOLT, FLANGE
90105-06831-00
Unavailable
