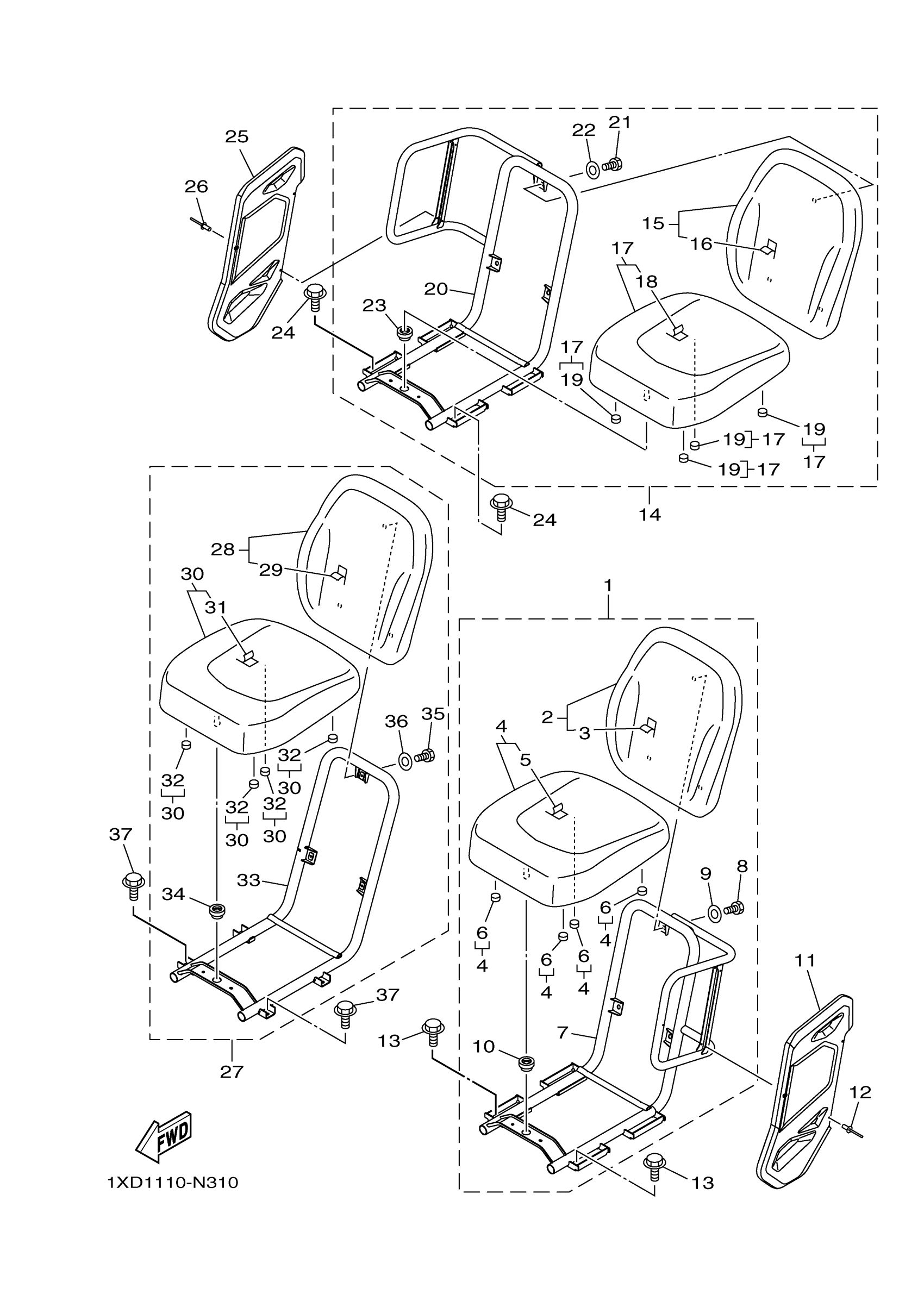

Yamaha YXM700PHEH (VIKING 700 EPS HUNTER) 1XP9 2014 SEAT Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$260.00

2

SEAT BACK ASY

1XD-F4790-01-00

$465.66

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$165.00

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$156.43

6

DAMPER, SEAT

1XD-F4723-00-00

$1.45

7

FRAME, SEAT 1

1XD-F473C-01-00

$290.15

8

. BOLT

90101-06832-00

Unavailable

9

WASHER, PLATE

90201-06078-00

$5.11

10

GROMMET

1XD-F4742-00-00

$3.04

11

COVER,2

1XD-F475X-01-00

$30.57

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

BOLT, FLANGE

95817-08012-00

$3.71

14

SEAT 2

2PG-F7499-02-00

$304.69

15

SEAT BACK ASY

1XD-F4790-01-00

$465.66

16

COVER,SINGLE SEAT

1XD-F4711-01-00

$165.00

17

SEAT ASSY

1XD-F4700-01-00

Unavailable

18

COVER,DOUBLE SEAT

1XD-F4731-01-00

$156.43

19

DAMPER, SEAT

1XD-F4723-00-00

$1.45

20

FRAME, SEAT 2

1XD-F473D-01-00

$249.85

21

. BOLT

90101-06832-00

Unavailable

22

WASHER, PLATE

90201-06078-00

$5.11

23

GROMMET

1XD-F4742-00-00

$3.04

24

BOLT, FLANGE

95817-08012-00

$3.71

25

COVER,2

1XD-F475X-01-00

$30.57

26

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

27

SEAT 3

2PG-F749A-02-00

$320.10

28

SEAT BACK ASY

1XD-F4790-01-00

$465.66

29

COVER,SINGLE SEAT

1XD-F4711-01-00

$165.00

30

SEAT ASSY

1XD-F4700-01-00

Unavailable

31

COVER,DOUBLE SEAT

1XD-F4731-01-00

$156.43

32

DAMPER, SEAT

1XD-F4723-00-00

$1.45

33

DAMPER

1XD-F473Y-01-00

Unavailable

34

GROMMET

1XD-F4742-00-00

$3.04

35

. BOLT

90101-06832-00

Unavailable

36

WASHER, PLATE

90201-06078-00

$5.11

37

BOLT, FLANGE

95817-08012-00

$3.71
