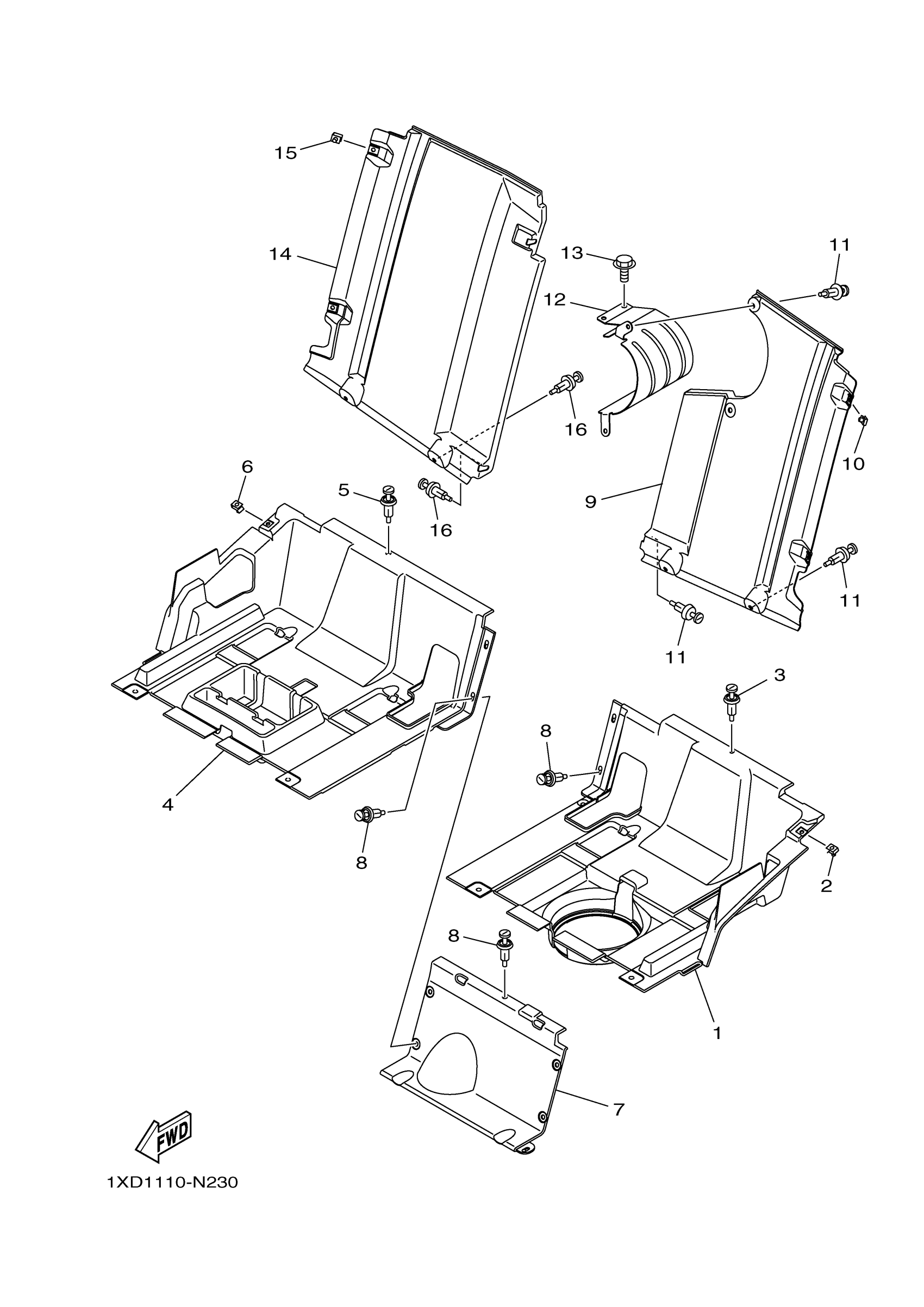

Yamaha YXM700PFL (VIKING EPS) 1XPE 2015 SIDE COVER 2 Diagram

#

Description
Price

1

PLATE, UNDER 1

1XD-F84A3-00-00

$26.42

2

NUT, SPRING

90183-060A6-00

$3.90

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

PLATE, UNDER 2

1XD-F84A4-00-00

$41.67

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

NUT, SPRING

90183-060A6-00

$3.90

7

PLATE, UNDER 3

1XD-F84A5-00-00

$13.67

8

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

9

MUD GUARD 1

1XD-F2327-00-00

$27.97

10

NUT, SPRING

90183-060A6-00

$3.90

11

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

12

PANEL 1

1XD-F172A-00-00

$8.74

13

BOLT, FLANGE

90105-08867-00

$1.47

14

MUD GUARD 2

1XD-F2328-01-00

$25.41

15

NUT, SPRING

90183-060A6-00

$3.90

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
