Description

Price

1

BRACKET,PEDL SUPRT

1XD-F2548-00-KT

Unavailable

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

Unavailable

4

WASHER, PLATE

90201-15018-00

$7.49

5

CIRCLIP (122)

93430-12008-00

$8.49

6

SPRING, TENSION (2X4)

90506-20192-00

$7.49

7

PEDAL, BRAKE

1XD-F7200-00-00

$48.99

8

WASHER, PLATE

90201-15018-00

$7.49

9

CIRCLIP (122)

93430-12008-00

$8.49

10

SPRING, TENSION (2X4)

90506-20192-00

$7.49

11

CABLE, THROTTLE 1

1XD-26311-00-00

$61.99

12

CLAMP(JN6)

90464-40825-00

$3.05

13

CLAMP

5B4-F1338-00-00

$3.33

14

CLAMP

90464-20804-00

Unavailable

15

PARKING LEVER ASSY

BDW-F5690-00-00

$119.99

16

. SWITCH COMP

5UG-H251S-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

WIRE, BRAKE 1

1XD-26341-02-00

Unavailable

19

CLAMP

90464-12830-00

Unavailable

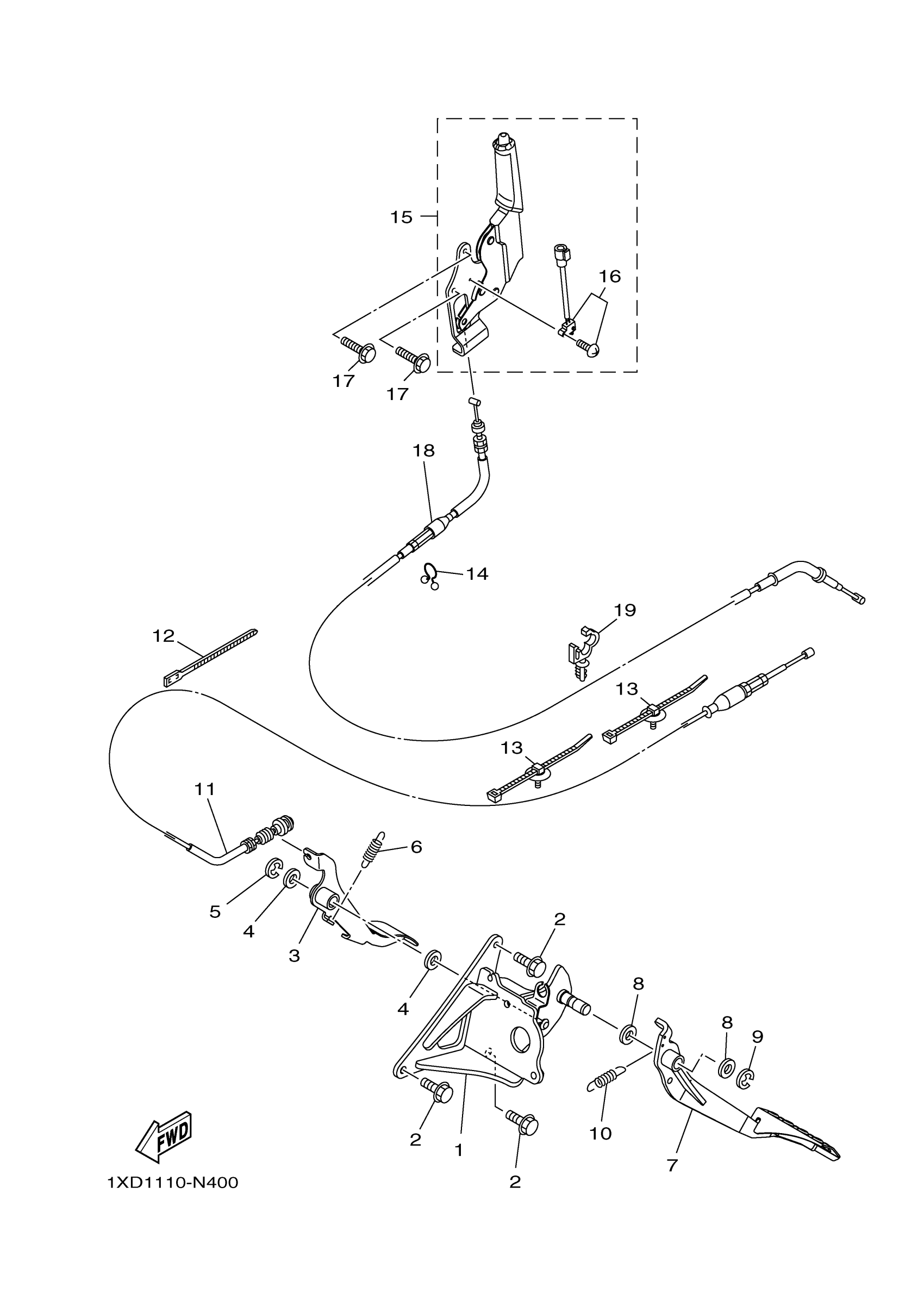

Yamaha YXM700PER (VIKING 700 EPS) 1XPC 2014 PEDAL WIRE Diagram

BRACKET,PEDL SUPRT

BOLT, FLANGE(JN5)

ACCEL PEDAL ASSY

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

PEDAL, BRAKE

WASHER, PLATE

CIRCLIP (122)

SPRING, TENSION (2X4)

CABLE, THROTTLE 1

CLAMP(JN6)

CLAMP

CLAMP

PARKING LEVER ASSY

. SWITCH COMP

BOLT, FLANGE

WIRE, BRAKE 1

CLAMP
