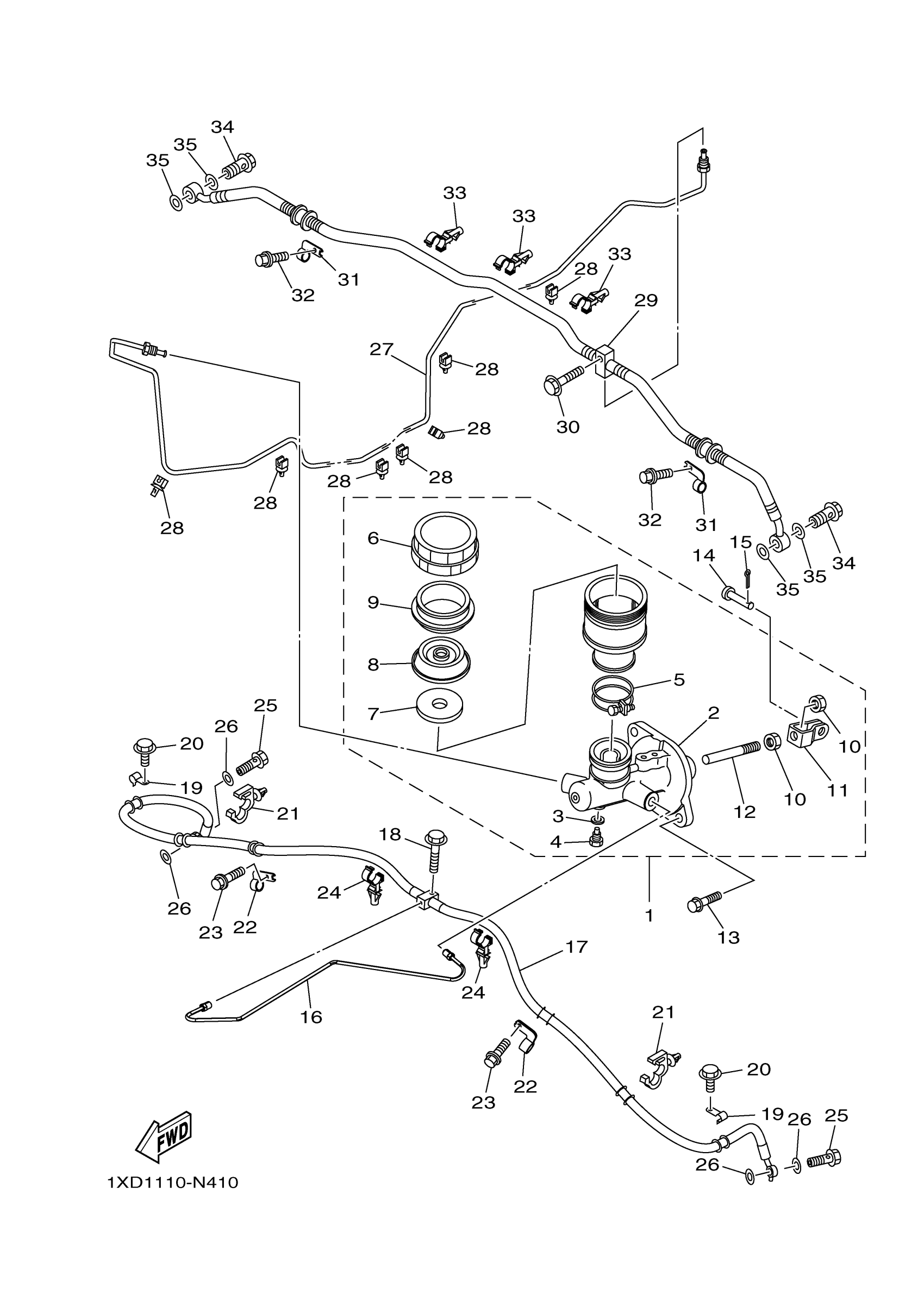

Yamaha YXM700PER (VIKING 700 EPS) 1XPC 2014 MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

5B4-2583T-00-00

Unavailable

2

CYLINDER KIT, MASTER

5UG-W0042-00-00

$97.99

3

WASHER, OIL BOLT

5UG-25878-00-00

Unavailable

4

BOLT, OIL 1

5UG-25877-00-00

$0.99

5

BAND

5UG-25719-00-00

$6.99

6

CAP, RESERVOIR

5UG-25852-00-00

$17.49

7

FLOAT, RESERVOIR

5UG-25853-00-00

$10.99

8

DIAPHRAGM, RESERVOIR

5UG-25854-00-00

$9.99

9

BUSH,DIAPHRAGM

5UG-25855-00-00

$5.49

10

NUT, HEXAGON SMALL

95317-08700-00

$9.49

11

JOINT

2YK-27222-00-00

$21.99

12

PUSH ROD COMP.

5UG-25880-00-00

Unavailable

13

BOLT, FLANGE

90105-08129-00

$4.88

14

PIN, CLEVIS

90240-08005-00

$8.49

15

PIN, COTTER

91490-20025-00

$1.99

16

PIPE, BRAKE 2

1XD-F5882-01-00

Unavailable

17

HOSE, BRAKE 1

1XD-F5872-02-00

Unavailable

18

BOLT, FLANGE

95817-06025-00

Unavailable

19

HOLDER, BRAKE HOSE 1

5KM-25875-00-00

Unavailable

20

BOLT, FLANGE

95812-06010-00

Unavailable

21

CLAMP

90464-18002-00

Unavailable

22

HOLDER, BRAKE HOSE 2

3B4-25876-10-00

Unavailable

23

BOLT, FLANGE

95812-06010-00

Unavailable

24

CLAMP

90464-16012-00

Unavailable

25

BOLT, UNION

90401-10015-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

PIPE, BRAKE

1XD-F5871-01-00

Unavailable

28

CLAMP 1

5KM-81677-00-00

Unavailable

29

HOSE, BRAKE 2

1XD-F5873-02-00

Unavailable

30

BOLT, FLANGE

90105-06833-00

Unavailable

31

HOLDER, BRAKE HOSE 2

3B4-25876-10-00

Unavailable

32

BOLT, FLANGE

95812-06010-00

Unavailable

33

CLAMP

90464-16012-00

Unavailable

34

BOLT, UNION

90401-10015-00

Unavailable

35

WASHER, PLATE(481)

90201-10118-00

Unavailable
