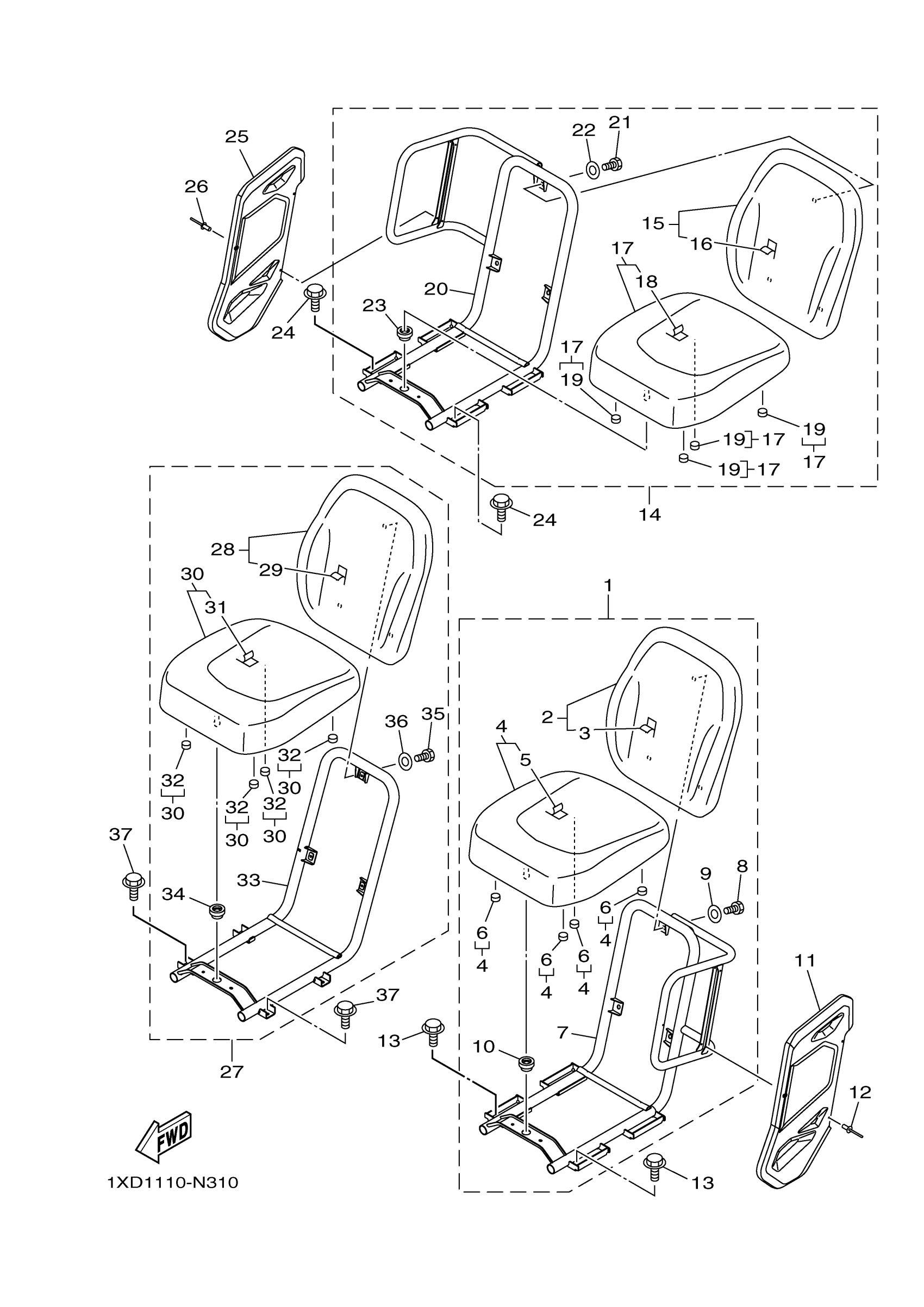

Yamaha YXM700PEL (VIKING 700 EPS) 1XP1 2014 SEAT Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$263.94

2

SEAT BACK ASY

1XD-F4790-01-00

$472.71

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

6

DAMPER, SEAT

1XD-F4723-00-00

$1.47

7

FRAME, SEAT 1

1XD-F473C-01-00

$294.55

8

. BOLT

90101-06832-00

Unavailable

9

WASHER, PLATE

90201-06078-00

$5.11

10

GROMMET

1XD-F4742-00-00

$2.96

11

COVER,2

1XD-F475X-01-00

$31.03

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

BOLT, FLANGE

95817-08012-00

$3.71

14

SEAT 2

2PG-F7499-02-00

$309.30

15

SEAT BACK ASY

1XD-F4790-01-00

$472.71

16

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

17

SEAT ASSY

1XD-F4700-01-00

Unavailable

18

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

19

DAMPER, SEAT

1XD-F4723-00-00

$1.47

20

FRAME, SEAT 2

1XD-F473D-01-00

$253.64

21

. BOLT

90101-06832-00

Unavailable

22

WASHER, PLATE

90201-06078-00

$5.11

23

GROMMET

1XD-F4742-00-00

$2.96

24

BOLT, FLANGE

95817-08012-00

$3.71

25

COVER,2

1XD-F475X-01-00

$31.03

26

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

27

SEAT 3

2PG-F749A-02-00

$324.95

28

SEAT BACK ASY

1XD-F4790-01-00

$472.71

29

COVER,SINGLE SEAT

1XD-F4711-01-00

$167.50

30

SEAT ASSY

1XD-F4700-01-00

Unavailable

31

COVER,DOUBLE SEAT

1XD-F4731-01-00

$158.80

32

DAMPER, SEAT

1XD-F4723-00-00

$1.47

33

DAMPER

1XD-F473Y-01-00

Unavailable

34

GROMMET

1XD-F4742-00-00

$2.96

35

. BOLT

90101-06832-00

Unavailable

36

WASHER, PLATE

90201-06078-00

$5.11

37

BOLT, FLANGE

95817-08012-00

$3.71
