- YXM700PEL (VIKING 700 EPS) 1XP1 2014
REAR BRAKE CALIPER 2

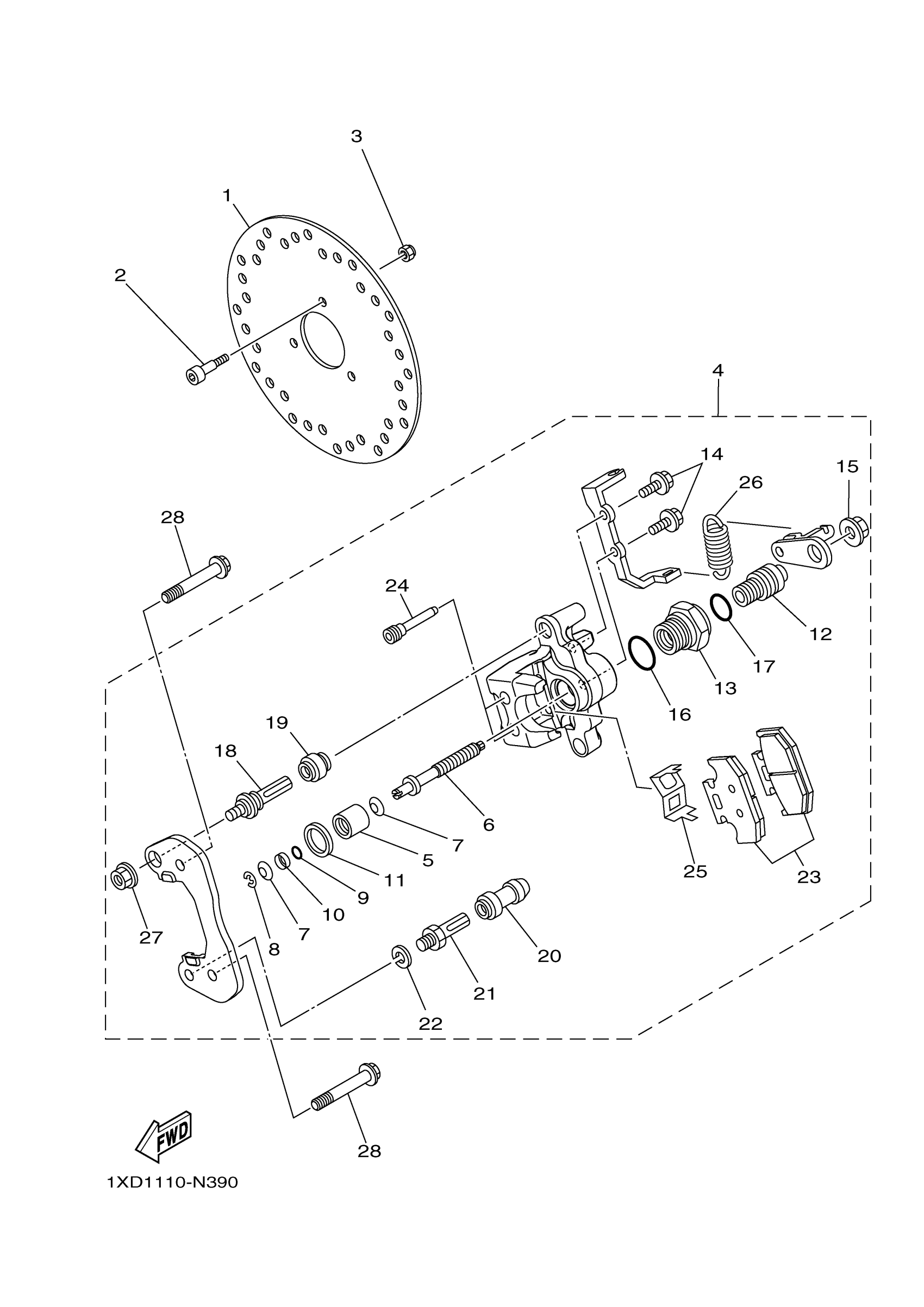

Yamaha YXM700PEL (VIKING 700 EPS) 1XP1 2014 REAR BRAKE CALIPER 2 Diagram
#
Description
Price
1
DISC, BRAKE
1XD-F5711-02-00
$40.99
2
BOLT, HEXAGON SOCKET HEAD
90110-06228-00
$8.49
3
NUT, SELF-LOCKING
95617-06100-00
$8.49
4
PARKING BRAKE ASSY
1XD-25905-02-00
$298.99
5
PISTON, CALIPER
5B4-25814-10-00
Unavailable
6
PUSH ROD COMP.
5B4-25880-00-00
$28.99
7
WASHER, CONICAL SPRING
5B4-2581R-00-00
$6.99
8
CIRCLIP
5B4-25415-00-00
$6.99
9
O-RING
5B4-25976-00-00
$2.29
10
RETAINER
5B4-25913-00-00
$8.99
11
RUBBER, BUSHING
5B4-25975-00-00
Unavailable
12
SHAFT L
5B4-25978-00-00
$38.99
13
NUT
5B4-25973-00-00
$55.99
14
BOLT, FITTING
5B4-25833-00-00
$2.34
15
NUT
1UY-25973-51-00
$6.99
16
O-RING
5B4-25976-10-00
Unavailable
17
O-RING
5B4-25976-20-00
Unavailable
18
BOLT
3JD-25926-00-00
Unavailable
19
BOOT, CALIPER
3JD-25917-00-00
Unavailable
20
BOOT 2
1UY-25937-51-00
Unavailable
21
BOLT
1UY-25926-51-00
Unavailable
22
WASHER, SPRING
1UY-25938-51-00
Unavailable
23
BRAKE PAD KIT 2
5B4-25806-01-00
Unavailable
24
PIN, PAD
5B4-25924-00-00
Unavailable
25
SUPPORT, PAD
5B4-25919-00-00
Unavailable
26
SPRING, RETURN
5B4-25977-00-00
Unavailable
27
NUT
5B4-2585F-00-00
Unavailable
28
BOLT, WASHER BASED(1KT)
90105-10402-00
Unavailable
