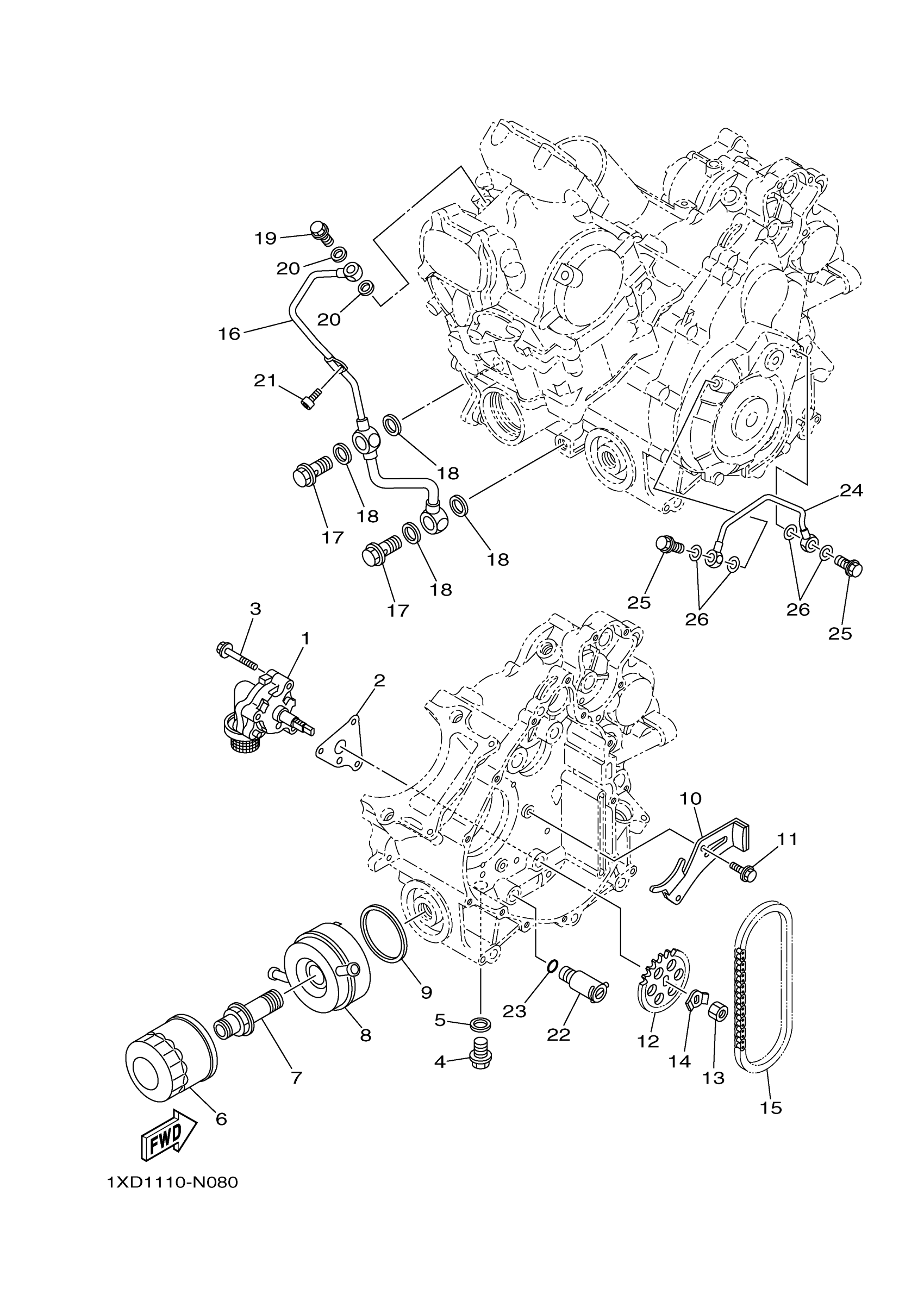

Yamaha YXM700DHFH (VIKING HUNTER) 1XDA 2015 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3B4-13300-00-00

$191.99

2

GASKET, PUMP COVER

3B4-13329-00-00

$6.99

3

BOLT, FLANGE

95022-06040-00

$3.45

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

5

GASKET

214-11198-01-00

$3.17

6

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

7

BOLT, UNION

90401-20009-00

Unavailable

8

OIL COOLER ASSY

1XD-13470-00-00

$246.99

9

GASKET

1XD-13475-00-00

$9.99

10

GUIDE, STOPPER 3

3B4-12221-01-00

$15.49

11

BOLT, FLANGE

95022-06020-00

$3.62

12

SPROCKET, DRIVEN

3B4-13355-00-00

$37.99

13

NUT(624)

95380-10600-00

$3.50

14

WASHER, LOCK

90215-10008-00

$3.35

15

CHAIN

94580-31074-00

$25.99

16

PIPE, DELIVERY 2

3B4-13171-00-00

Unavailable

17

BOLT, UNION(1YW)

90401-14118-00

Unavailable

18

GASKET 256131670000

90430-14043-00

Unavailable

19

BOLT, UNION

90401-10024-00

Unavailable

20

GASKET

90430-10188-00

Unavailable

21

BOLT,SOCKET

91317-06012-00

Unavailable

22

RELIEF VALVE ASSY

25G-13490-00-00

Unavailable

23

O-RING (611)

93210-10096-00

Unavailable

24

PIPE, DELIVERY 1

28P-13161-00-00

Unavailable

25

BOLT, UNION

90401-08006-00

Unavailable

26

GASKET

90430-08119-00

Unavailable
