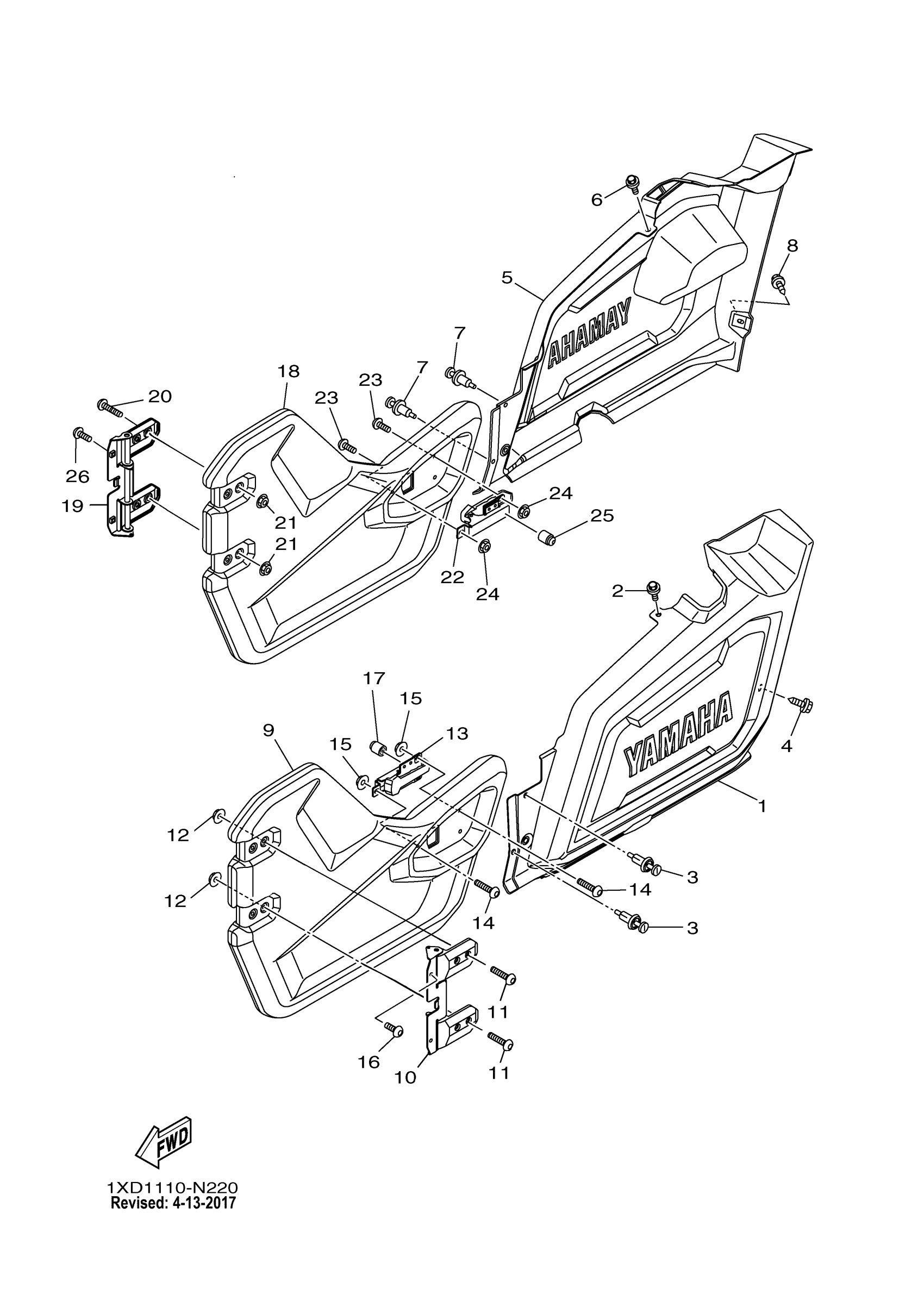

Yamaha YXM700DHEH (VIKING 700 HUNTER) 1XD4 2014 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 2
1XD-F1721-00-00
$30.99
2
BOLT, WITH WASHER
90119-06226-00
$8.49
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
BOLT, WITH WASHER
90119-06226-00
$8.49
5
COVER, SIDE 3
1XD-F1731-00-00
$28.99
6
BOLT, WITH WASHER
90119-06226-00
$8.49
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
PNL., DOOR FR. LH.
1XD-K8557-00-00
Unavailable
10
HINGE ASSY
1XD-F4772-00-00
$45.99
11
BOLT
90109-06897-00
$0.90
12
NUT, U FLANGE
95604-06200-00
$8.49
13
BODY,LATCH 1
1XD-K7171-10-00
Unavailable
14
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
15
NUT, U FLANGE
95604-06200-00
$8.49
16
BOLT 2
5B4-F1722-00-00
Unavailable
17
PAD
1XD-F8378-00-00
Unavailable
18
PNL., DOOR FR. LH.
1XD-K8557-00-00
Unavailable
19
HINGE ASSY
1XD-F4772-00-00
$45.99
20
BOLT
90109-06897-00
$0.90
21
NUT, U FLANGE
95604-06200-00
$8.49
22
BODY,LATCH 1
1XD-K7171-10-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
24
NUT, U FLANGE
95604-06200-00
$8.49
25
PAD
1XD-F8378-00-00
Unavailable
26
BOLT 2
5B4-F1722-00-00
Unavailable
