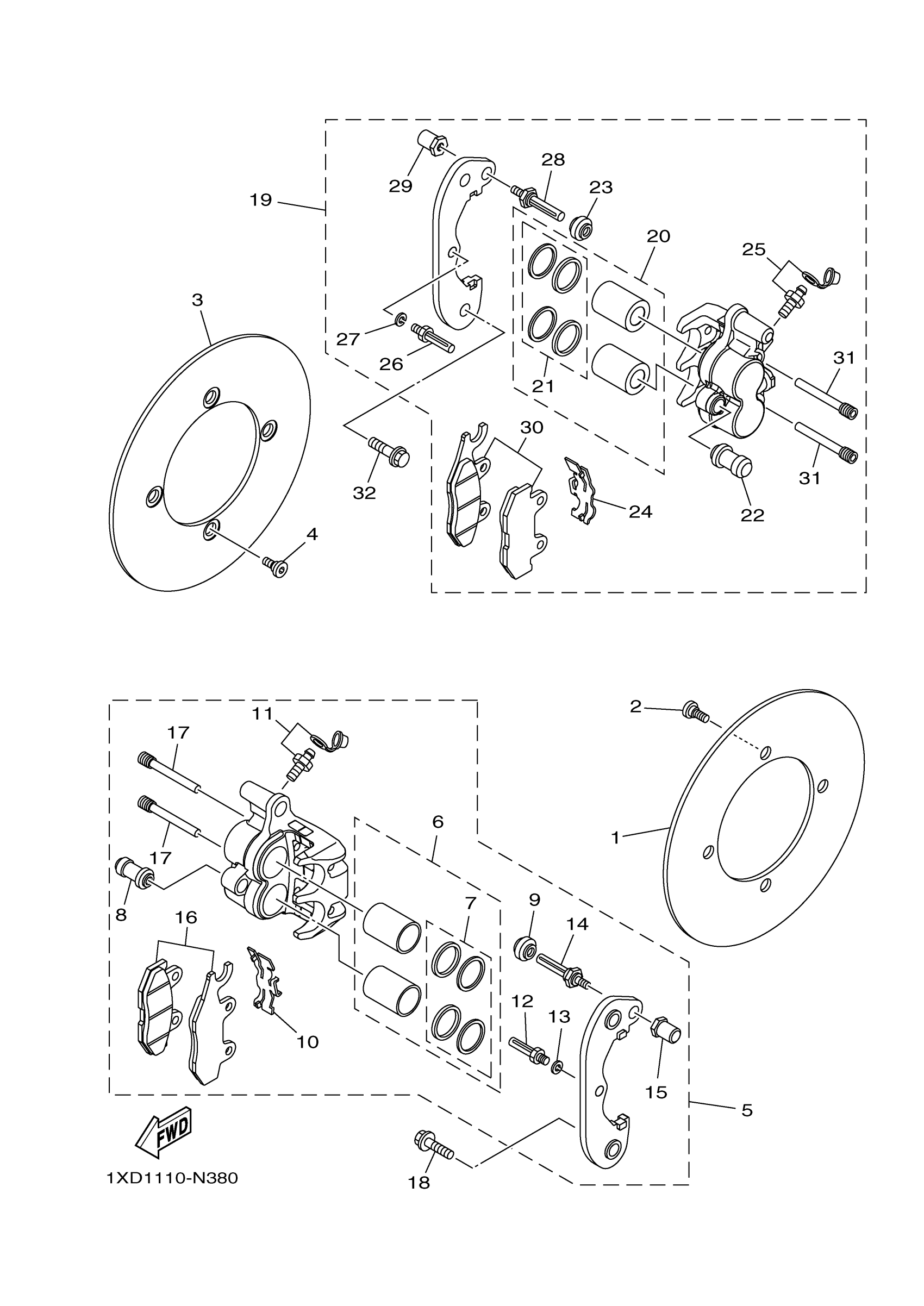

Yamaha YXM700DHEH (VIKING 700 HUNTER) 1XD4 2014 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

4

BOLT

90109-08087-00

$8.49

5

CALIPER ASSY, REAR

1XD-2580V-01-00

$324.99

6

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

7

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

8

BOOT 2

1UY-25937-51-00

$14.49

9

BOOT, CALIPER

3JD-25917-00-00

$8.99

10

SPRING, PAD

3LD-25934-01-00

$30.99

11

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

12

BOLT

1UY-25926-51-00

$4.47

13

WASHER, SPRING

1UY-25938-51-00

Unavailable

14

BOLT

3JD-25926-00-00

$7.99

15

NUT

3JD-25961-00-00

$8.99

16

BRAKE PAD KIT 2

1XD-25806-01-00

Unavailable

17

PIN, PAD

3FV-25924-00-00

Unavailable

18

BOLT, FLANGE

90105-10265-00

Unavailable

19

CALIPER ASSY, REAR

1XD-2580W-01-00

Unavailable

20

PISTON ASSY, CALIPER

3LD-25802-00-00

$53.99

21

CALIPER SEAL KIT

3JD-25803-00-00

$21.99

22

BOOT 2

1UY-25937-51-00

$14.49

23

BOOT, CALIPER

3JD-25917-00-00

$8.99

24

SPRING, PAD

3LD-25934-01-00

$30.99

25

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

26

BOLT

1UY-25926-51-00

$4.47

27

WASHER, SPRING

1UY-25938-51-00

Unavailable

28

BOLT

3JD-25926-00-00

$7.99

29

NUT

3JD-25961-00-00

$8.99

30

BRAKE PAD KIT 2

1XD-25806-11-00

Unavailable

31

PIN, PAD

3FV-25924-00-00

Unavailable

32

BOLT, FLANGE

90105-10265-00

Unavailable
