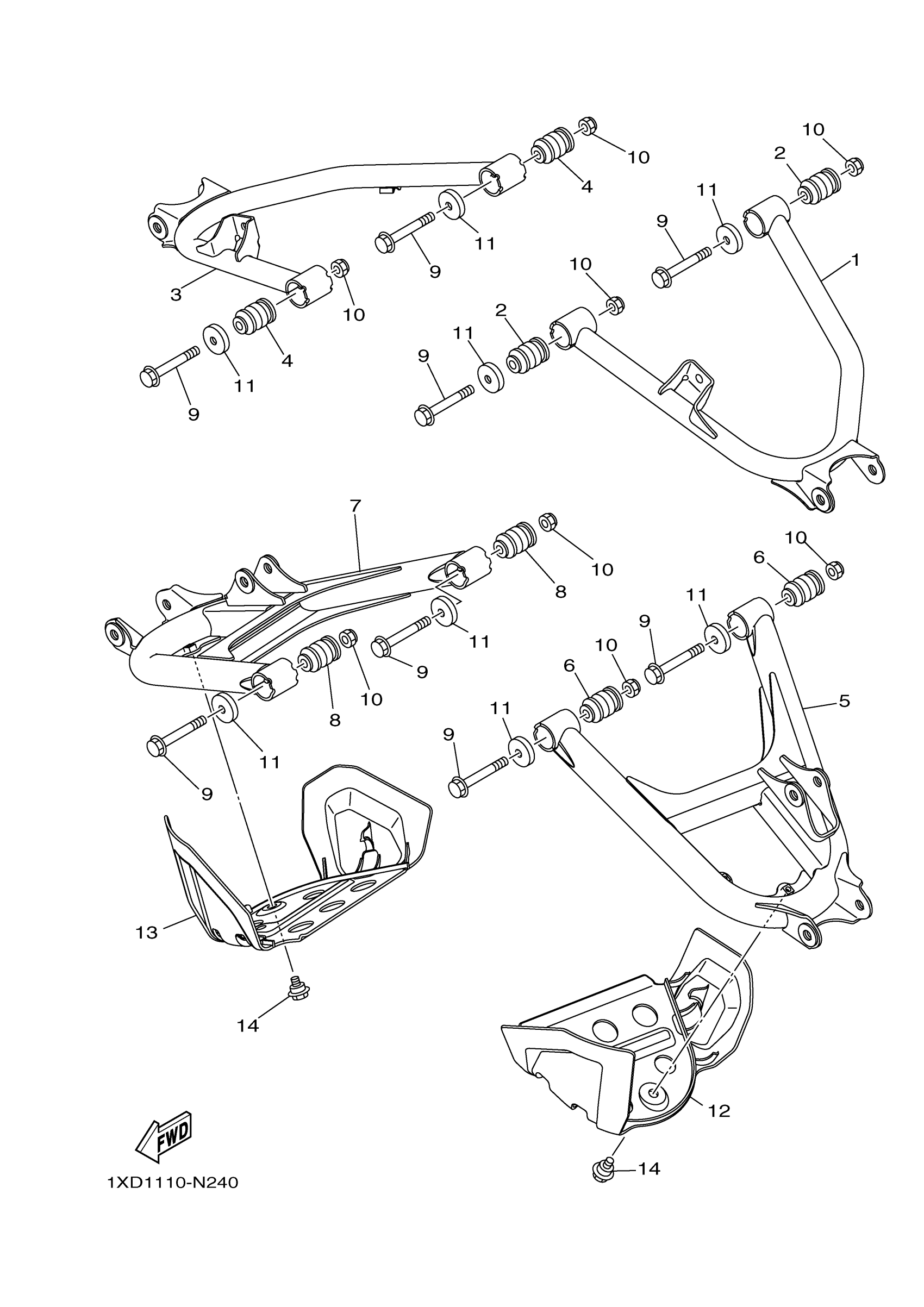

Yamaha YXM700DHEH (VIKING 700 HUNTER) 1XD4 2014 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

1XD-F2171-00-00

$49.99

2

BUSH

1HP-F3526-00-00

$22.99

3

ARM, REAR 2

1XD-F2172-00-00

$81.99

4

BUSH

1HP-F3526-00-00

$22.99

5

ARM 1

1XD-F217M-01-00

Unavailable

6

BUSH

1HP-F3526-00-00

$22.99

7

ARM 2

1XD-F217N-01-00

Unavailable

8

BUSH

1HP-F3526-00-00

$22.99

9

BOLT, FLANGE

90105-10267-00

$9.49

10

NUT, SELF-LOCKING

90185-10012-00

$9.49

11

WASHER

5KM-22149-10-00

$7.99

12

COVER, THRUST 1

1XD-F2128-01-00

Unavailable

13

COVER, THRUST 2

1XD-F2129-01-00

$10.99

14

BOLT

90109-06220-00

$10.49
