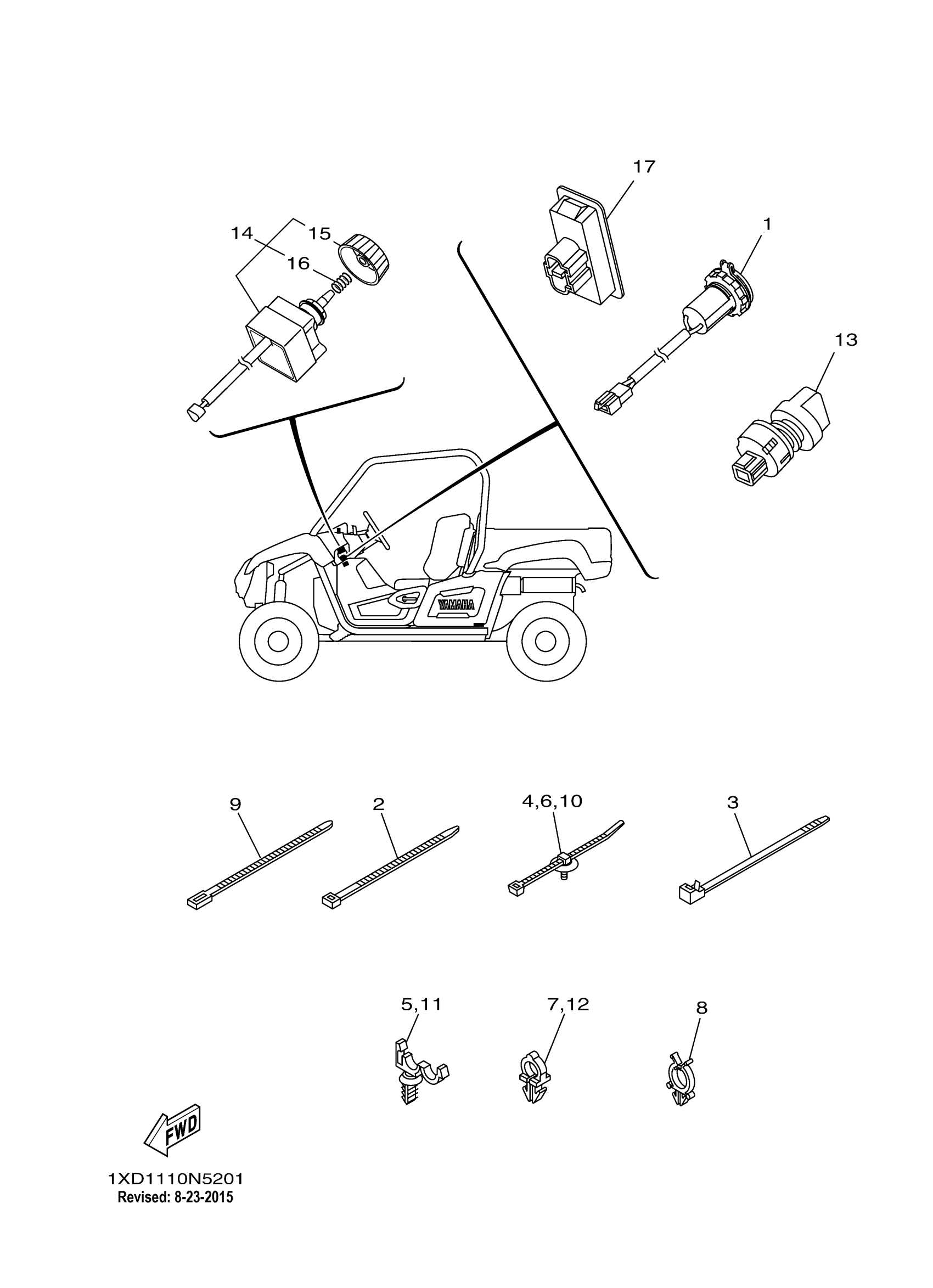

Yamaha YXM700DHEH (VIKING 700 HUNTER) 1XD4 2014 ELECTRICAL 2 Diagram

#

Description
Price

1

TERMINAL COMP.

1HP-H254B-10-00

$18.99

2

CLAMP

90464-48800-00

Unavailable

3

CLAMP

90464-51800-00

$14.99

4

CLAMP

5B4-F1338-00-00

$3.33

5

CLAMP

90464-12830-00

$1.49

6

CLAMP

1NS-F1338-00-00

$3.33

7

CLAMP

90464-12830-00

$1.49

8

CLAMP

90464-25826-00

Unavailable

9

CLAMP(JN6)

90464-31827-00

$3.40

10

CLAMP

5B4-F1338-00-00

$3.33

11

CLAMP

90464-12830-00

$1.49

12

CLAMP

90464-12830-00

$1.49

13

SWITCH, LAMP

5UG-H2526-00-00

$53.99

14

SWITCH, SELECT

1XD-87280-01-00

Unavailable

15

. KNOB, SELECT SWITCH

1XD-87285-00

Unavailable

16

. SPRING

1XD-87288-00

Unavailable

17

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable
