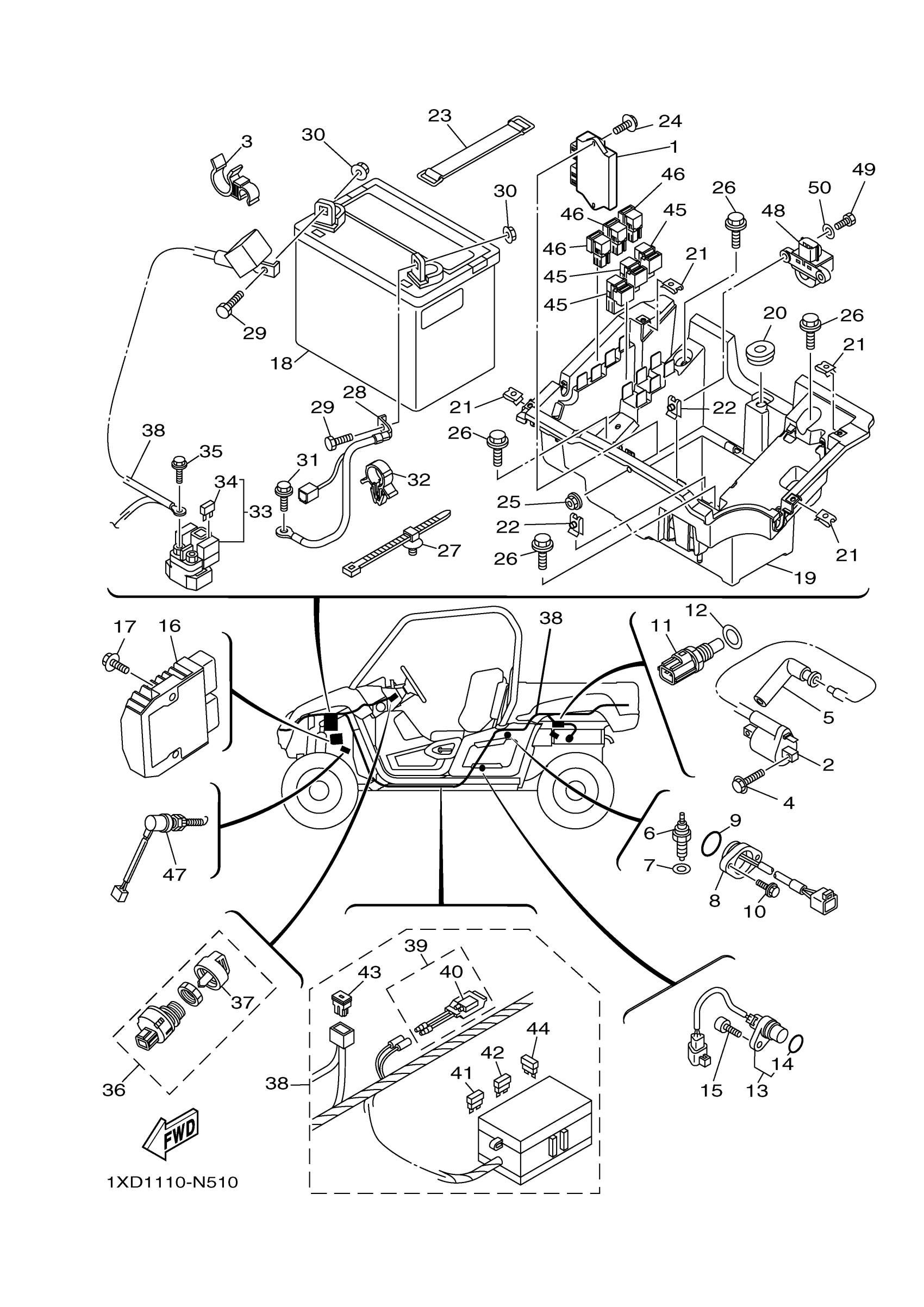

Yamaha YXM700DHEH (VIKING 700 HUNTER) 1XD4 2014 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

1XD-8591A-00-00

Unavailable

2

IGNITION COIL ASSY

5YU-H2310-14-00

Unavailable

3

CLAMP

90464-18016-00

$2.55

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

PLUG CAP ASSY

5B4-82370-00-00

$65.99

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

NEUTRAL SWITCH ASSY

1XD-82540-02-00

$57.99

9

O-RING (371)

93210-29196-00

$8.49

10

BOLT, WITH WASHER

90119-06137-00

$8.49

11

THERMOSENSOR ASSY

5YP-85790-00-00

$64.99

12

GASKET(2GH)

90430-12202-00

$9.49

13

SENSOR, SPEED

3B4-83755-01-00

$132.99

14

O-RING

4D9-81168-00-00

$6.99

15

BOLT,SOCKET HEAD

91314-06020-00

$1.49

16

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

Unavailable

17

BOLT, FLANGE

90105-06833-00

Unavailable

18

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

19

BOX, BATTERY 1

1XD-H212B-00-00

Unavailable

20

GROMMET(4DN)

90480-01558-00

Unavailable

21

NUT, SPRING

90183-060A6-00

Unavailable

22

NUT, SPRING

90183-05008-00

Unavailable

23

BAND, BATTERY

22F-82131-00-00

Unavailable

24

BOLT, FLANGE

95817-06020-00

Unavailable

25

NUT, FLANGE

95702-06500-00

Unavailable

26

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

27

CLAMP

1NS-F1338-00-00

Unavailable

28

WIRE, MINUS LEAD

1XD-H2116-00-00

Unavailable

29

BOLT(6TD)

97080-08020-00

Unavailable

30

NUT

90179-08015-00

Unavailable

31

BOLT, FLANGE

95812-06014-00

Unavailable

32

CLAMP(3XV)

90464-15157-00

Unavailable

33

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

34

FUSE (10A)

42X-82151-00-00

Unavailable

35

BOLT, FLANGE

95022-06008-00

Unavailable

36

MAIN SWITCH ASSY

1XD-H2510-11-00

Unavailable

37

CAP, KEY

5UG-H2579-00-00

Unavailable

38

WIRE HARNESS ASSY

1XD-82590-00-00

Unavailable

39

CIRCUIT BREAKER ASSY

5B4-82180-00-00

Unavailable

40

THERMO SWITCH ASSY

5B4-82560-00-00

Unavailable

41

FUSE (15A)

67F-82151-50-00

Unavailable

42

. FUSE (10A)

67F-82151-40-00

Unavailable

43

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

44

FUSE (25A-BL)

5JJ-82151-70-00

Unavailable

45

RELAY ASSY

5DM-81950-01-00

Unavailable

46

RELAY ASSY (8FP-01)

8FP-81950-01-00

Unavailable

47

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

48

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

49

BOLT(6A1)

97095-05016-00

Unavailable

50

WASHER, PLAIN (646)

92990-05600-00

Unavailable
