- YXM700DFR (VIKING) 1XDC1 2015
MIDDLE DRIVE GEAR

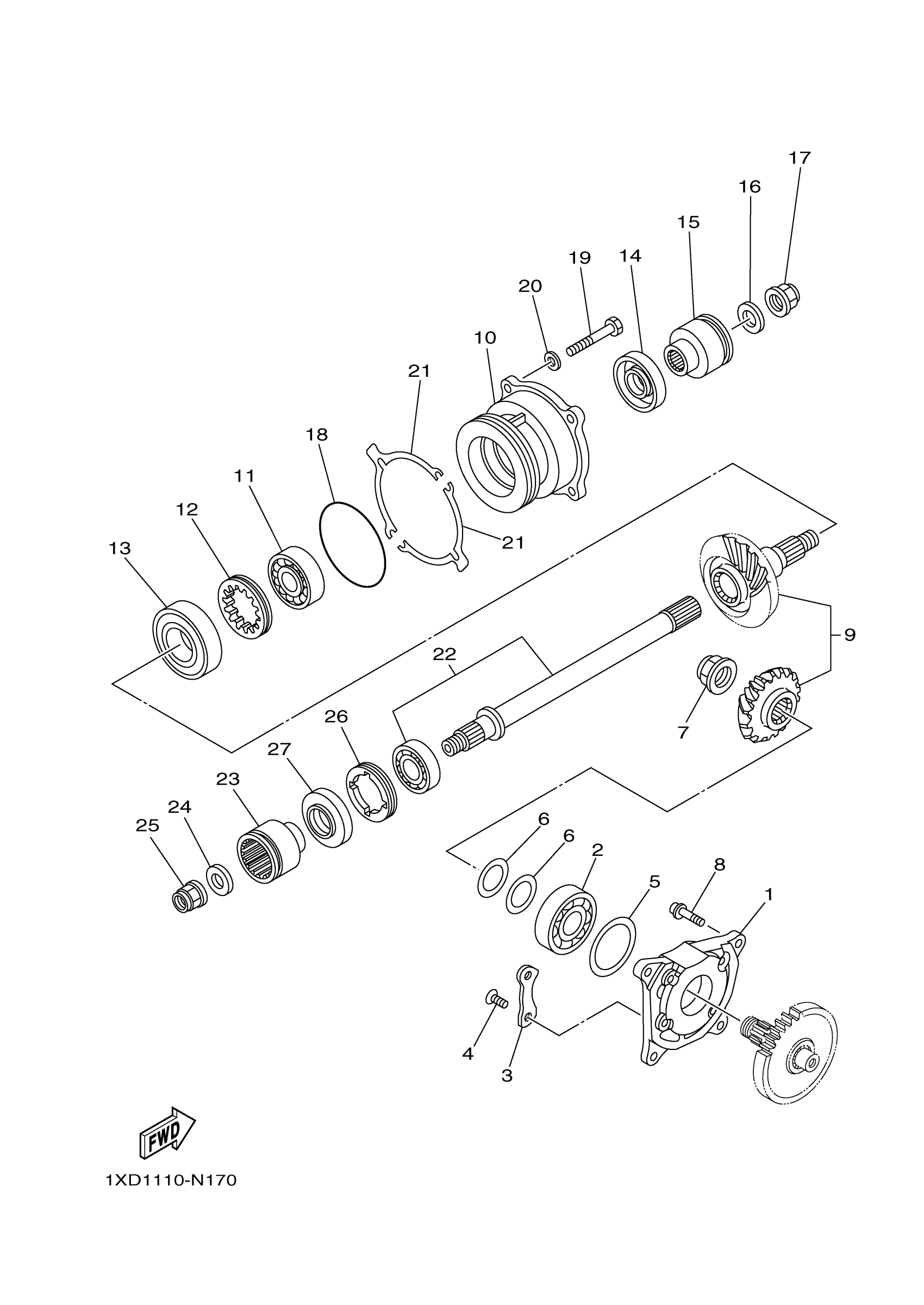

Yamaha YXM700DFR (VIKING) 1XDC1 2015 MIDDLE DRIVE GEAR Diagram
#
1
HOUSING, BEARING
5B4-17521-00-00
$113.99
2
BEARING
93306-30584-00
$61.99
3
PLATE, BEARING COVER
11H-15383-02-00
$14.49
4
SCREW
90149-08013-00
$8.49
5
WASHER, PLATE(6K4)
90201-46M28-00
$14.99
6
SHIM, PINION (0.5T)
5KM-17531-50-00
$7.99
6
SHIM, PINION (0.55T)
5KM-17531-60-00
$4.42
6
SHIM, PINION (0.6T)
5KM-17531-70-00
$5.49
6
SHIM, PINION (0.7T)
5KM-17531-80-00
$4.52
6
SHIM, PINION (0.8T)
5KM-17531-90-00
$4.63
6
SHIM, PINION (0.9T)
5KM-17531-A0-00
$4.63
6
SHIM, PINION (1.0T)
5KM-17531-B0-00
$4.94
7
NUT
90179-22013-00
$26.99
8
BOLT, HEXAGON SOCKET HEAD
90110-08092-00
$5.60
9
PINION SET
2PG-17530-01-00
$423.99
10
HOUSING, BEARING
3B4-17551-00-00
Unavailable
11
BEARING(1LX)
93306-37204-00
Unavailable
12
NUT
90179-60001-00
Unavailable
13
BEARING
93306-20654-00
Unavailable
14
OIL SEAL
93102-30010-00
Unavailable
15
COUPLING
3B4-17832-10-00
Unavailable
16
WASHER, PLATE(3JP)
90201-166R5-00
Unavailable
17
Nut
90179-16006-00
Unavailable
18
O-RING (14X)
93210-78544-00
Unavailable
19
BOLT, HEXAGON
97017-08030-00
Unavailable
20
.. WASHER, PLATE
92990-08600-00
Unavailable
21
SHIM, PINION (0.1T)
3B4-17531-00-00
Unavailable
21
SHIM, PINION (0.15T)
3B4-17531-10-00
Unavailable
21
SHIM, PINION (0.2T)
3B4-17531-20-00
Unavailable
21
SHIM, PINION (0.3T)
3B4-17531-30-00
Unavailable
21
SHIM, PINION (0.4T)
3B4-17531-40-00
Unavailable
21
SHIM, PINION (0.5T)
3B4-17531-50-00
Unavailable
21
SHIM, PINION (0.6T)
3B4-17531-60-00
Unavailable
22
MIDDLE DRIVEN SHAFT ASSY
1XD-1755A-00-00
Unavailable
23
COUPLING
3B4-17832-10-00
Unavailable
24
WASHER, PLATE(3JP)
90201-166R5-00
Unavailable
25
Nut
90179-16006-00
Unavailable
26
NUT(4KB)
90179-55660-00
Unavailable
27
OIL SEAL
93102-30010-00
Unavailable
