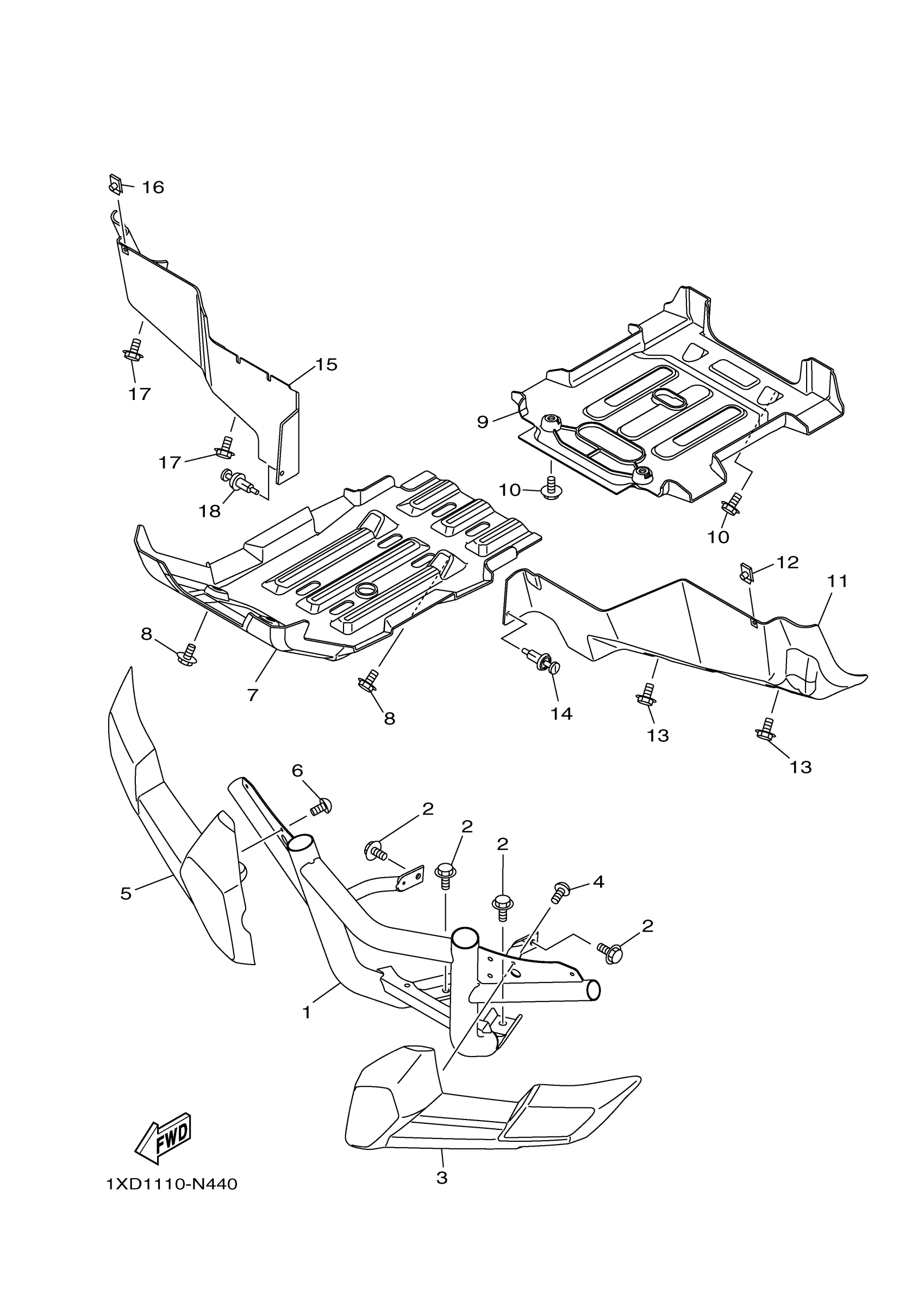

Yamaha YXM700DFL (VIKING) 1XD8 2015 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1XD-F845N-01-00

$220.39

2

BOLT, FLANGE

95812-10016-00

$7.70

3

COVER 1

1XD-F842M-02-00

$39.93

4

SCREW, TAPPING

90167-06800-00

$0.71

5

COVER 2

1XD-F842N-01-00

$38.57

6

SCREW, TAPPING

90167-06800-00

$0.71

7

COVER, LOWER

1XD-F8385-02-00

Unavailable

8

BOLT

90109-06202-00

$2.36

9

COVER, UNDER 2

1XD-F8395-00-00

$111.01

10

BOLT

90109-06202-00

$2.36

11

GUARD 1

1XD-F2361-00-00

$22.62

12

NUT, SPRING

90183-060A6-00

$3.90

13

BOLT

90109-06202-00

$2.36

14

RIVET

90269-06800-00

$1.38

15

GUARD 2

1XD-F2362-00-00

$45.38

16

NUT, SPRING

90183-060A6-00

$3.90

17

BOLT

90109-06202-00

$2.36

18

RIVET

90269-06800-00

$1.38
