2015 Yamaha Viking (YXM700DFL) Frame Diagram

← All diagrams

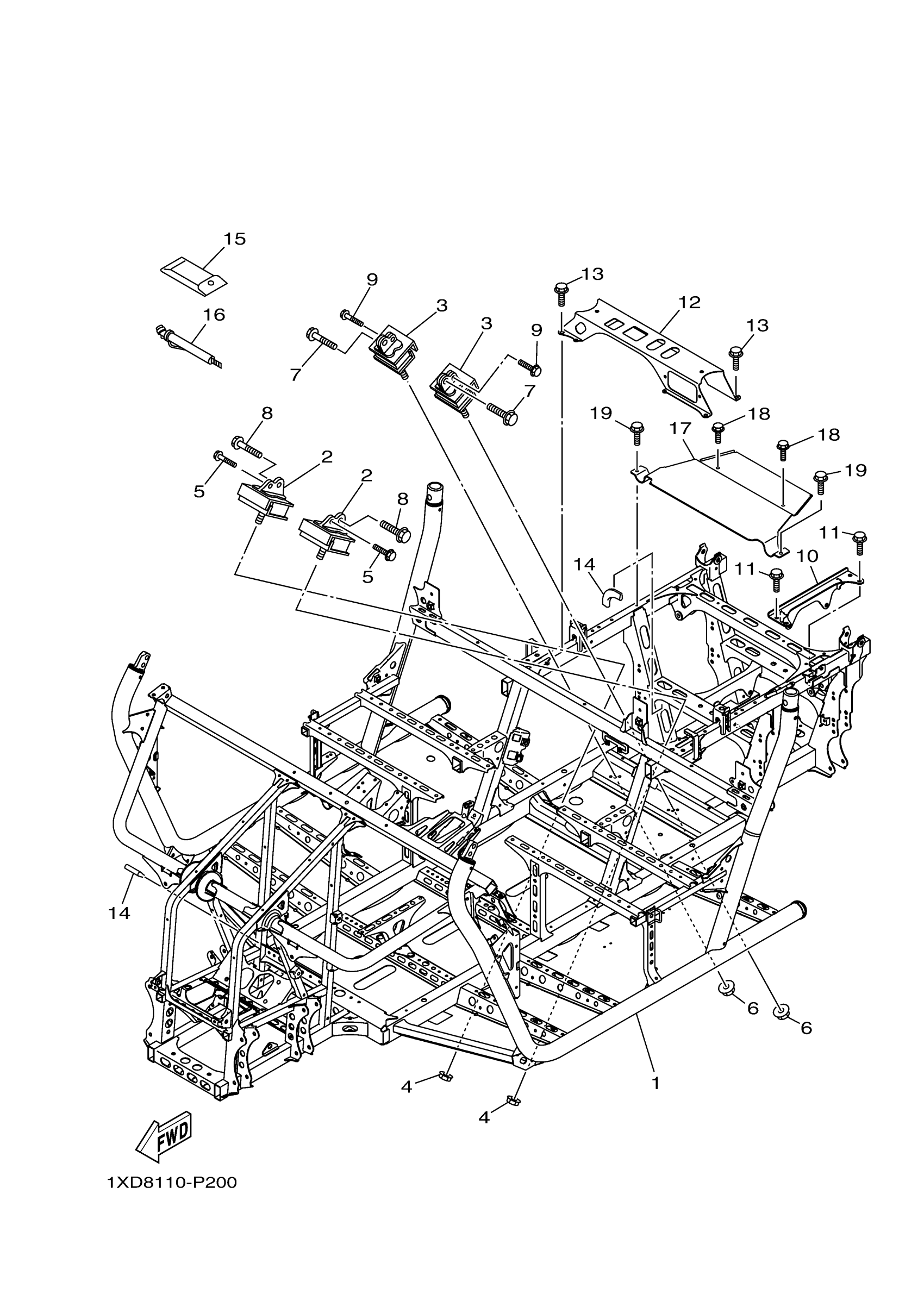

Find the part on the Frame diagram for your 2015 Yamaha Viking (YXM700DFL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Viking (YXM700DFL) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

1XD-F1110-11-00

1
Out of stock

2

DAMPER, RUBBER 1

5B4-21485-01-00

1
Out of stock

3

DAMPER, RUBBER 1

5B4-21485-01-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

5

BOLT, FLANGE(2UJ)

95024-06016-00

1
Out of stock

6

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

7

BOLT, FLANGE

95812-10035-00

1
Out of stock

8

BOLT, FLANGE

90105-10314-00

—
Out of stock

9

BOLT, FLANGE(2UJ)

95024-06016-00

1
Out of stock

10

STAY, SUPPORT 1

2PG-F831T-00-00

1
Out of stock

11

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

12

PROTECTOR 1

1XD-F834V-00-00

1
Out of stock

13

BOLT, FLANGE

90105-08867-00

1
Out of stock

14

MOLE 3

4XY-28347-00-00

—
Out of stock

15

TOOL KIT

5B4-F8100-00-00

1
Out of stock

16

GAUGE, AIR

1XD-F811A-00-00

—
Out of stock

17

INSULATOR, HEAT

1XD-F2898-10-00

1
Out of stock

18

BOLT, FLANGE

90105-08867-00

1
Out of stock

19

BOLT, FLANGE

90105-08867-00

1
Out of stock
