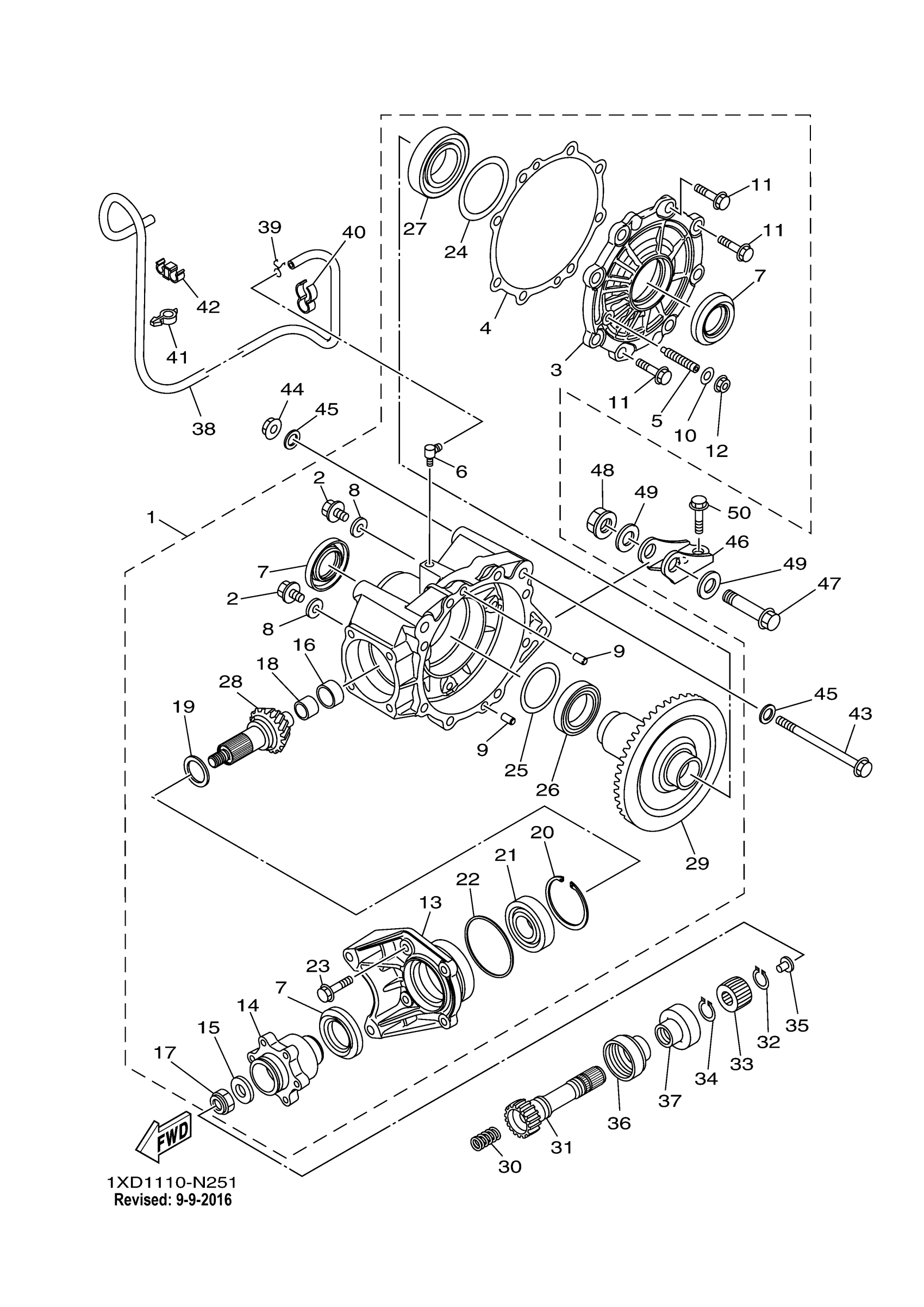

Yamaha YXM700DFL (VIKING) 1XD8 2015 DRIVE SHAFT Diagram

#

Description
Price

1

RR AXL GR CASE ASY

1XD-G6101-12-00

$495.79

2

BOLT

1XD-E2228-00-00

$4.02

3

HOUSING, BEARING

1XD-G6152-00-00

$92.39

4

GSKT., CASE

1XD-G631A-00-00

$9.62

5

. STOPPER, RING GEAR

1CT-G6156-00-00

$10.92

6

. BREATHER

1CT-E5371-00-00

$3.24

7

OIL SEAL

1XD-E511B-00-00

$7.40

8

GASKET

1CT-E1195-00-00

$5.00

9

ROLLER

1CT-E3362-00-00

$3.62

10

GASKET

1CT-G6819-00-00

$3.83

11

BOLT

1XD-E2157-10-00

$8.91

12

. NUT, ADJUSTING

1CT-E3275-00-00

$1.18

13

COVER

1XD-G2134-00-00

$88.08

14

COUPLING

1XD-G6126-00-00

$157.56

15

WASHER 1

1CT-E1557-00-00

$21.24

16

BEARING 1

1XD-E1428-00-00

Unavailable

17

NUT, LOCK

1CT-E6377-00-00

Unavailable

18

CLIP

1XD-G5319-00-00

Unavailable

19

WHEEL, SPROCKET 1

1XD-G7531-00-00

Unavailable

20

CLIP

1XD-E1486-00-00

Unavailable

21

BEARING

93306-30574-00

Unavailable

22

OIL RING, PISTON

1XD-E1614-00-00

Unavailable

23

. BOLT, LOCK PLATE

1XD-G2478-00-00

$1.81

24

SHIM

1XD-G5567-00-00

Unavailable

25

SHIM

1XD-G5577-00-00

Unavailable

26

BEARING

1XD-E7051-00-00

Unavailable

27

BEARING 2

1XD-E1429-00-00

Unavailable

28

GEAR, DRIVE PINION

1XD-G6121-00-00

Unavailable

29

. RING GEAR COMP

1XD-G6110-00-00

$361.45

30

SPRING, COMPRESSION (400)

90501-20361-00

Unavailable

31

SHAFT, DRIVE

1XD-G6172-00-00

Unavailable

32

CIRCLIP(1EY)

99009-19400-00

Unavailable

33

COUPLING

5KM-46126-00-00

Unavailable

34

CIRCLIP (537)

93410-22039-00

Unavailable

35

DAMPER

5KM-46559-00-00

Unavailable

36

SEAL 2

5KM-46137-00-00

Unavailable

37

SEAL 1

5KM-46136-00-00

Unavailable

38

HOSE (L1920)

90445-07032-00

$17.84

39

CLIP (1J7)

90467-07029-00

Unavailable

40

CLAMP(53Y)

90464-15065-00

Unavailable

41

CLAMP

90464-12830-00

Unavailable

42

CLAMP

90464-09013-00

$3.08

43

BOLT, FLANGE

95812-12130-00

Unavailable

44

NUT, SELF-LOCKING

90185-12002-00

Unavailable

45

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

46

BRKT., RR. AXLE

1XD-F1981-00-00

$4.24

47

BOLT, FLANGE

90105-12082-00

Unavailable

48

NUT, SELF-LOCKING

90185-12002-00

Unavailable

49

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

50

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
