CRANKCASE COVER 1

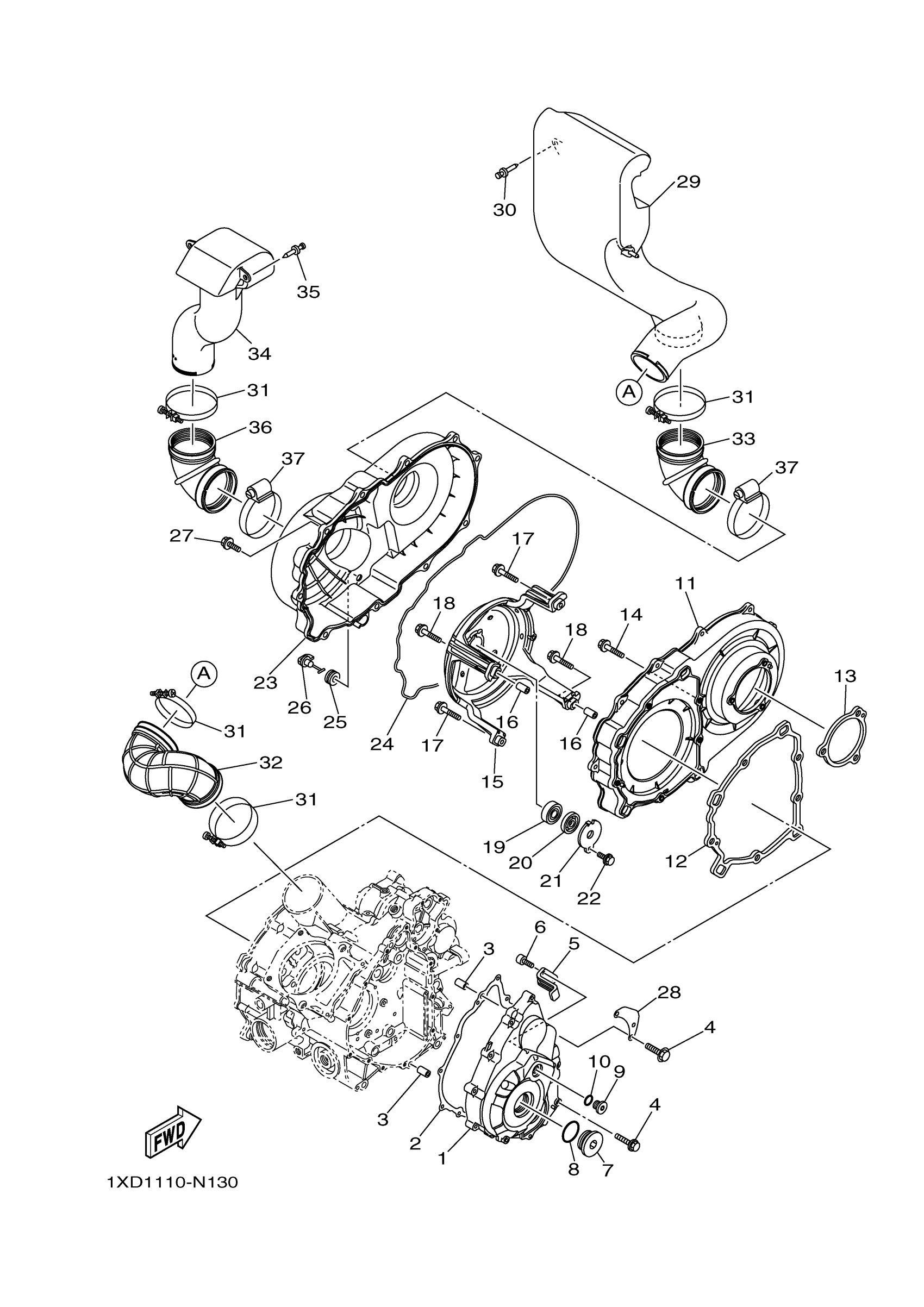

Yamaha YXM700DFL (VIKING) 1XD8 2015 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
3B4-15411-10-00
$212.99
2
GASKET, CRANKCASE COVER 1
3B4-15451-00-00
$32.99
3
PIN, DOWEL(2VG)
99530-10116-00
$4.25
4
BOLT, FLANGE
95022-06030-00
$3.72
5
PLATE
3B4-15113-00-00
$6.99
6
BOLT
91312-05014-00
$2.97
7
PLUG, STRAIGHT SCREW
90340-36004-00
$18.99
8
O-RING
93210-35804-00
$0.48
9
PLUG, STRAIGHT SCREW
90340-14016-00
$17.99
10
O-RING (2H9)
93210-14369-00
$7.49
11
COVER, CRANKCASE 2
1XD-15421-01-00
$88.99
12
GASKET
3B4-15453-01-00
$16.49
13
SEAL, CRANKCASE
3B4-15315-00-00
$12.99
14
95822-06030
95822-06030-00
$1.38
15
HOUSING, BEARING
1XD-15442-00-00
$96.99
16
PIN, DOWEL(2VG)
99530-10116-00
$4.25
17
95822-06030
95822-06030-00
$1.38
18
BOLT, FLANGE
95817-06040-00
Unavailable
19
BEARING(3WF)
93306-20119-00
Unavailable
20
OIL SEAL
93101-12168-00
Unavailable
21
PLATE, BEARING COVER
4WV-15381-00-00
Unavailable
22
BOLT, FLANGE
95022-06016-00
Unavailable
23
COVER, CRANKCASE 3
1XD-15431-01-00
Unavailable
24
SEAL, CRANKCASE
3B4-15379-00-00
Unavailable
25
GROMMET (462)
90480-13018-00
Unavailable
26
PLUG, DRAIN
5KM-15351-00-00
Unavailable
27
BOLT, FLANGE
95817-06020-00
Unavailable
28
STAY, CRANKCASE COVER 1
1XD-1541A-00-00
Unavailable
29
DUCT, AIR
1XD-E5477-01-00
Unavailable
30
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
31
CLAMP,HOSE
90460-85135-00
Unavailable
32
SEAL, AIR DUCT
1XD-E5474-00-00
Unavailable
33
SEAL, AIR DUCT
1XD-E5472-00-00
Unavailable
34
DUCT, AIR
1XD-E5473-01-00
Unavailable
35
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
36
SEAL, AIR DUCT
1XD-E5472-00-00
Unavailable
37
HOSE CLAMP ASSY
90450-94001-00
Unavailable
