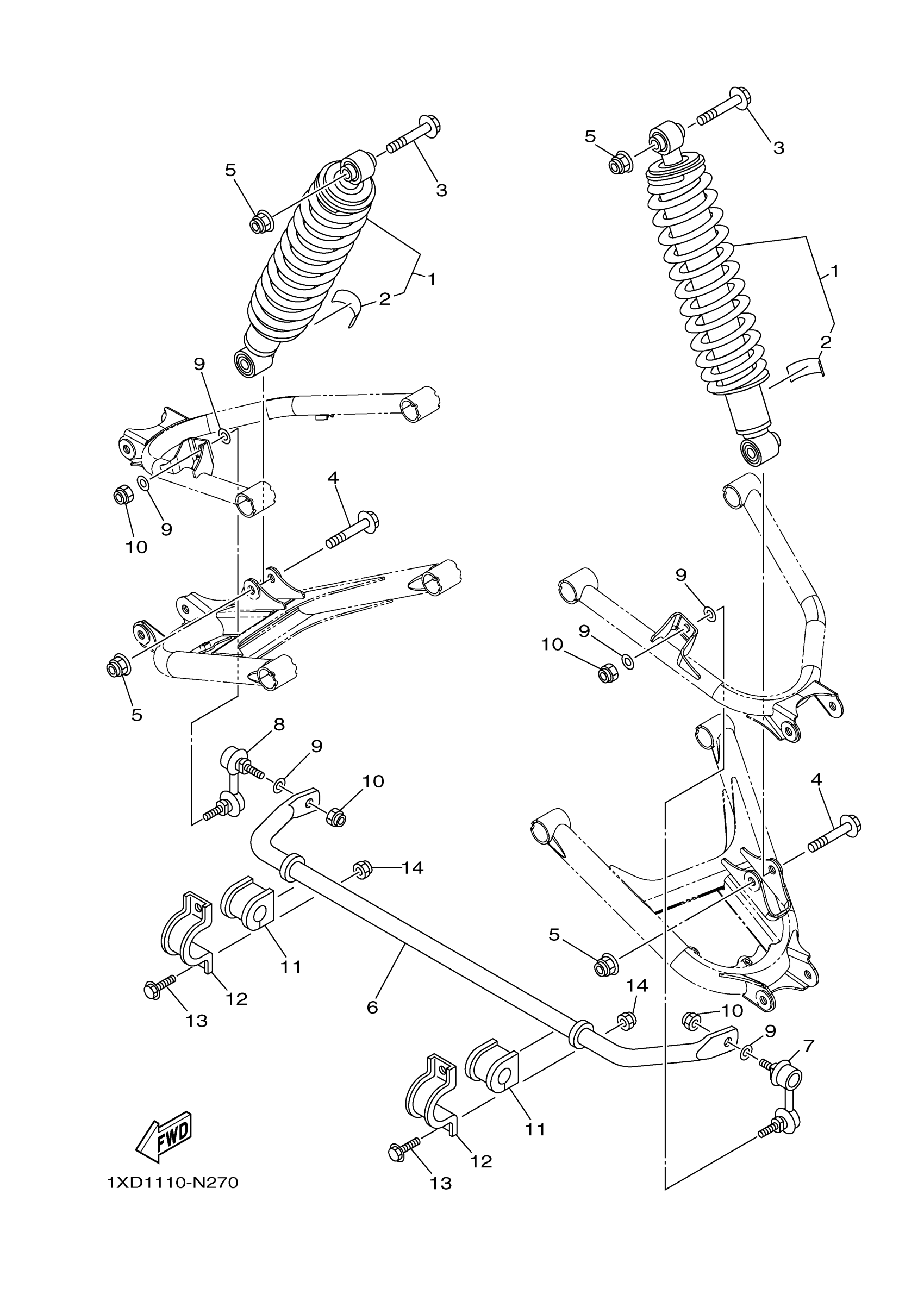

Yamaha YXM700DER (VIKING 700) 1XD6 2014 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

1XD-F2200-00-00

$238.99

2

LABEL,WARNING

1HP-F2259-01-00

$15.49

3

BOLT, FLANGE

90105-12056-00

$11.49

4

BOLT, FLANGE

90105-12055-00

$12.49

5

NUT, SELF-LOCKING

90185-12009-00

$8.49

6

BAR, STABILIZER

1XD-G7491-00-00

$103.99

7

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

8

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

9

WASHER, PLATE

90201-10035-00

$4.19

10

NUT, SELF-LOCKING

90185-10012-00

$9.49

11

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

12

COVER, STABILIZER

1XD-F386H-00-00

$8.99

13

BOLT, FLANGE

95817-10020-00

$8.49

14

NUT, SELF-LOCKING

90185-10011-00

$5.60
