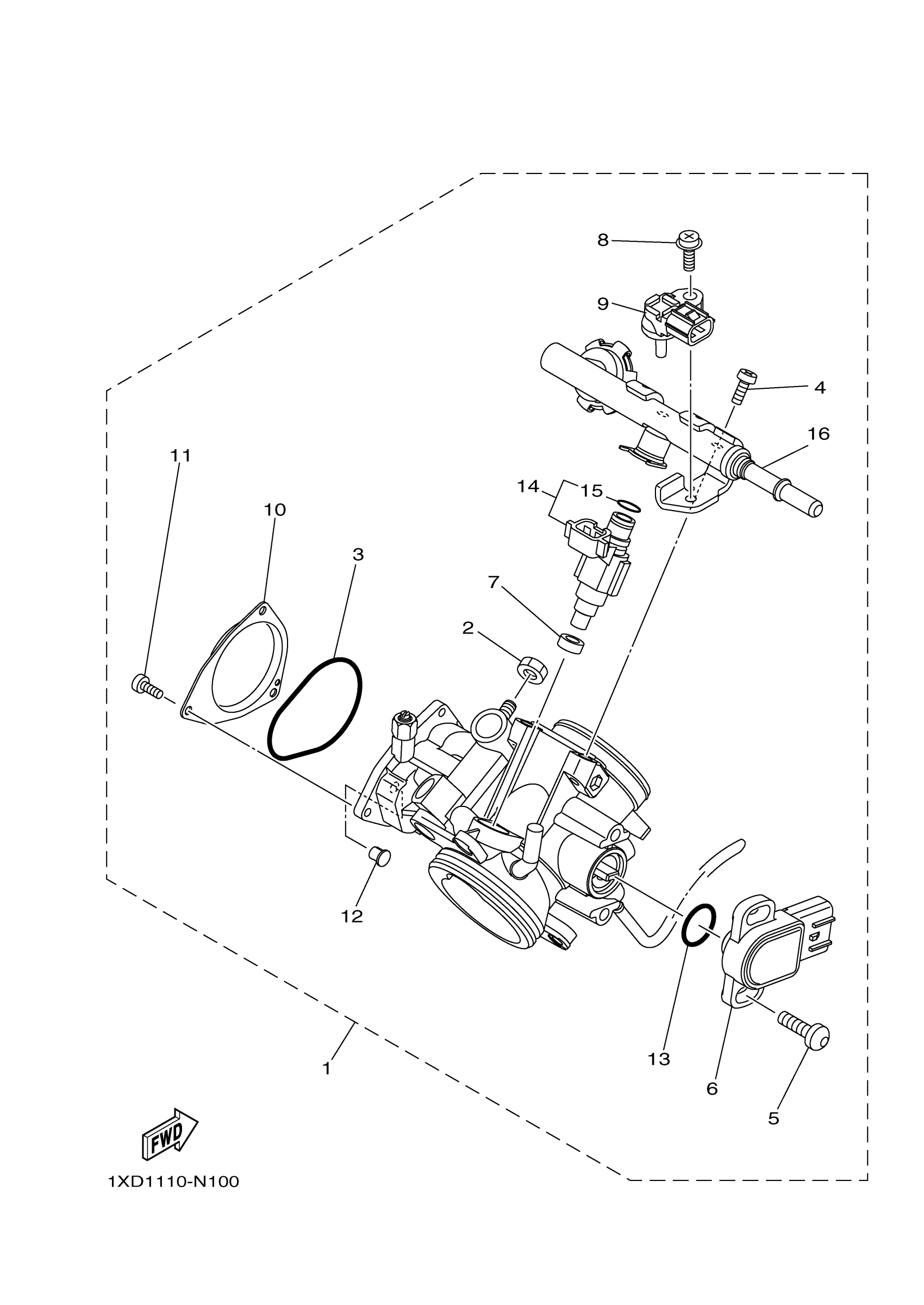

Yamaha YXM700DEL (VIKING 700) 1XD1 2014 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1XD-13750-02-00

$774.99

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

3

O-RING

5LP-14147-00-00

$11.99

4

SCREW, PAN

98517-06012-00

$3.78

5

SCREW

8CC-14216-10-00

$7.99

6

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

7

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

8

SCREW

2C0-14216-00-00

$3.28

9

SENSOR, PRESSURE

5S7-82380-00-00

$187.99

10

COVER 1

5UG-14293-00-00

$12.99

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

GUIDE, CABLE

1UY-14155-00-00

$18.49

13

O-RING

5YP-14562-00-00

$7.99

14

INJECTOR

1XD-13761-00-00

$163.99

15

O-RING

1XD-14147-00-00

$14.49

16

DELIVERY PIPE ASSY 1

1XD-13160-00-00

Unavailable
