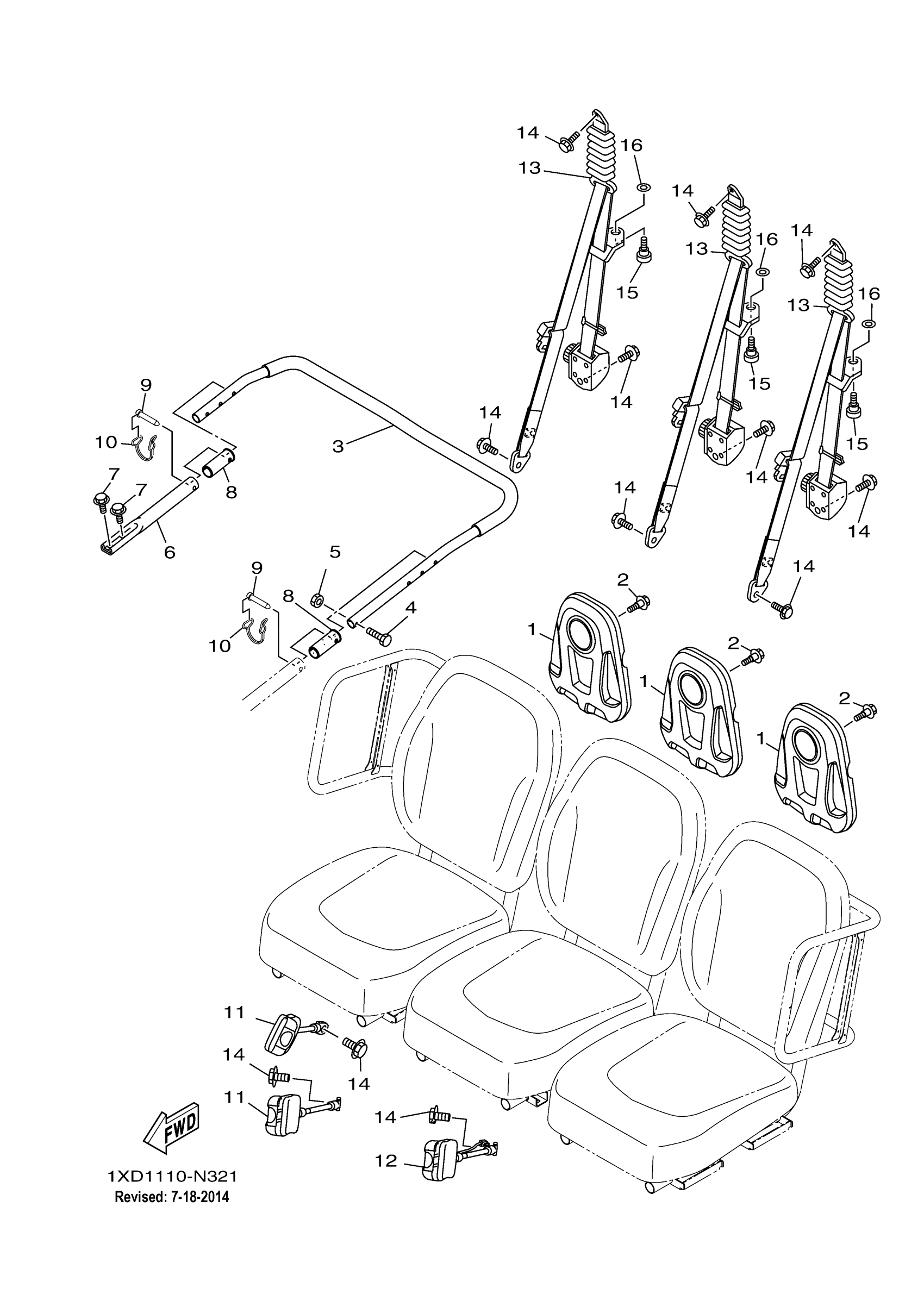

Yamaha YXM700DEL (VIKING 700) 1XD1 2014 SEAT 2 Diagram

#

Description
Price

1

HEAD REST (BLACK)

5UG-F472L-50-00

$27.42

2

BOLT(3KJ)

90109-063F5-00

$5.86

3

ASSIST GRIP ASSY.,

1XD-F470J-00-00

$118.41

4

BOLT

90101-06824-00

$1.13

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

PIPE 2

1XD-F6136-00-00

Unavailable

7

BOLT, FLANGE

95817-08012-00

$3.71

8

BUSH, CAP

1XD-F467K-00-00

$2.21

9

PIN, LOCK

1XD-F5926-00-00

Unavailable

10

SNAP, PIN

1XD-F311F-00-00

$6.29

11

FR. BELT RECEIVER ASSY

1RB-F470R-00-00

$36.35

12

FR. BELT RECEIVER ASSY

1XD-F470R-00-00

Unavailable

13

FR. SEAT BELT ASSY, 1

1RB-F470L-00-00

$198.98

14

BOLT, FLANGE

95812-12020-00

$6.15

15

BOLT, SPECIAL

16B-F3394-01-00

$2.45

16

WASHER, PLATE

90201-11801-00

$1.15
