MASTER CYLINDER

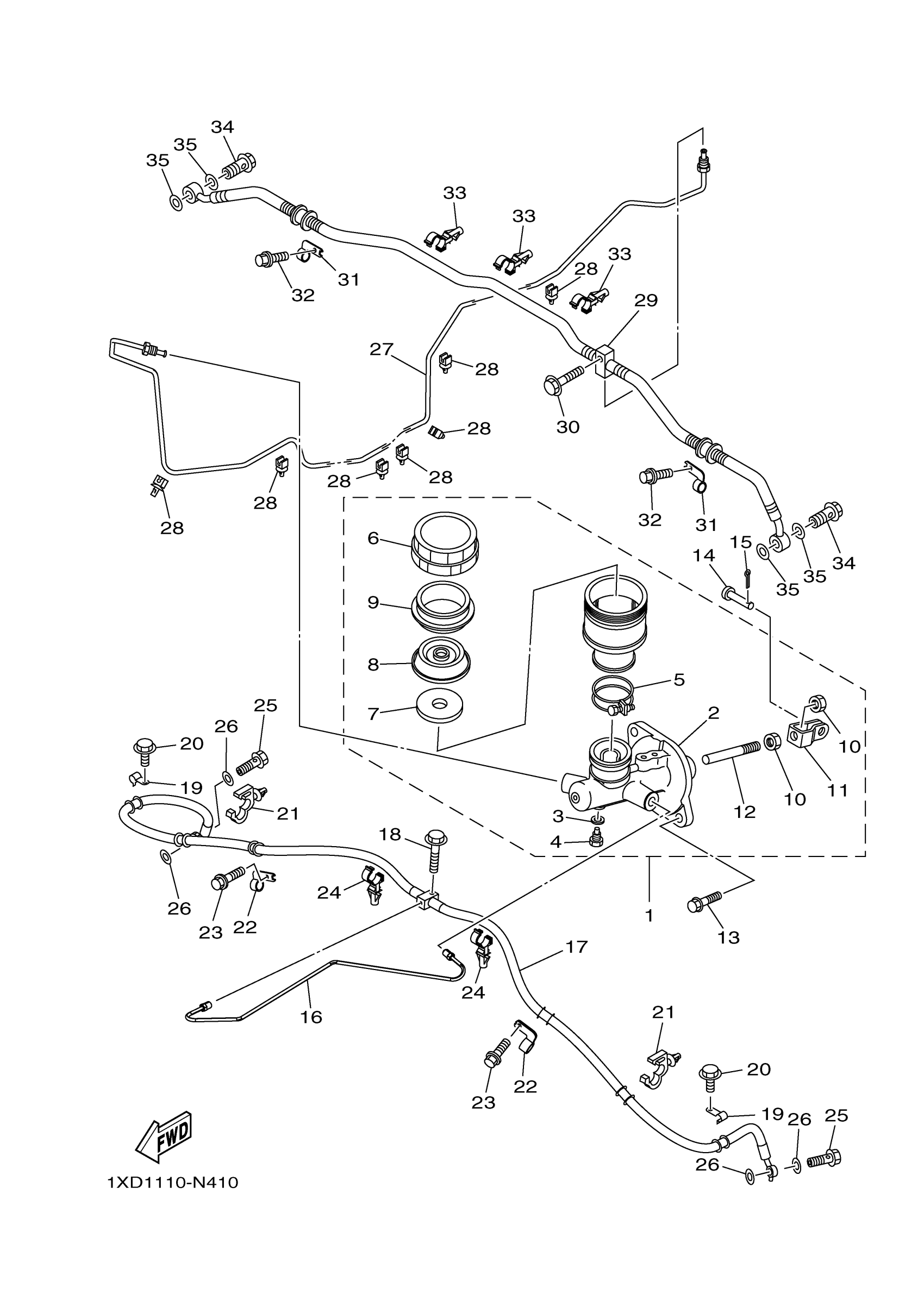

Yamaha YXM700DEL (VIKING 700) 1XD1 2014 MASTER CYLINDER Diagram
#
1
MASTER CYLINDER ASSY
5B4-2583T-00-00
Unavailable
2
CYLINDER KIT, MASTER
5UG-W0042-00-00
$97.99
3
WASHER, OIL BOLT
5UG-25878-00-00
Unavailable
4
BOLT, OIL 1
5UG-25877-00-00
$0.99
5
BAND
5UG-25719-00-00
$6.99
6
CAP, RESERVOIR
5UG-25852-00-00
$17.49
7
FLOAT, RESERVOIR
5UG-25853-00-00
$10.99
8
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
$9.99
9
BUSH,DIAPHRAGM
5UG-25855-00-00
$5.49
10
NUT, HEXAGON SMALL
95317-08700-00
$9.49
11
JOINT
2YK-27222-00-00
$21.99
12
PUSH ROD COMP.
5UG-25880-00-00
Unavailable
13
BOLT, FLANGE
90105-08129-00
$4.88
14
PIN, CLEVIS
90240-08005-00
$8.49
15
PIN, COTTER
91490-20025-00
$1.99
16
PIPE, BRAKE 2
1XD-F5882-01-00
Unavailable
17
HOSE, BRAKE 1
1XD-F5872-02-00
Unavailable
18
BOLT, FLANGE
95817-06025-00
Unavailable
19
HOLDER, BRAKE HOSE 1
5KM-25875-00-00
Unavailable
20
BOLT, FLANGE
95812-06010-00
Unavailable
21
CLAMP
90464-18002-00
Unavailable
22
HOLDER, BRAKE HOSE 2
3B4-25876-10-00
Unavailable
23
BOLT, FLANGE
95812-06010-00
Unavailable
24
CLAMP
90464-16012-00
Unavailable
25
BOLT, UNION
90401-10015-00
Unavailable
26
WASHER, PLATE(481)
90201-10118-00
Unavailable
27
PIPE, BRAKE
1XD-F5871-01-00
Unavailable
28
CLAMP 1
5KM-81677-00-00
Unavailable
29
HOSE, BRAKE 2
1XD-F5873-02-00
Unavailable
30
BOLT, FLANGE
90105-06833-00
Unavailable
31
HOLDER, BRAKE HOSE 2
3B4-25876-10-00
Unavailable
32
BOLT, FLANGE
95812-06010-00
Unavailable
33
CLAMP
90464-16012-00
Unavailable
34
BOLT, UNION
90401-10015-00
Unavailable
35
WASHER, PLATE(481)
90201-10118-00
Unavailable
