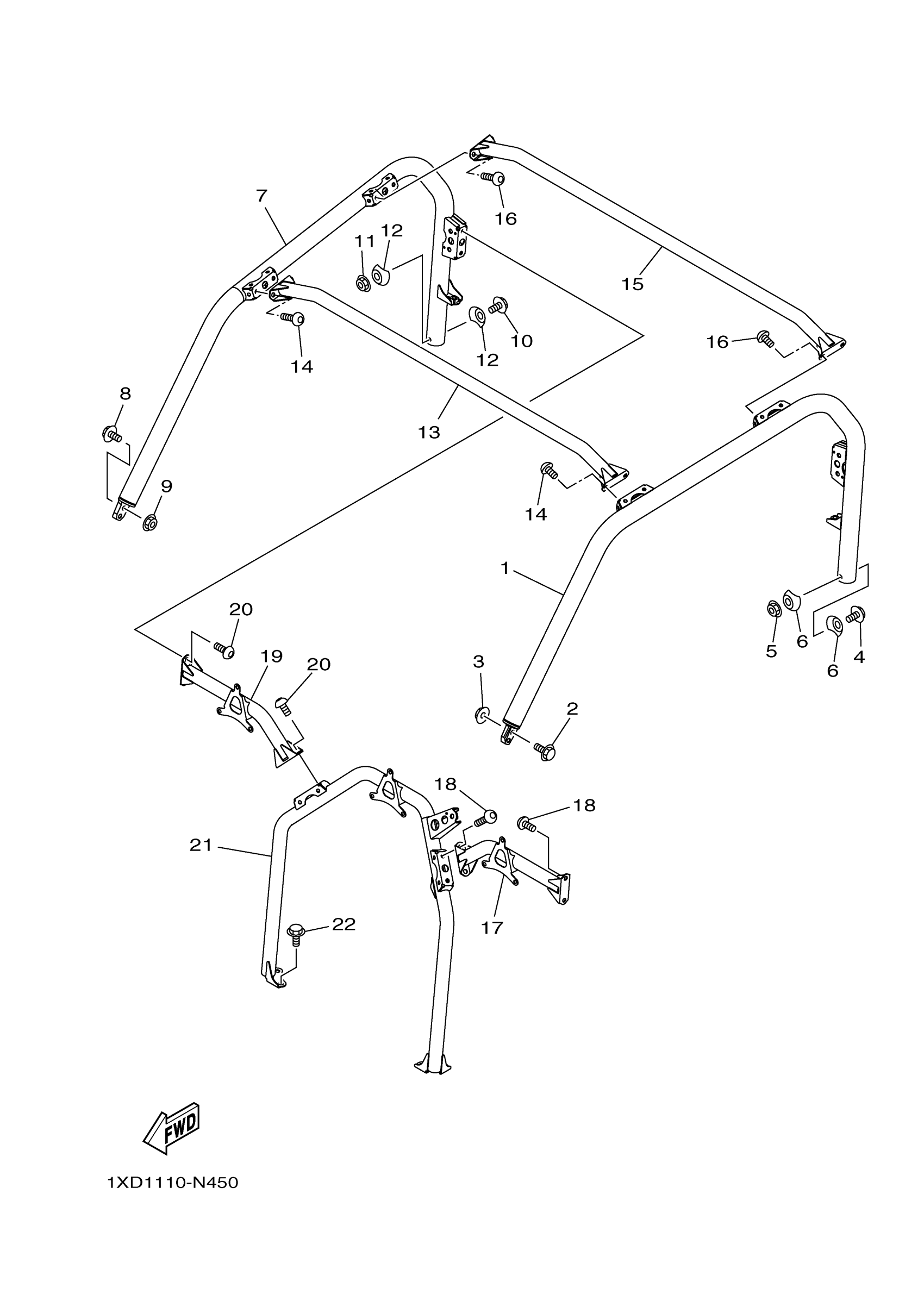

Yamaha YXM700DEL (VIKING 700) 1XD1 2014 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

1XD-K831A-00-00

$255.08

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10070-00

$3.92

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

1XD-K831E-00-00

$229.50

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10070-00

$3.92

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

1XD-K8392-00-00

$82.71

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

MEMBER, ROOF FRAME

1XD-K8393-00-00

$83.44

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY 1

1XD-K830A-00-00

$167.71

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

19

ROOF SUPPORT ASSY 2

1XD-K830B-00-00

$161.67

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY 3

1XD-K830C-00-00

$178.73

22

BOLT, FLANGE

95812-10016-00

Unavailable
