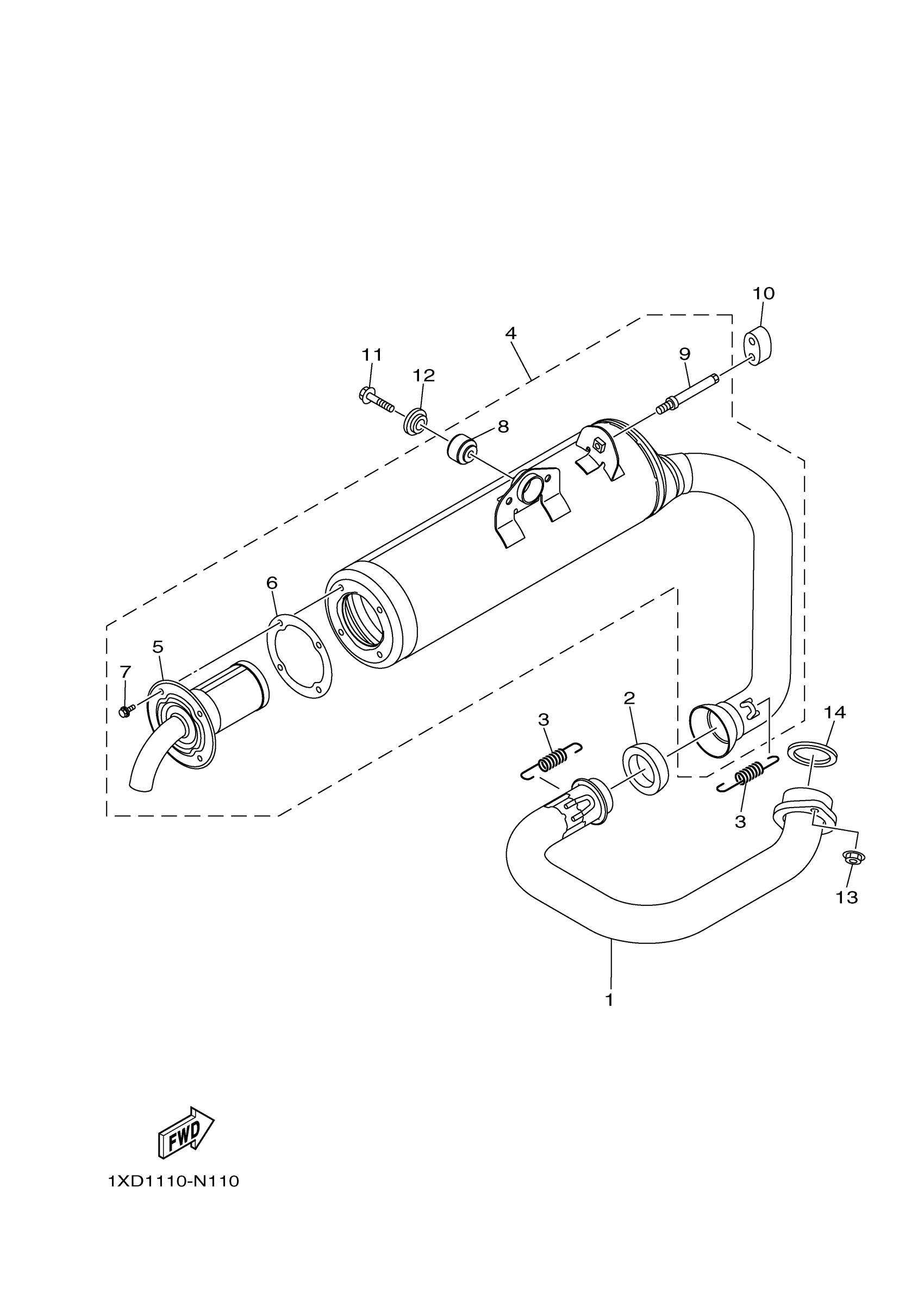

Yamaha YXM700DEL (VIKING 700) 1XD1 2014 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1XD-E4611-02-00

$112.47

2

GASKET,MUFFLER

1XD-E4714-01-00

$49.50

3

SPRING, TENSION

90506-26012-00

$11.25

4

MUFFLER ASSY 1

1XD-E4710-02-00

Unavailable

5

SPARK ARRESTER ASS

2BG-E4780-00-00

$56.31

6

GASKET, SILENCER

2BG-E4755-00-00

$17.70

7

BOLT, FLANGE

95022-06012-00

$2.80

8

DAMPER,FOOTREST

1HP-F7414-00-00

$18.79

9

SHAFT

1XD-E4745-00-00

$23.50

10

DAMPER, MUFFLER

1XD-14737-00-00

$7.42

11

BOLT, FLANGE

95817-08040-00

$5.04

12

WASHER

3B4-14759-01-00

$14.08

13

NUT,FLANGE(J10)

95702-08500-00

$0.79

14

GASKET, EXHAUST PIPE

3EG-14613-00-00

$18.82
