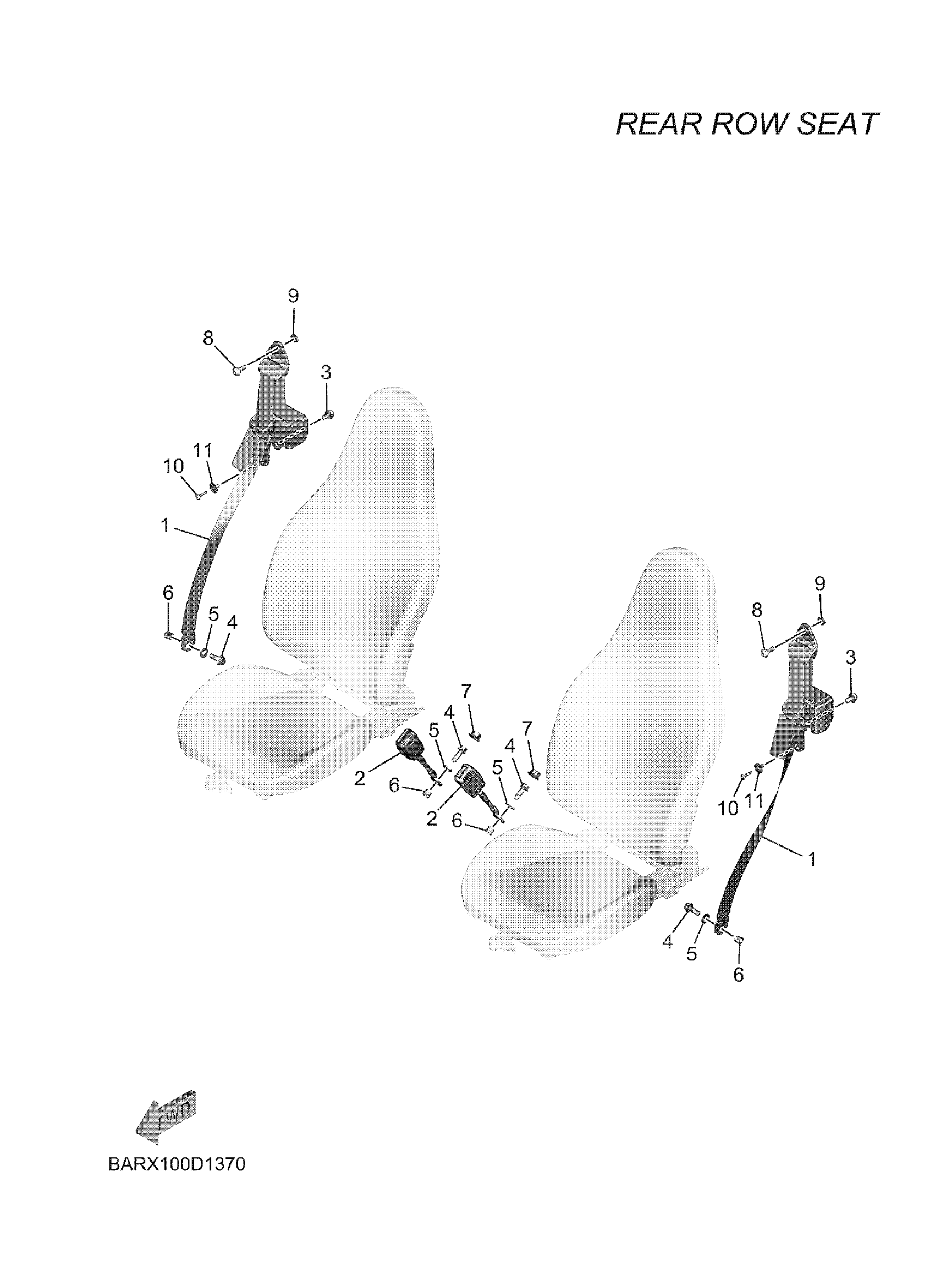

Yamaha YXF85WTZTM (WOLVERINE X4 850 XT R) BARX 2026 SEAT 4 Diagram

#

Description
Price

1

REAR SEAT BELT ASS

B4J-F470N-02-00

$135.95

2

RR. BELT RECEIVER

B4J-F470S-00-00

$28.31

3

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.04

4

BOLT, FLANGE DEEP RECESS

95D32-12035-00

$2.62

5

WASHER, PLATE

90201-13020-00

$2.83

6

COLLAR

90387-12869-00

$18.81

7

CAP,CASING

BLU-F476M-00-00

Unavailable

8

BOLT,HEX. SOCKET B

90111-11800-00

$2.19

9

WASHER, PLATE (583)

90201-12593-00

$6.35

10

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$8.07

11

COLLAR (17W)

90387-075H4-00

$6.02
