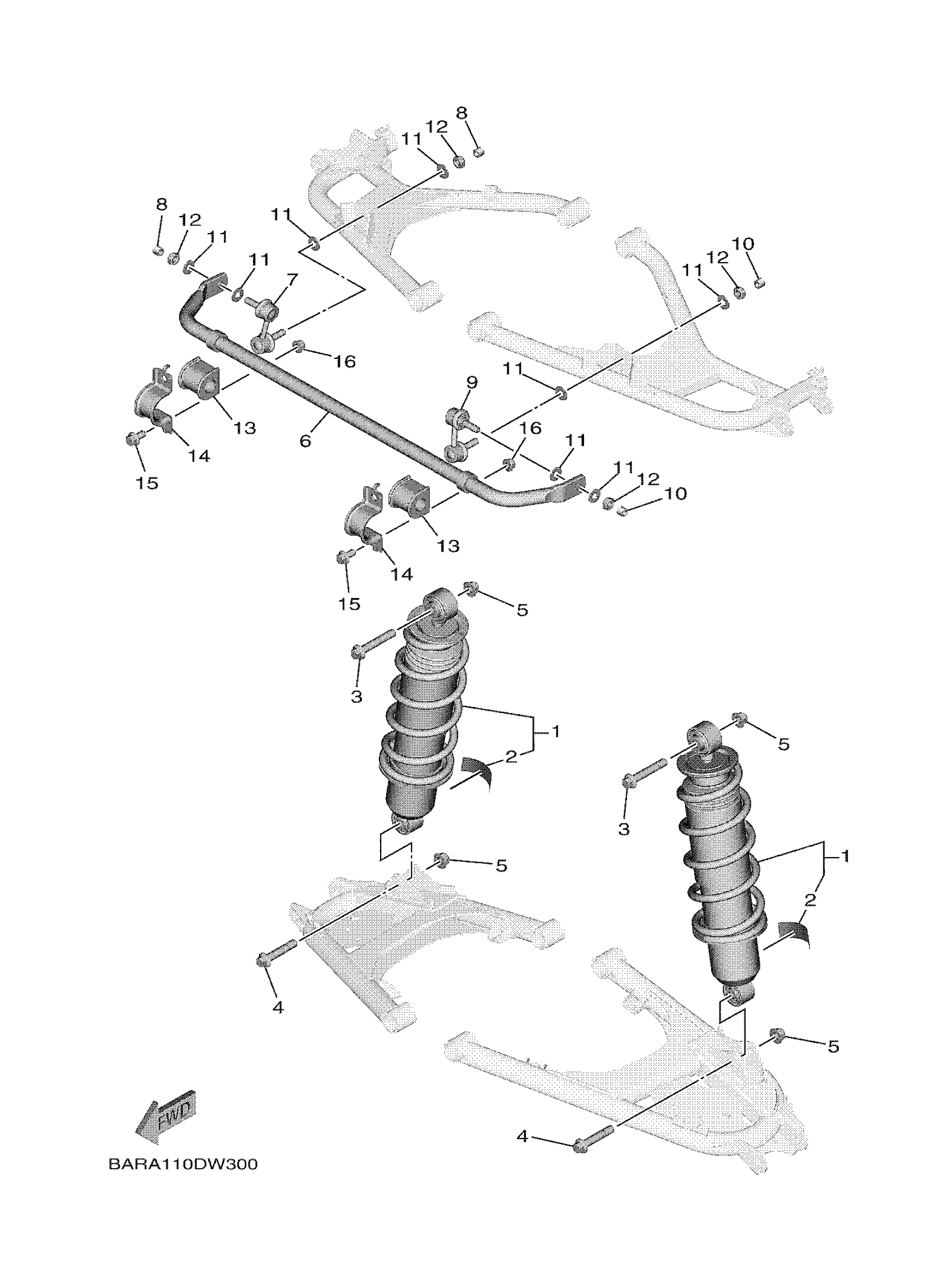

Yamaha YXF85WTZTM (WOLVERINE X4 850 XT R) BARX 2026 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BG4-F2200-70-00

Unavailable

2

LABEL, WARNING

B4J-F2259-00-00

$1.43

3

BOLT, FLANGE

90105-12095-00

$9.49

4

BOLT, FLANGE

90105-12051-00

$9.49

5

NUT, SELF-LOCKING

90185-12002-00

$12.49

6

BAR, STABILIZER

BG4-G7491-02-00

$125.99

7

JOINT, STABILIZER 1

16B-2385L-10-00

$72.99

8

HOSE (L11)

90445-13029-00

Unavailable

9

JOINT, STABILIZER 2

16B-2385M-10-00

$72.99

10

HOSE (L11)

90445-13029-00

Unavailable

11

WASHER, PLATE

90201-10035-00

$4.19

12

NUT, SELF-LOCKING

90185-10012-00

$9.49

13

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

14

COVER, STABILIZER

1XD-F386H-00-00

$8.99

15

BOLT, FLANGE

90105-10489-00

$3.13

16

NUT, SELF-LOCKING

90185-10818-00

Unavailable
