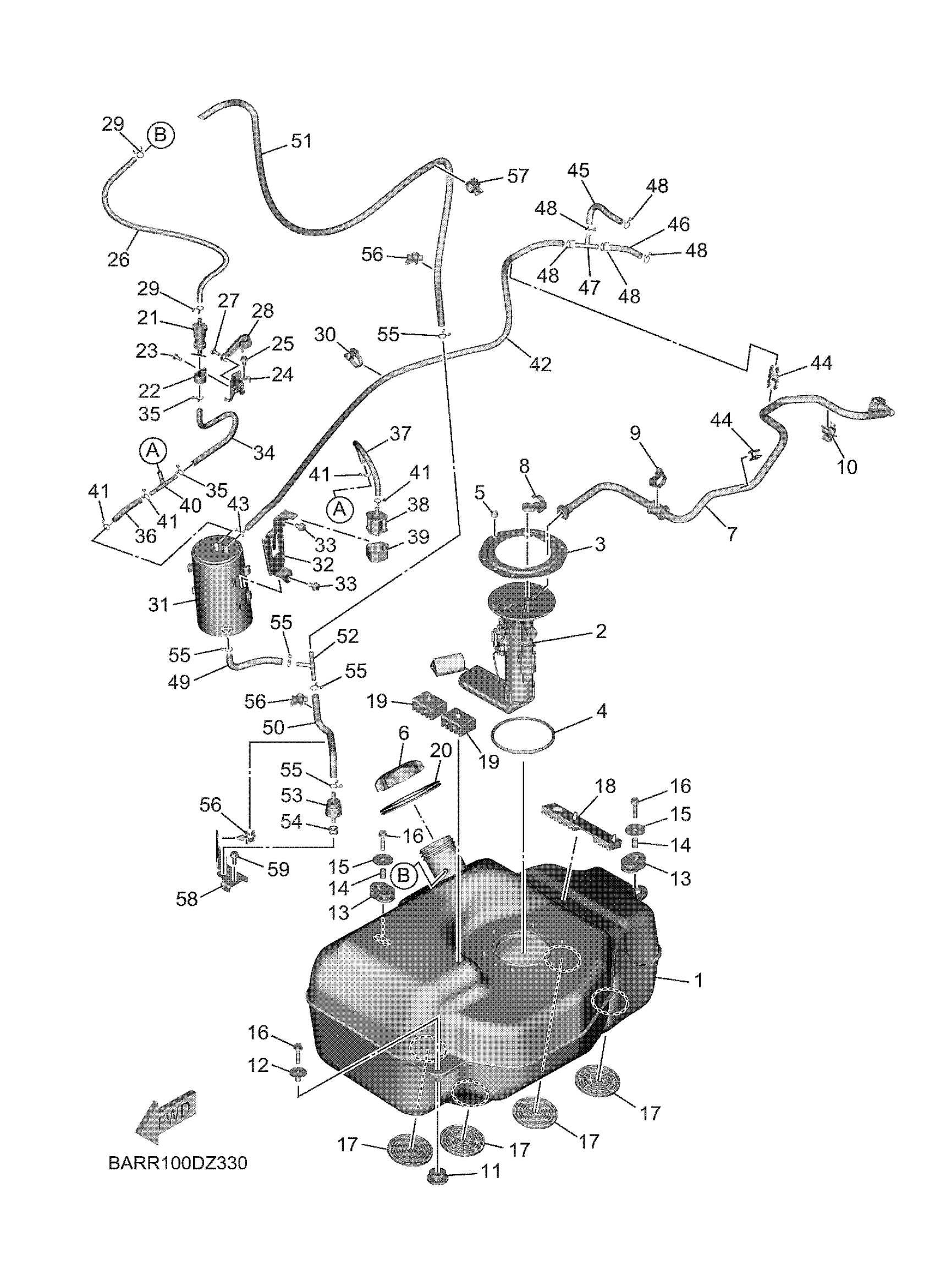

Yamaha YXF85WTZTM (WOLVERINE X4 850 XT R) BARX 2026 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-02-00
Unavailable
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
7
PIPE, FUEL 1
BG4-13971-01-00
Unavailable
16
BOLT, FLANGE
95812-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
22
CLAMP
90464-15014-00
Unavailable
23
SCREW, BINDING
98907-05012-00
Unavailable
24
BRACKET, CANISTOR
BAR-F419F-02-00
Unavailable
25
BOLT, FLANGE
95022-06012-00
Unavailable
26
HOSE 1
BAN-2247A-00-00
Unavailable
27
SCREW, BINDING
98907-05012-00
Unavailable
28
CLAMP
90462-08072-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
31
CANISTER ASSY
7CC-F4170-02-00
Unavailable
32
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
33
BOLT, FLANGE
95812-06010-00
Unavailable
34
HOSE (L200)
90445-09044-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
HOSE (L54)
90445-09043-00
Unavailable
37
HOSE (L200)
90445-09044-00
Unavailable
38
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
39
BAND 1
3B4-24398-00-00
Unavailable
40
WAY (70R)
90413-08012-00
Unavailable
41
CLIP
90467-090A2-00
Unavailable
42
HOSE (L1050)
90445-10062-00
Unavailable
43
CLIP
90467-090A2-00
Unavailable
44
CLAMP
90464-11005-00
Unavailable
45
HOSE
90445-10829-00
Unavailable
46
HOSE (L65)
90445-10061-00
Unavailable
47
WAY 3 (10L)
90413-07007-00
Unavailable
48
CLIP
90467-100A1-00
Unavailable
49
PIPE 5
BG4-24315-00-00
Unavailable
50
PIPE 11
BYP-24322-00-00
Unavailable
51
HOSE (L1010)
90445-11100-00
Unavailable
52
WAY (70R)
90413-08012-00
Unavailable
53
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
54
GROMMET
90480-10003-00
Unavailable
55
CLIP
90467-100A1-00
Unavailable
56
CLAMP
90464-14M55-00
Unavailable
57
CLAMP
90464-16006-00
Unavailable
58
BRACKET 1
BYP-F148U-00-00
Unavailable
59
BOLT, FLANGE
90105-06831-00
Unavailable
