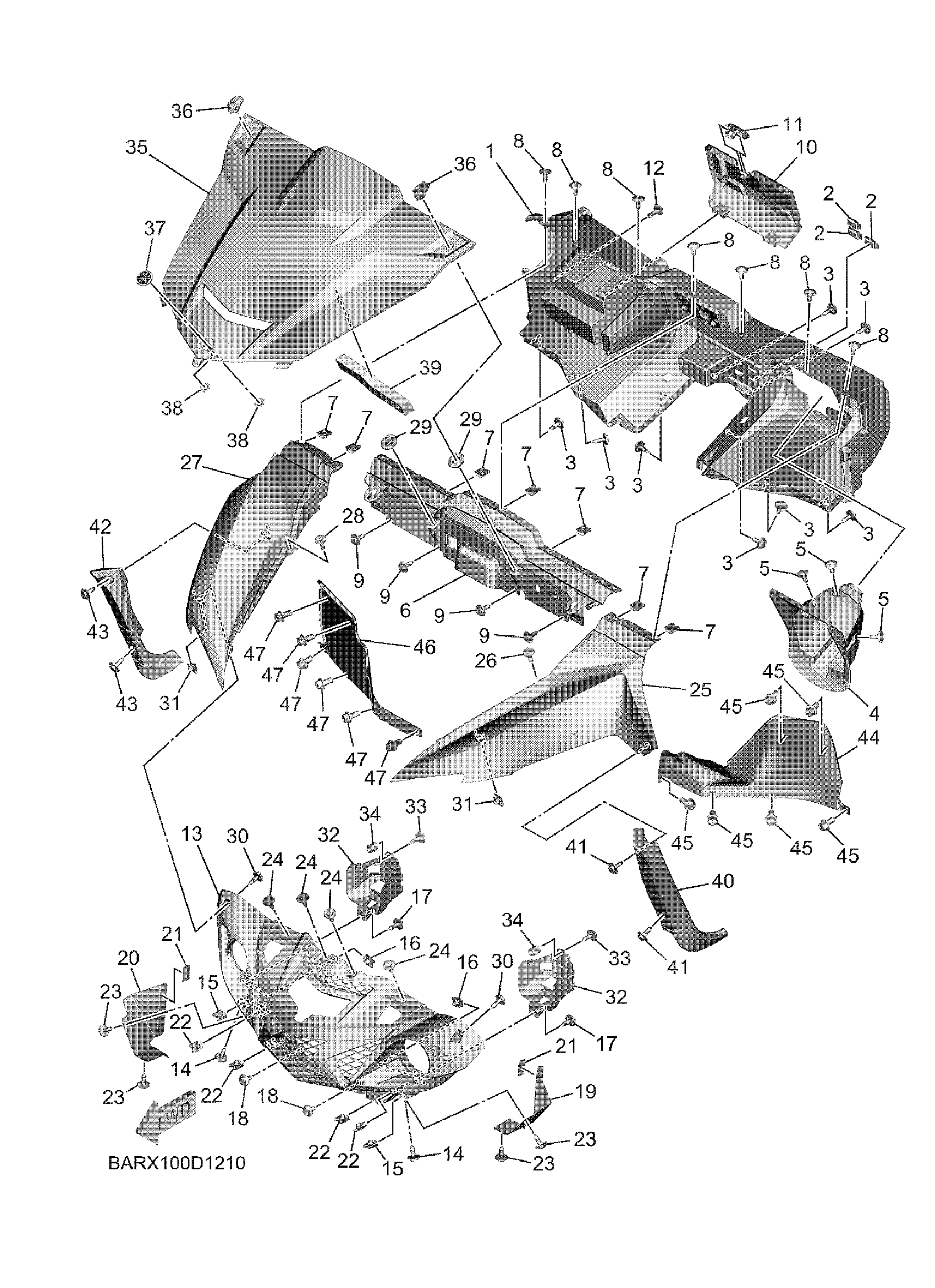

Yamaha YXF85WTZTM (WOLVERINE X4 850 XT R) BARX 2026 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BAR-K7711-01-00

$209.99

2

PLUG, HOLE

BG4-F312G-00-00

Unavailable

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

COVER, STEERING

BG4-F3818-00-00

$18.99

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

COVER, FRONT

BG4-F2865-00-00

$33.99

7

NUT, SPRING

90183-062A1-00

$1.96

8

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

LID

BG4-F160F-00-00

$13.49

11

LOCK

F2X-U2875-00-00

Unavailable

12

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

13

GRILLE, FRONT

BG4-F8309-11-00

$85.99

14

BOLT, WITH WASHER

90119-06226-00

$8.49

15

NUT, SPRING

90183-062A1-00

$1.96

16

NUT, SPRING

90183-062A1-00

$1.96

17

BOLT, WITH WASHER

90119-06226-00

$8.49

18

BOLT

90109-06202-00

Unavailable

19

COVER 1

BG4-E246A-00-00

Unavailable

20

COVER 2

BG4-E246E-00-00

Unavailable

21

DAMPER

5UG-K7588-01-00

Unavailable

22

NUT, SPRING

90183-062A1-00

$1.96

23

BOLT, WITH WASHER

90119-06226-00

$8.49

24

BOLT, WITH WASHER

90119-06226-00

$8.49

25

FENDER, FRONT

BG4-F1511-70-00

Unavailable

26

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

27

FENDER, FRONT 2

BG4-F1556-70-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

29

GROMMET(4DN)

90480-01558-00

Unavailable

30

BOLT, WITH WASHER

90119-06226-00

$8.49

31

NUT, SPRING

90183-062A1-00

$1.96

32

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06226-00

$8.49

34

HOSE

90445-08029-00

Unavailable

35

HOOD 1

BG4-F1982-90-00

Unavailable

36

LEVER, LOCK

1XD-2175K-10-00

Unavailable

37

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

38

NUT, SPRING

90183-06071-00

Unavailable

39

DAMPER, PLATE

90520-50004-00

Unavailable

40

EXTENSION, FRONT FENDER 1

BFN-K8185-10-00

Unavailable

41

BOLT, WITH WASHER

90119-06226-00

$8.49

42

EXTENSION, FRONT FENDER 2

BFN-K8186-10-00

Unavailable

43

BOLT, WITH WASHER

90119-06226-00

$8.49

44

PROTECTOR 1

BFN-F622K-01-00

Unavailable

45

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

46

PROTECTOR 2

BFN-F622L-01-00

Unavailable

47

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
