Description

Price

1

DOOR PANEL

BG4-K8571-11-00

$520.99

2

COVER 3

BAR-F198J-00-00

$258.99

3

RIVET

90269-03001-00

Unavailable

4

BODY, LATCH 1

BG4-K7171-00-00

$211.99

5

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

6

SPRING

2HC-F1742-00-00

$2.96

7

. PIN

90249-05801-00

Unavailable

8

CIRCLIP (EU0)

99080-04600-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

HINGE, SEAT 2

BG4-F4779-00-00

$25.99

11

NUT,PLATE

BG4-F1736-00-00

$7.49

12

SCREW

90149-08805-00

$1.01

13

SIDE PNL. COMP. 3

BG4-K810W-60-00

$217.99

14

NUT, SPRING

90183-062A1-00

$1.96

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

PAD

2MB-F8378-00-00

Unavailable

17

PNL. , DOOR RR. RH

BG4-K8572-11-00

Unavailable

18

COVER 3

BAR-F198J-00-00

$258.99

19

RIVET

90269-03001-00

Unavailable

20

BODY, LATCH 2

BG4-K7172-00-00

Unavailable

21

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

22

SPRING

2HC-F1742-00-00

$2.96

23

. PIN

90249-05801-00

Unavailable

24

CIRCLIP (EU0)

99080-04600-00

Unavailable

25

BOLT, WITH WASHER

90119-06226-00

$8.49

26

HINGE, SEAT 2

BG4-F4779-00-00

$25.99

27

NUT,PLATE

BG4-F1736-00-00

$7.49

28

SCREW

90149-08805-00

$1.01

29

SIDE PNL. COMP. 4

BG4-K810X-60-00

Unavailable

30

NUT, SPRING

90183-062A1-00

$1.96

31

BOLT, WITH WASHER

90119-06226-00

$8.49

32

PAD

2MB-F8378-00-00

Unavailable

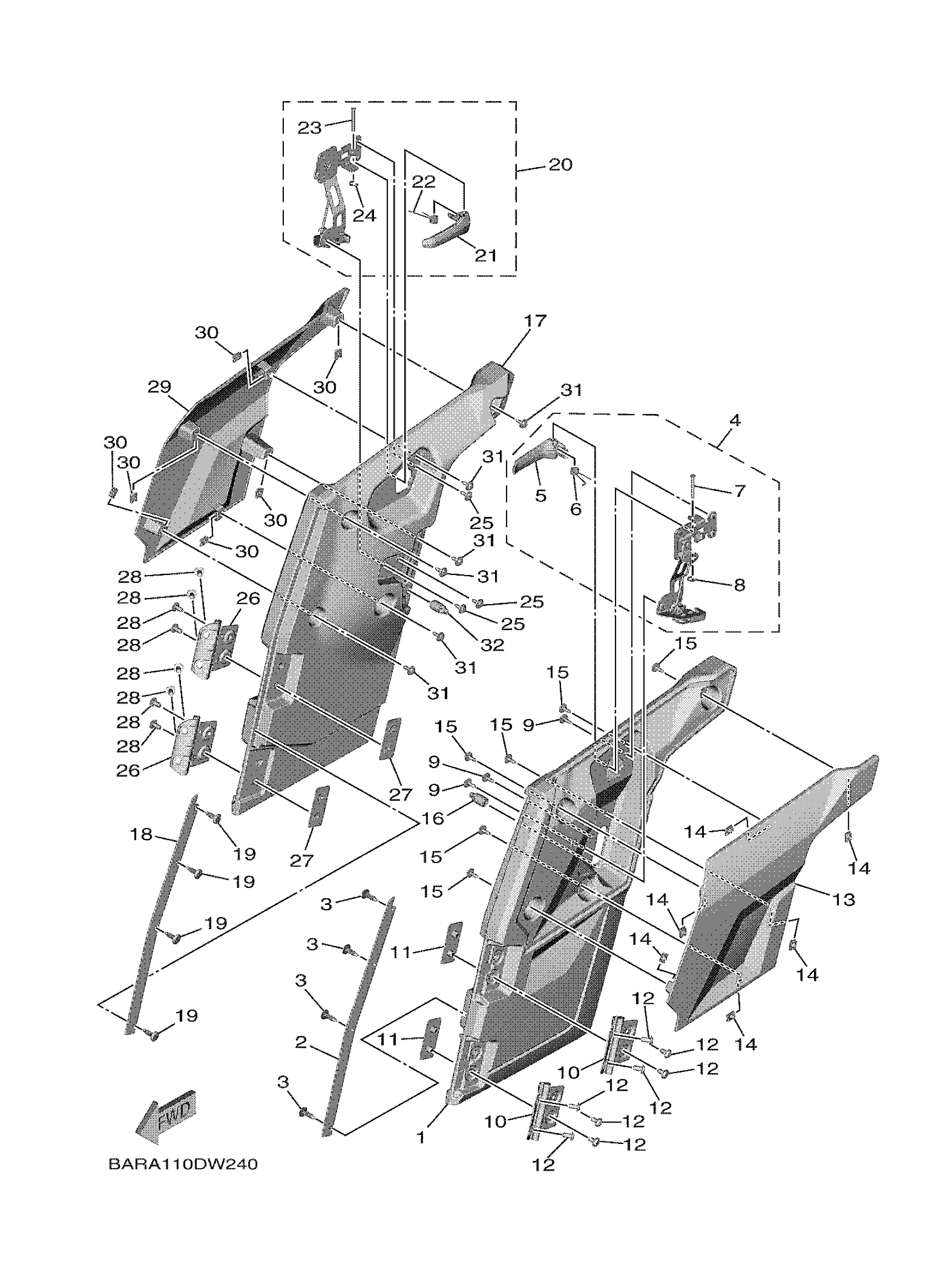

Yamaha YXF85WTZSB (WOLVERINE X4 850 XT R) BARV 2025 SIDE COVER 2 Diagram

DOOR PANEL

COVER 3

RIVET

BODY, LATCH 1

LEVER, LATCH 1

SPRING

. PIN

CIRCLIP (EU0)

BOLT, WITH WASHER

HINGE, SEAT 2

NUT,PLATE

SCREW

SIDE PNL. COMP. 3

NUT, SPRING

BOLT, WITH WASHER

PAD

PNL. , DOOR RR. RH

COVER 3

RIVET

BODY, LATCH 2

LEVER, LATCH 1

SPRING

. PIN

CIRCLIP (EU0)

BOLT, WITH WASHER

HINGE, SEAT 2

NUT,PLATE

SCREW

SIDE PNL. COMP. 4

NUT, SPRING

BOLT, WITH WASHER

PAD
