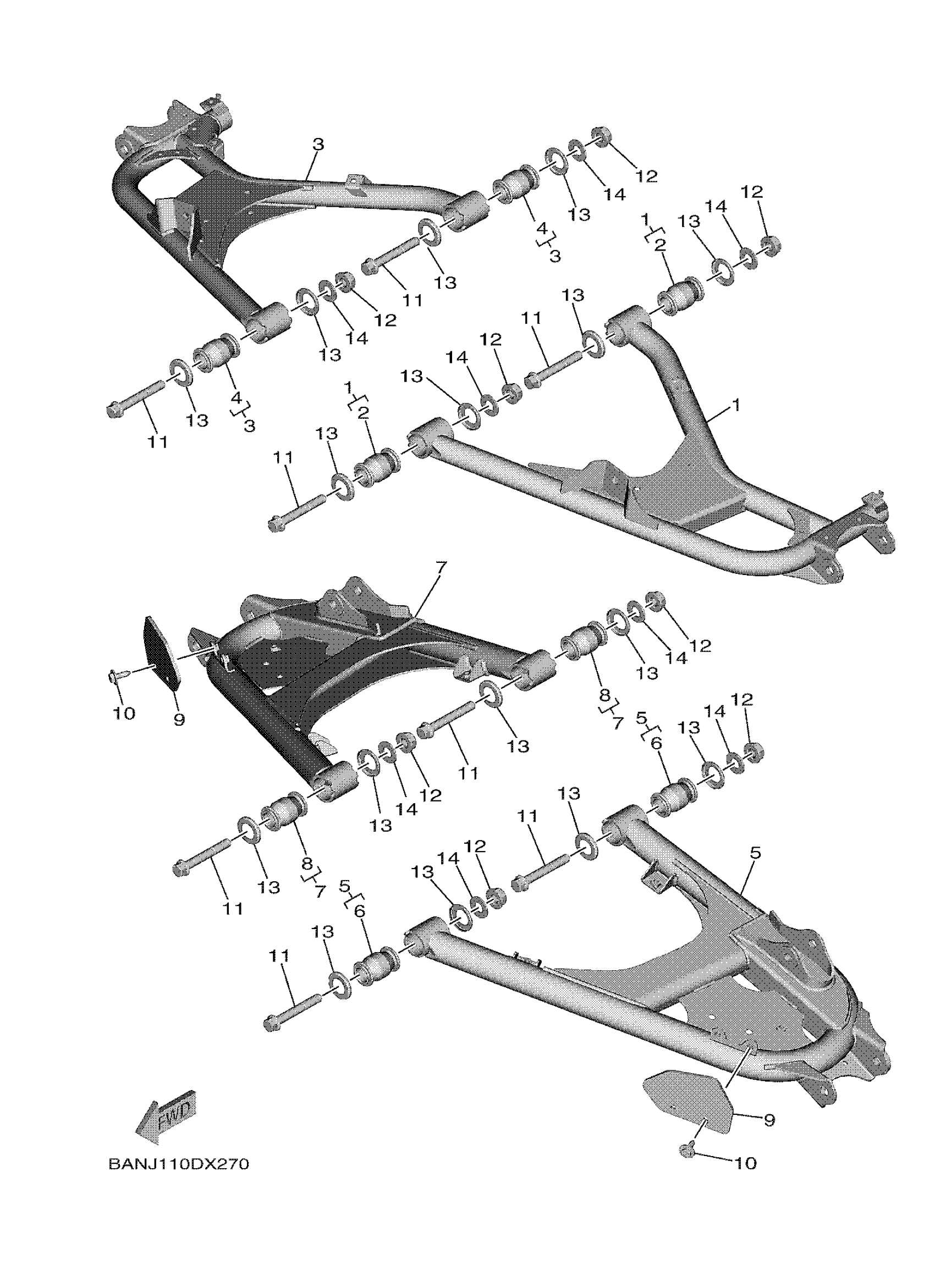

Yamaha YXF85WTZSB (WOLVERINE X4 850 XT R) BARV 2025 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BAR-F2104-10-00

$173.99

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. UPR. ARM COMP.

BAR-F2105-10-00

$97.99

4

BUSH

B4J-F3526-01-00

Unavailable

5

RR. LWR. ARM COMP.

BAR-F2106-10-00

$119.99

6

BUSH

B4J-F3526-01-00

Unavailable

7

RR. LWR. ARM COMP.

BAR-F2107-10-00

Unavailable

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-12095-00

$9.49

12

NUT, SELF-LOCKING

90185-12002-00

$12.49

13

COVER, THRUST 1

B4J-F3517-00-00

$0.96

14

WASHER, PLATE

90201-12045-00

$5.60
