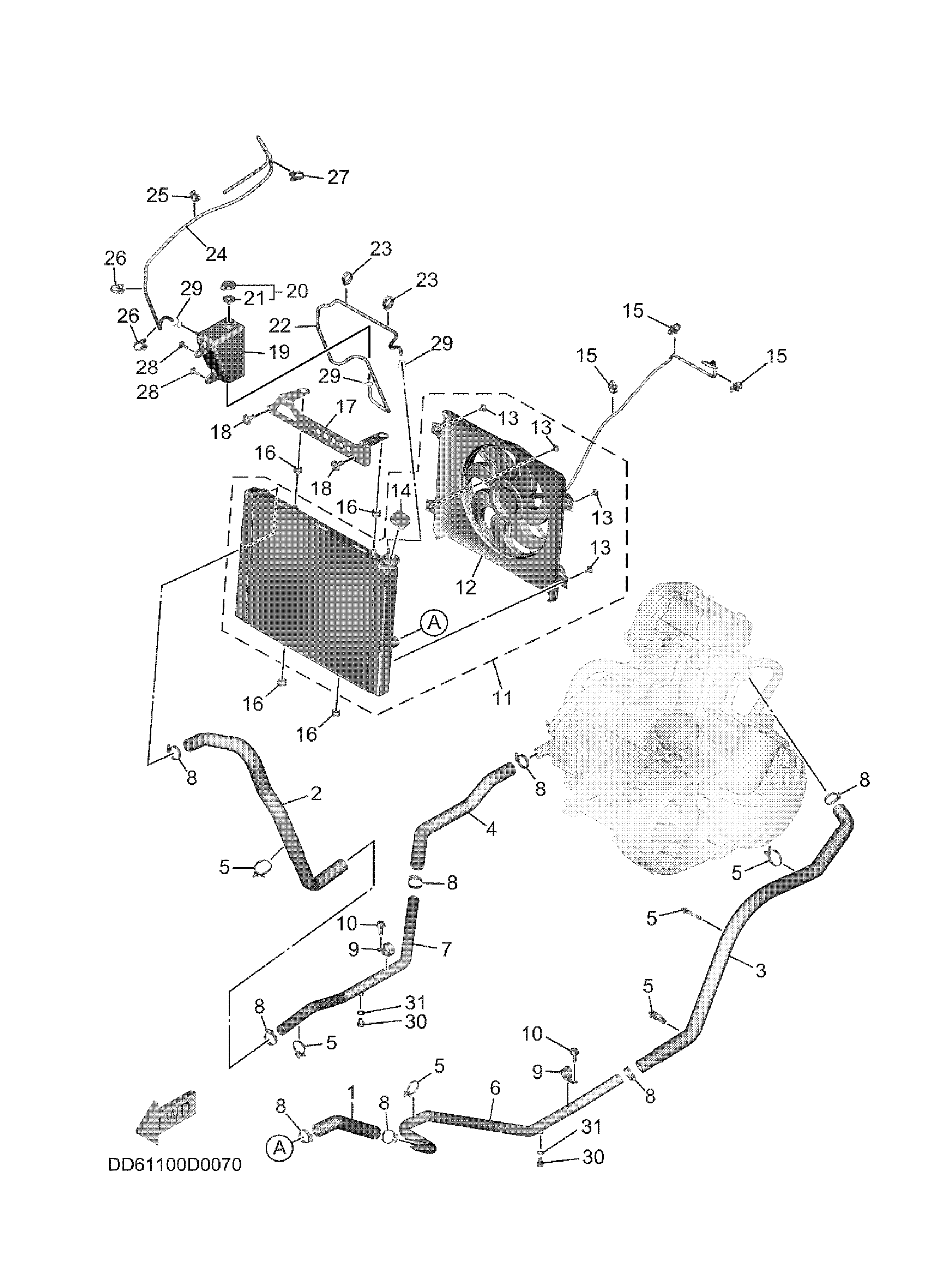

Yamaha YXF85WTZSB (WOLVERINE X4 850 XT R) BARV 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

HOSE 1

BG4-E2576-00-00

$9.49

2

HOSE 2

BG4-E2577-00-00

$33.99

3

HOSE 3

BG4-E2578-00-00

$42.99

4

HOSE 4

BG4-E2579-00-00

$14.99

5

CLAMP

1NS-F1338-00-00

$3.33

6

PIPE 3

BG4-E2483-00-00

$40.99

7

PIPE, WATER

BG4-E2564-00-00

$37.99

8

HOSE CLAMP ASSY

90450-35001-00

$5.60

9

CLAMP

90461-12801-00

$0.96

10

BOLT, FLANGE

90105-06831-00

$2.29

11

RADIATOR ASSY

BG4-E2460-03-00

$368.99

12

BLOWER ASSY

BG4-E2405-02-00

Unavailable

13

BOLT, BLOWER HOLDI

1XD-E2675-00-00

$1.66

14

CAP, RADIATOR

1XD-E2462-00-00

$15.49

15

CLAMP

90464-12830-00

$1.49

16

GROMMET(2GH)

90480-12475-00

Unavailable

17

BRACKET, WATER COO

BG4-E2518-00-00

Unavailable

18

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

19

TANK, RECOVERY

1XD-F1871-00-00

Unavailable

20

CAP

1AA-21815-00-00

Unavailable

21

GASKET

1AA-21874-00-00

Unavailable

22

HOSE

90445-08811-00

Unavailable

23

CLAMP

90464-28003-00

Unavailable

24

HOSE (L1040)

90445-08041-00

Unavailable

25

CLAMP

90464-16006-00

Unavailable

26

CLAMP

90464-20010-00

Unavailable

27

CLAMP

90464-20010-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

29

CLIP 101235600

90467-08003-00

Unavailable

30

BOLT, FLANGE

95022-06008-00

Unavailable

31

GASKET 256113960000

90430-06014-00

Unavailable
