Description

Price

1

CYLINDER HEAD ASSY

B4D-E1101-09-00

$381.99

2

GUIDE, VALVE 1

4D9-11133-10-00

$43.99

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

7

BOLT, STUD

90116-08087-00

$8.49

8

PLUG, SPARK (NGK LMAR8A-9)

LMA-R8A9S-00-00

Unavailable

9

BOLT

90109-06293-00

$13.99

10

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

11

BOLT, WITH WASHER

90119-10062-00

$10.49

12

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

Unavailable

13

GASKET, CYLINDER HEAD 1

BG4-11181-00-00

$47.99

14

PIN, DOWEL

99530-12016-00

$4.89

15

COVER, CYLINDER HE

B4D-E1190-01-00

Unavailable

16

GASKET, HEAD COVER 1

BG4-11193-00-00

Unavailable

17

PLUG, OIL

3Y1-15363-10-00

Unavailable

18

O-RING (646)

93210-19123-00

Unavailable

19

BOLT(4BP)

90109-066F0-00

Unavailable

20

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

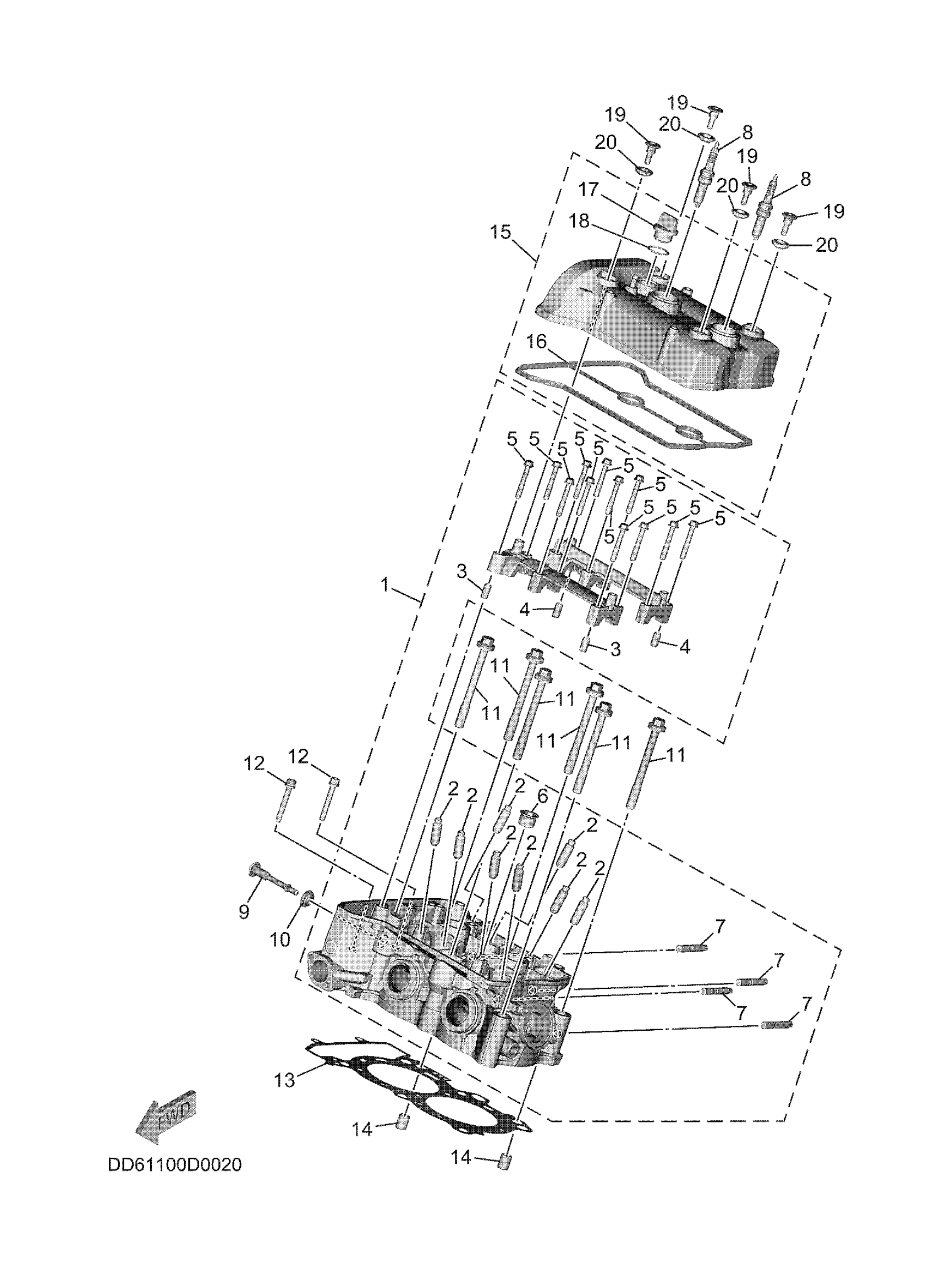

Yamaha YXF85WTZSB (WOLVERINE X4 850 XT R) BARV 2025 CYLINDER Diagram

CYLINDER HEAD ASSY

GUIDE, VALVE 1

PIN, DOWEL(3XW)

PIN, DOWEL(3XW)

BOLT, WASHER BASED

PLUG, STRAIGHT SCREW

BOLT, STUD

PLUG, SPARK (NGK LMAR8A-9)

BOLT

RUBBER, MOUNT 1

BOLT, WITH WASHER

BOLT, HEXAGON SOCKET HEAD

GASKET, CYLINDER HEAD 1

PIN, DOWEL

COVER, CYLINDER HE

GASKET, HEAD COVER 1

PLUG, OIL

O-RING (646)

BOLT(4BP)

RUBBER, MOUNT 1
