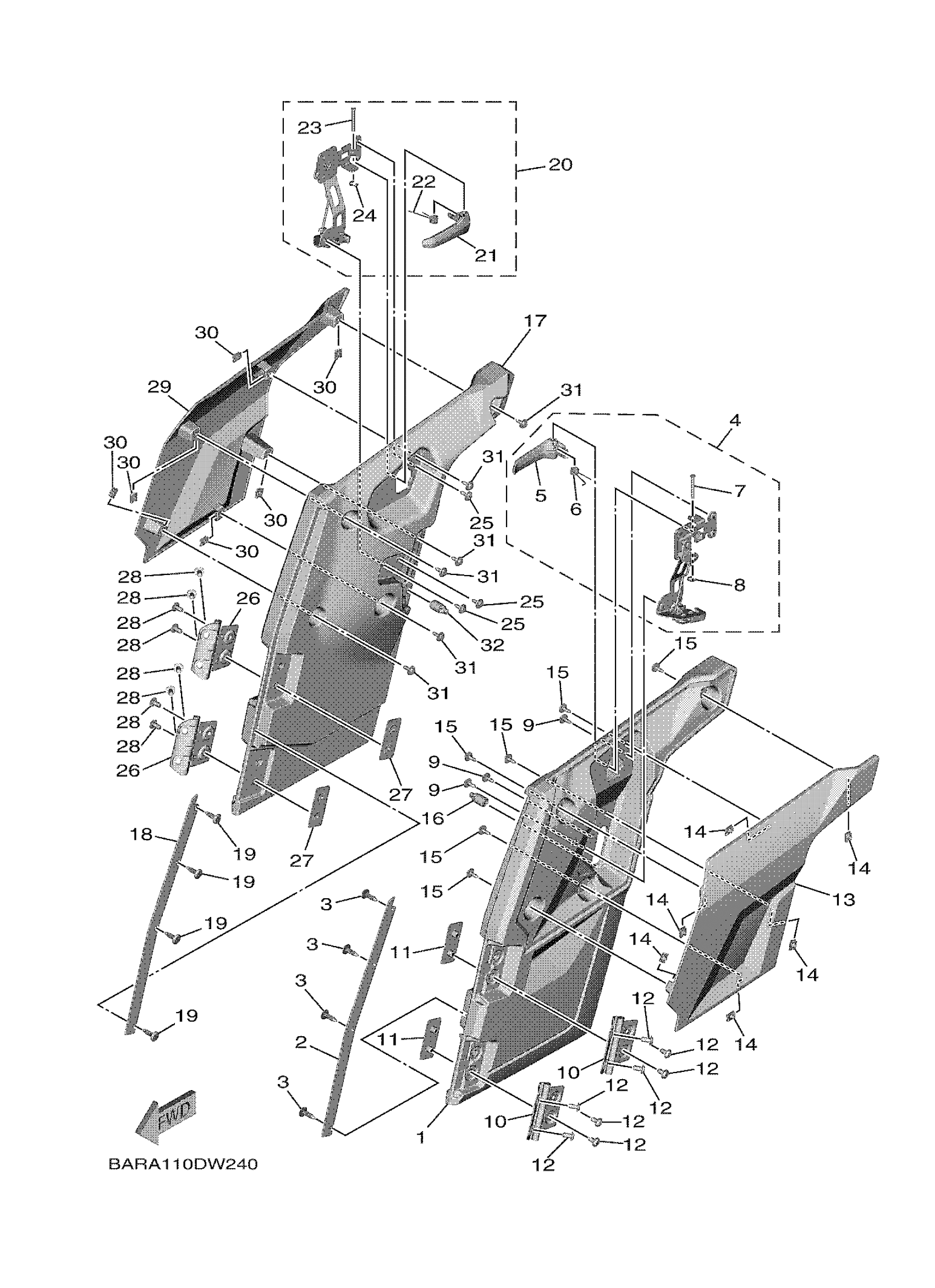

Yamaha YXF85WTZRD (WOLVERINE X4 XT R) BARR 2024 SIDE COVER 2 Diagram

#

Description
Price

1

DOOR PANEL

BG4-K8571-11-00

$512.02

2

COVER 3

BAR-F198J-00-00

$230.86

3

RIVET

90269-03001-00

Unavailable

4

BODY, LATCH 1

BG4-K7171-00-00

$206.80

5

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

6

SPRING

2HC-F1742-00-00

$2.14

7

. PIN

90249-05801-00

$2.18

8

CIRCLIP (EU0)

99080-04600-00

$1.70

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

HINGE, SEAT 2

BG4-F4779-00-00

$19.64

11

NUT,PLATE

BG4-F1736-00-00

$5.73

12

SCREW

90149-08805-00

$0.84

13

SIDE PNL. COMP. 3

BG4-K810W-50-00

$104.47

14

NUT, SPRING

90183-062A1-00

$1.75

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

PAD

2MB-F8378-00-00

Unavailable

17

PNL. , DOOR RR. RH

BG4-K8572-11-00

Unavailable

18

COVER 3

BAR-F198J-00-00

$230.86

19

RIVET

90269-03001-00

Unavailable

20

BODY, LATCH 2

BG4-K7172-00-00

Unavailable

21

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

22

SPRING

2HC-F1742-00-00

$2.14

23

. PIN

90249-05801-00

$2.18

24

CIRCLIP (EU0)

99080-04600-00

$1.70

25

BOLT, WITH WASHER

90119-06226-00

$2.12

26

HINGE, SEAT 2

BG4-F4779-00-00

$19.64

27

NUT,PLATE

BG4-F1736-00-00

$5.73

28

SCREW

90149-08805-00

$0.84

29

SIDE PNL. COMP. 4

BG4-K810X-50-00

Unavailable

30

NUT, SPRING

90183-062A1-00

$1.75

31

BOLT, WITH WASHER

90119-06226-00

$2.12

32

PAD

2MB-F8378-00-00

Unavailable
