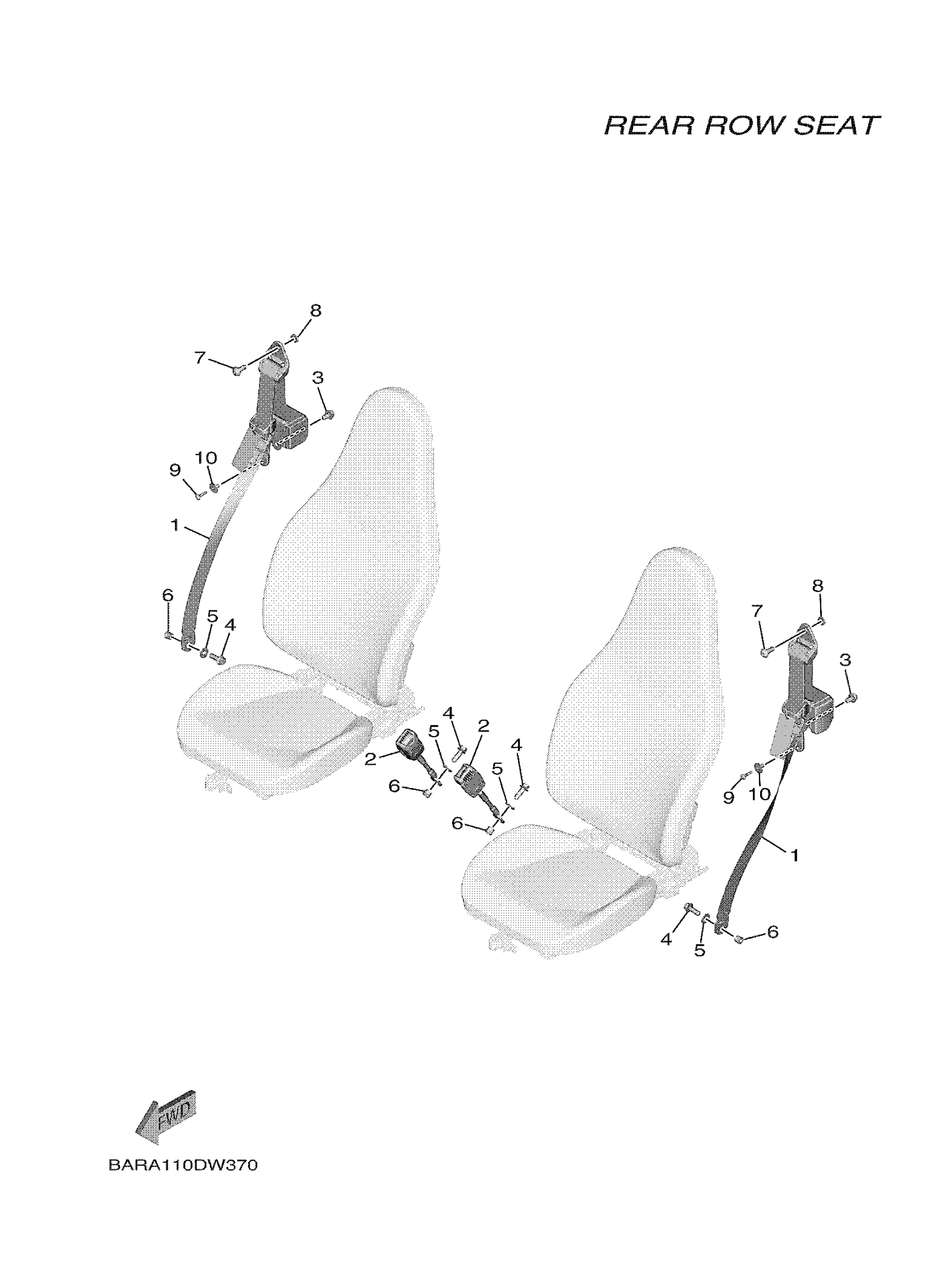

Yamaha YXF85WTZRD (WOLVERINE X4 XT R) BARR 2024 SEAT 4 Diagram

#

Description
Price

1

REAR SEAT BELT ASS

B4J-F470N-02-00

$141.27

2

RR. BELT RECEIVER

B4J-F470S-00-00

$29.42

3

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.07

4

BOLT, FLANGE DEEP RECESS

95D32-12035-00

$2.66

5

WASHER, PLATE

90201-13020-00

$2.83

6

COLLAR

90387-12869-00

$19.09

7

BOLT,HEX. SOCKET B

90111-11800-00

$2.22

8

WASHER, PLATE (583)

90201-12593-00

$6.35

9

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$9.69

10

COLLAR (17W)

90387-075H4-00

$6.02
