Yamaha YXF85WTZRD (WOLVERINE X4 XT R) BARR 2024 CRANKCASE Diagram
#
1

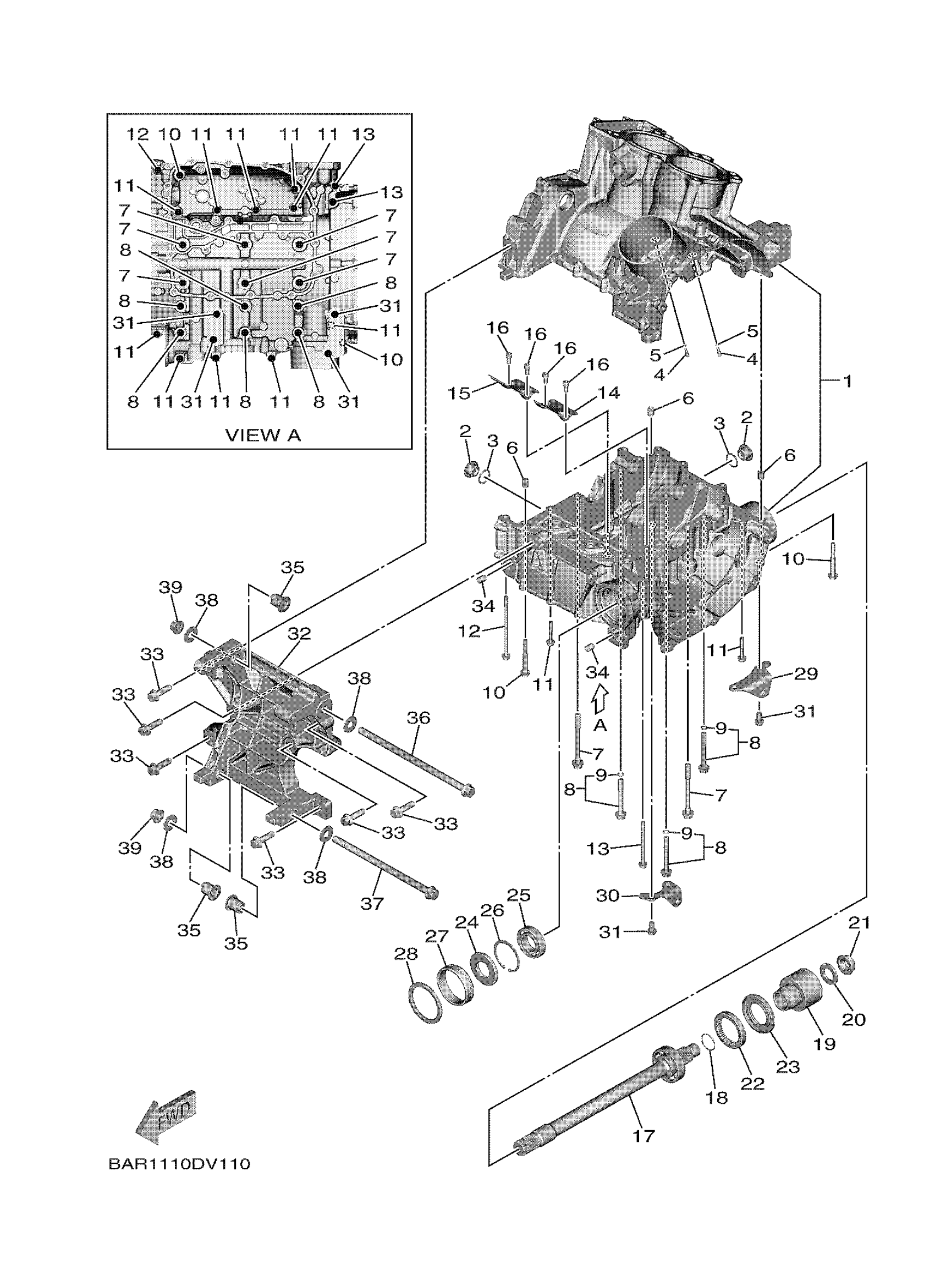

CRANKCASE ASSY
BG4-E5100-09-00
Unavailable
2
PLUG
4H7-15189-00-00
$30.99
3
O-RING
93210-20802-00
$0.86
4
NOZZLE 3
5EB-15155-00-00
$14.49
5
O-RING (210)
93210-04092-00
$3.76
6
PIN, DOWEL(3VD)
99530-10114-00
$2.55
7
BOLT, WITH WASHER
90119-09010-00
$13.49
8
BOLT, CRANKCASE JOURNAL
BG4-15156-00-00
$7.49
9
O-RING (11M)
93210-07540-00
$7.49
10
BOLT
90109-06100-00
$8.49
11
BOLT, FLANGE
95817-06040-00
$5.60
12
BOLT, FLANGE
95812-06120-00
Unavailable
13
BOLT, FLANGE
90105-06202-00
$1.91
14
PLATE, BAFFLE 1
BG4-15123-00-00
$5.60
15
PLATE, BUFFLE 2
BG4-15124-00-00
$8.49
16
BOLT (33M)
91312-06014-00
Unavailable
17
MIDDLE DRIVEN SHAFT ASSY
BG4-1755A-00-00
Unavailable
18
O-RING (M01)
93210-25755-00
Unavailable
19
COUPLING
B4D-E7832-00-00
Unavailable
20
WASHER, PLATE
90201-22026-00
Unavailable
21
NUT
90179-22025-00
Unavailable
22
NUT(59V)
90179-65305-00
Unavailable
23
OIL SEAL
93102-40031-00
Unavailable
24
OIL SEAL
93102-30018-00
Unavailable
25
BEARING(2HR)
93306-00612-00
Unavailable
26
CIRCLIP
99009-55500-00
Unavailable
27
COLLAR
90387-61001-00
Unavailable
28
O-RING (4U8)
93210-63442-00
Unavailable
29
BRACKET
B4D-E4867-00-00
Unavailable
30
BRACKET 2
B4D-E4868-00-00
Unavailable
31
BOLT, FLANGE
95022-08016-00
Unavailable
32
ADAPTER
BG4-17848-00-00
Unavailable
33
BOLT, FLANGE
95812-10035-00
Unavailable
34
PIN, DOWEL(3VD)
99530-10114-00
$2.55
35
BOLT
8FG-2149C-00-00
Unavailable
36
BOLT, FLANGE
90105-12086-00
Unavailable
37
BOLT, FLANGE
90105-12044-00
Unavailable
38
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
39
95702-12500
95702-12500-00
Unavailable
