- YXF85WTZNB (WOLVERINE X4 EPS XT R) BARG 2022
TRANSMISSION

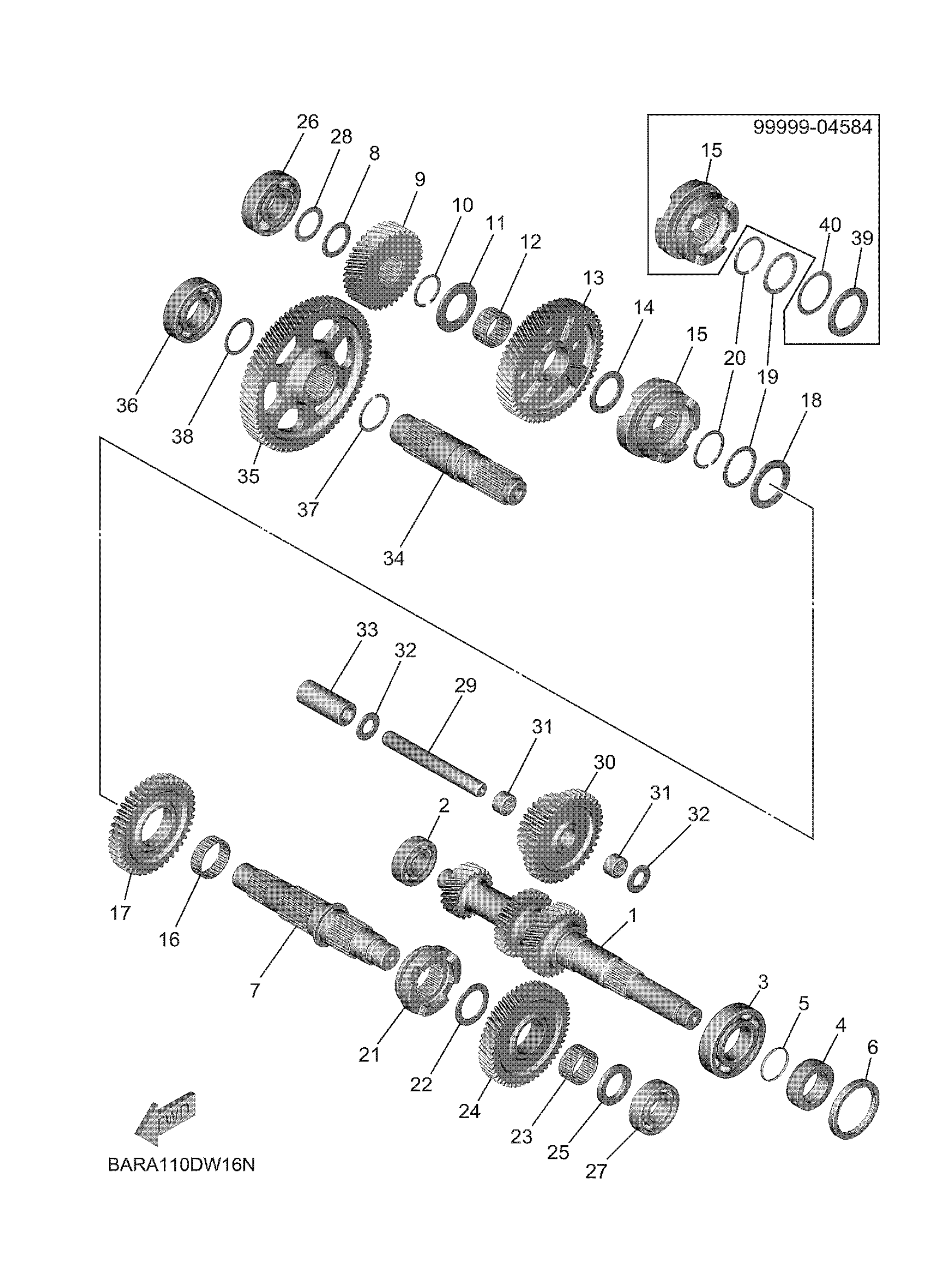

Yamaha YXF85WTZNB (WOLVERINE X4 EPS XT R) BARG 2022 TRANSMISSION Diagram
#
1
SHAFT, SECONDARY
BG4-17681-10-00
$275.99
2
BEARING
93306-20481-00
$39.99
3
BEARING
93306-20726-00
$43.99
4
COLLAR
90387-32007-00
Unavailable
5
O-RING(6U1)
93210-32MF3-00
$8.49
6
OIL SEAL
93102-48009-00
Unavailable
7
AXLE, DRIVE
BG4-17421-00-00
Unavailable
8
WASHER, PLATE
90201-25017-00
$10.49
9
GEAR, MIDDLE DRIVE (36T)
BG4-17582-00-00
Unavailable
10
CIRCLIP (3J3)
93440-30077-00
$10.49
11
WASHER, PLATE (5Y1)
90201-301F4-00
$16.99
12
BEARING
93310-33085-00
Unavailable
13
GEAR, LOW WHEEL
B4J-17233-00-00
$269.99
14
WASHER, PLATE (2H7)
90201-30666-00
$10.49
15
DOG CLUTCH KIT
99999-04584-00
$132.99
15
HOLDER
BG4-17286-01-00
Unavailable
16
BEARING
93310-33599-00
Unavailable
17
GEAR, REVERSE WHEEL 2 (42T)
BG4-17253-00-00
Unavailable
18
WASHER, PLATE
90201-35017-00
Unavailable
19
WASHER
90209-33008-00
Unavailable
20
CIRCLIP (371)
93440-34025-00
Unavailable
21
CLUTCH, DOG
BG4-17285-00-00
Unavailable
22
WASHER, PLATE (2H7)
90201-30666-00
$10.49
23
BEARING
93310-33085-00
Unavailable
24
GEAR, HIGH WHEEL (53T)
BG4-17223-10-00
Unavailable
25
COLLAR
90387-25036-00
Unavailable
26
BEARING(3RR)
93306-30560-00
Unavailable
27
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
28
SHIM, THRUST (0.25T)
3B4-46119-00-00
Unavailable
28
SHIM, THRUST (0.30T)
3B4-46119-10-00
Unavailable
28
SHIM, THRUST (0.35T)
3B4-46119-20-00
Unavailable
28
SHIM, THRUST (0.40T)
3B4-46119-30-00
Unavailable
28
SHIM, THRUST (0.45T)
3B4-46119-40-00
Unavailable
28
SHIM, THRUST (0.50T)
3B4-46119-50-00
Unavailable
28
SHIM, THRUST (0.80T)
3B4-46119-60-00
Unavailable
28
SHIM, THRUST (1.00T)
3B4-46119-70-00
Unavailable
29
AXLE, IDLE
BG4-17432-00-00
Unavailable
30
GEAR, REVERSE WHEEL 1(39T/26T)
BG4-17243-00-00
Unavailable
31
BEARING
93315-21570-00
Unavailable
32
WASHER, PLATE
90201-15029-00
Unavailable
33
COLLAR
90387-15020-00
Unavailable
34
SHAFT
BG4-17523-00-00
Unavailable
35
GEAR, MIDDLE DRIVEN (69T)
BG4-17583-00-00
Unavailable
36
BEARING (5X5)
93306-20627-00
Unavailable
37
CIRCLIP (371)
93440-34025-00
Unavailable
38
SHIM, PINION
52G-17531-21-00
Unavailable
38
SHIM, PINION
52G-17531-31-00
Unavailable
38
SHIM, PINION
52G-17531-41-00
Unavailable
38
SHIM, PINION
52G-17531-51-00
Unavailable
38
SHIM, PINION (0.25T)
52G-17531-61-00
Unavailable
38
SHIM, PINION (0.35T)
52G-17531-71-00
Unavailable
38
SHIM, PINION (0.45T)
52G-17531-81-00
Unavailable
38
SHIM, PINION (0.80T)
52G-17531-91-00
Unavailable
39
WASHER
90209-35011-00
Unavailable
40
WASHER, CONICAL SPRING
90208-39002-00
Unavailable
