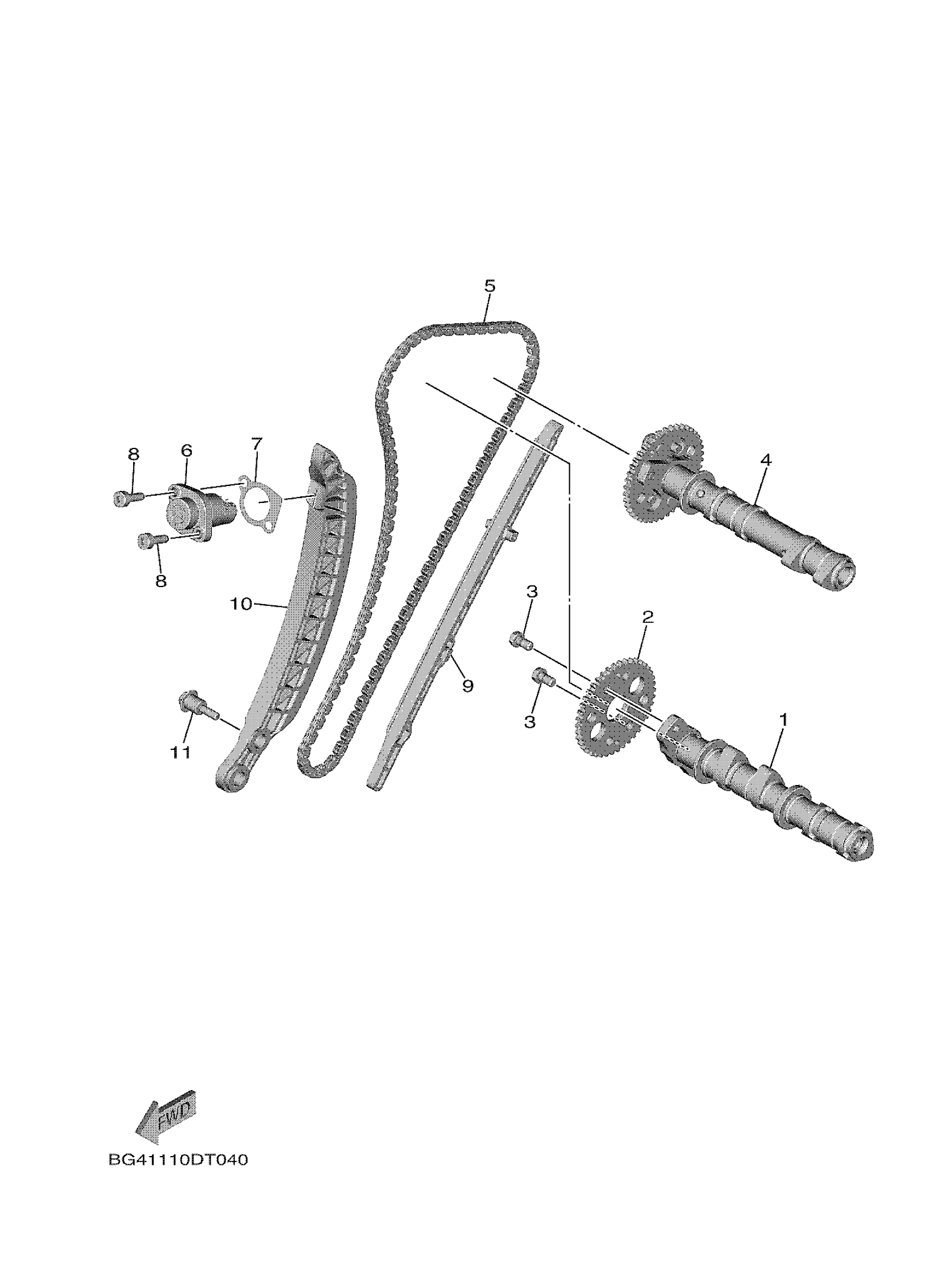

Yamaha YXF85WTZNB (WOLVERINE X4 EPS XT R) BARG 2022 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B4D-E2170-00-00

$160.36

2

SPROCKET, CAM CHAIN

B4D-E2176-00-00

$23.24

3

BOLT, FLANGE

90105-07006-00

$5.84

4

CAMSHAFT ASSY 2

B4D-E2180-00-00

$256.37

5

CHAIN (98XRH2010-146M)

94591-57146-00

$69.15

6

TENSIONER ASSY, CA

8KH-12210-00-00

$98.03

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$6.45

8

BOLT, HEXAGON SOCKET HEAD

90110-06335-00

$4.82

9

DAMPER, CHAIN 1

BG4-12251-00-00

$16.55

10

DAMPER, CHAIN 2

BG4-12252-00-00

$24.39

11

BOLT

90109-06297-00

$4.93
