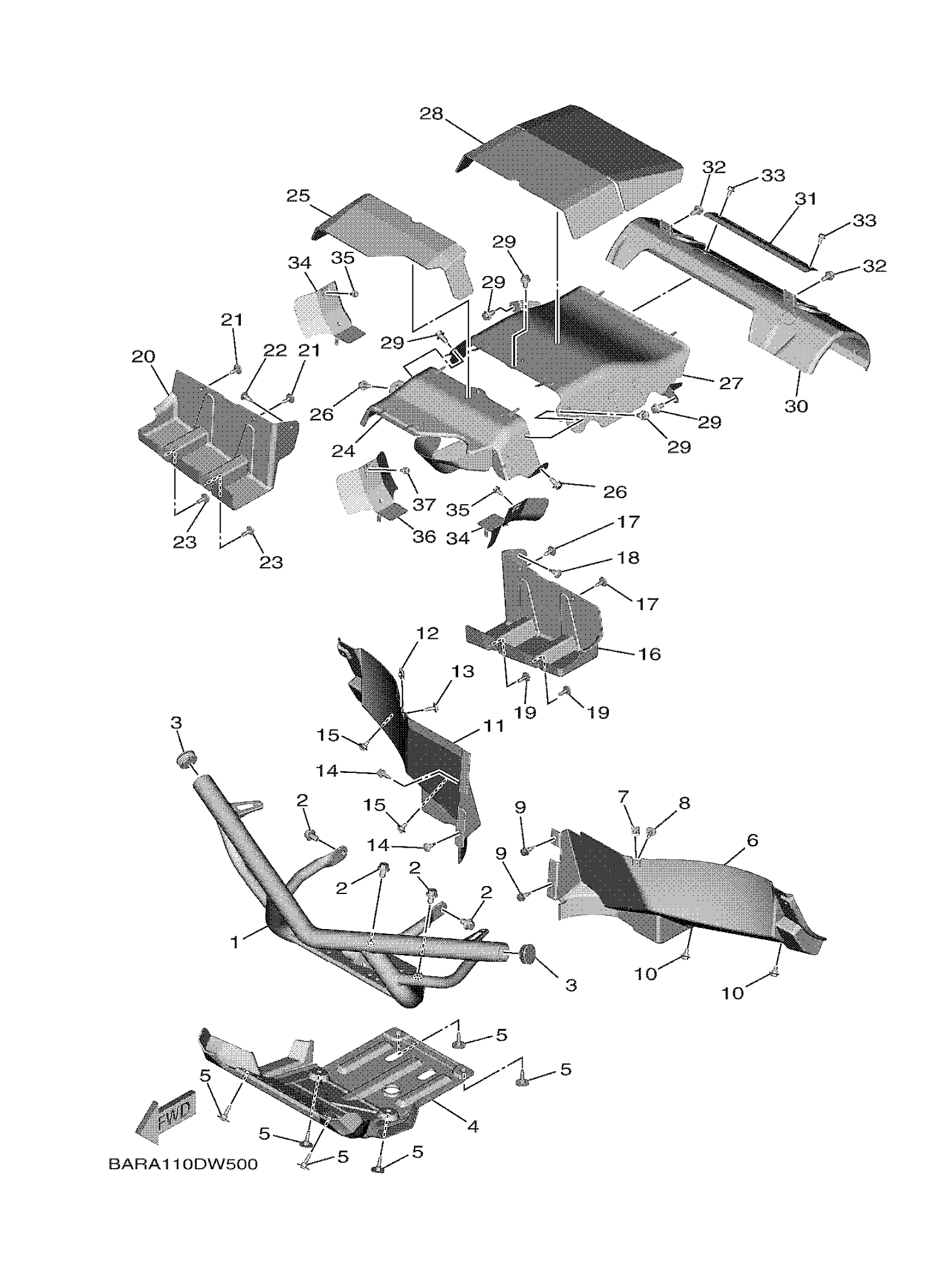

Yamaha YXF85WTARW (WOLVERINE X4 R SPEC) BART 2024 GUARD Diagram
#
1
BAR, CARRY FRONT
BAR-F845N-11-00
$234.99
2
BOLT, FLANGE
95812-10016-00
$9.49
3
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
4
COVER, LOWER
2MB-F8385-01-00
$44.99
5
BOLT
90109-068A5-00
$7.49
6
GUARD 1
BG4-F2361-01-00
$18.99
7
NUT, SPRING
90183-062A1-00
$1.96
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
BOLT
90109-06334-00
$2.60
11
GUARD 2
BG4-F2362-01-00
$26.99
12
NUT, SPRING
90183-062A1-00
$1.96
13
BOLT, WITH WASHER
90119-06226-00
$8.49
14
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
BOLT
90109-06334-00
$2.60
16
MUD GUARD 1
BG4-F2327-00-00
Unavailable
17
BOLT, WITH WASHER
90119-06226-00
$8.49
18
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
19
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
20
MUD GUARD 2
BG4-F2328-00-00
Unavailable
21
BOLT, WITH WASHER
90119-06226-00
$8.49
22
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
24
INSULATOR, HEAT
BAR-F2898-01-00
Unavailable
25
DAMPER 1
BAR-F8415-00-00
Unavailable
26
BOLT, FLANGE
90105-08867-00
Unavailable
27
SHIELD, HEAT
BAR-F3892-01-00
Unavailable
28
DAMPER 3
BAR-F8425-00-00
Unavailable
29
BOLT, FLANGE
90105-08867-00
Unavailable
30
INSULATOR,MOUNTING
BG4-F2891-01-00
Unavailable
31
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
32
BOLT, FLANGE
90105-08867-00
Unavailable
33
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
34
PROTECTOR 1
BAR-F2825-00-00
Unavailable
35
BOLT, FLANGE
90105-08867-00
Unavailable
36
PROTECTOR
BAR-F3472-00-00
Unavailable
37
BOLT, FLANGE
90105-08867-00
Unavailable
