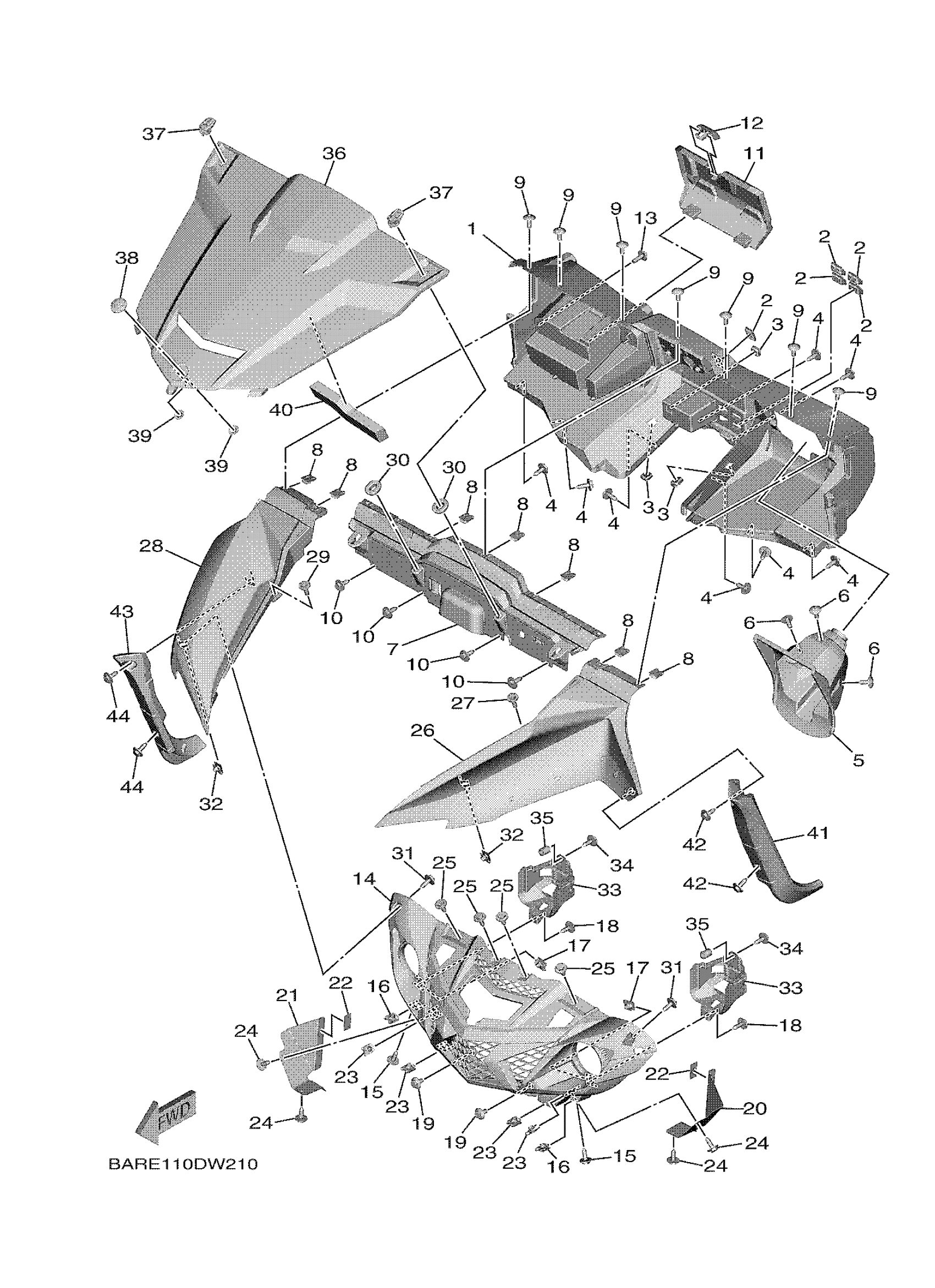

Yamaha YXF85WTARW (WOLVERINE X4 R SPEC) BART 2024 FRONT FENDER Diagram
#
Description
Price
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
9
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
12
LOCK
F2X-U2875-00-00
Unavailable
13
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
19
BOLT
90109-06202-00
Unavailable
20
COVER 1
BG4-E246A-00-00
Unavailable
21
COVER 2
BG4-E246E-00-00
Unavailable
22
DAMPER
5UG-K7588-01-00
Unavailable
26
FENDER, FRONT
BG4-F1511-50-00
Unavailable
27
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
28
FENDER, FRONT 2
BG4-F1556-50-00
Unavailable
29
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
30
GROMMET(4DN)
90480-01558-00
Unavailable
33
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
35
HOSE
90445-08029-00
Unavailable
36
HOOD 1
BG4-F1982-21-00
Unavailable
37
LEVER, LOCK
1XD-2175K-10-00
Unavailable
38
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
39
NUT, SPRING
90183-06071-00
Unavailable
40
DAMPER, PLATE
90520-50004-00
Unavailable
41
EXT,FRONT FENDER 1
BG4-K8185-01-00
Unavailable
43
EXT,FRONT FENDER 2
BG4-K8186-01-00
Unavailable
