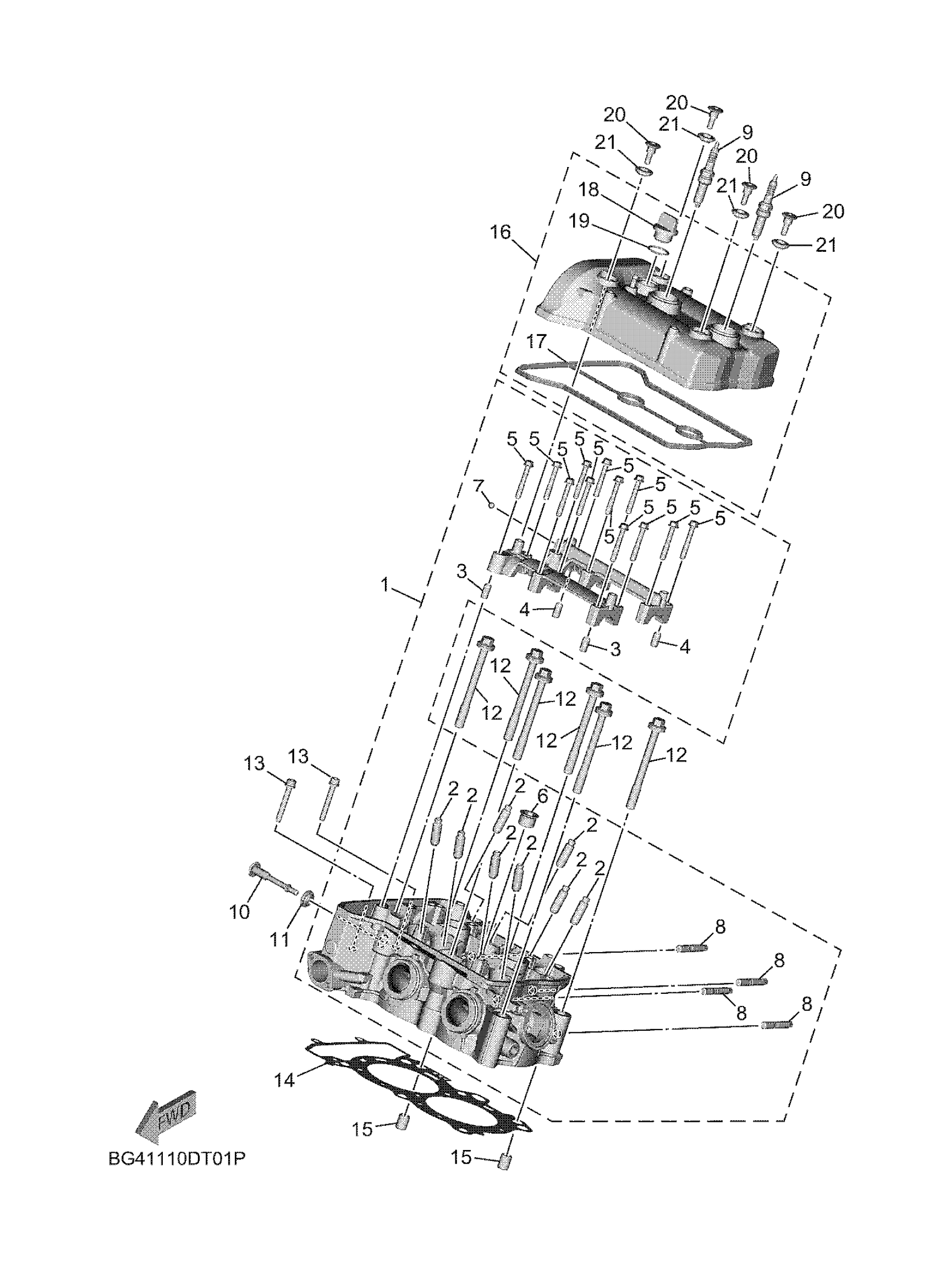

Yamaha YXF85WTARW (WOLVERINE X4 R SPEC) BART 2024 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B4D-E1101-09-00

$423.88

2

GUIDE, VALVE 1

4D9-11133-10-00

$73.89

3

PIN, DOWEL(3XW)

91808-16023-00

$5.26

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED

90105-06027-00

$5.80

6

PLUG, STRAIGHT SCREW

90340-18002-00

$8.95

7

BALL

93501-04011-00

$5.84

8

BOLT, STUD

90116-08087-00

$7.03

9

PLUG, SPARK (NGK LMAR8A-9)

LMA-R8A9S-00-00

$12.25

10

BOLT

90109-06293-00

$12.20

11

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99

12

BOLT, WITH WASHER

90119-10062-00

$8.51

13

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

$2.56

14

GASKET, CYLINDER HEAD 1

BG4-11181-00-00

$38.52

15

PIN, DOWEL

99530-12016-00

$3.85

16

COVER, CYLINDER HEAD 1

B4D-E1190-00-00

Unavailable

17

GASKET, HEAD COVER 1

BG4-11193-00-00

Unavailable

18

PLUG, OIL

3Y1-15363-10-00

Unavailable

19

O-RING (646)

93210-19123-00

Unavailable

20

BOLT(4BP)

90109-066F0-00

Unavailable

21

RUBBER, MOUNT 1

5VY-1111G-00-00

$9.99
