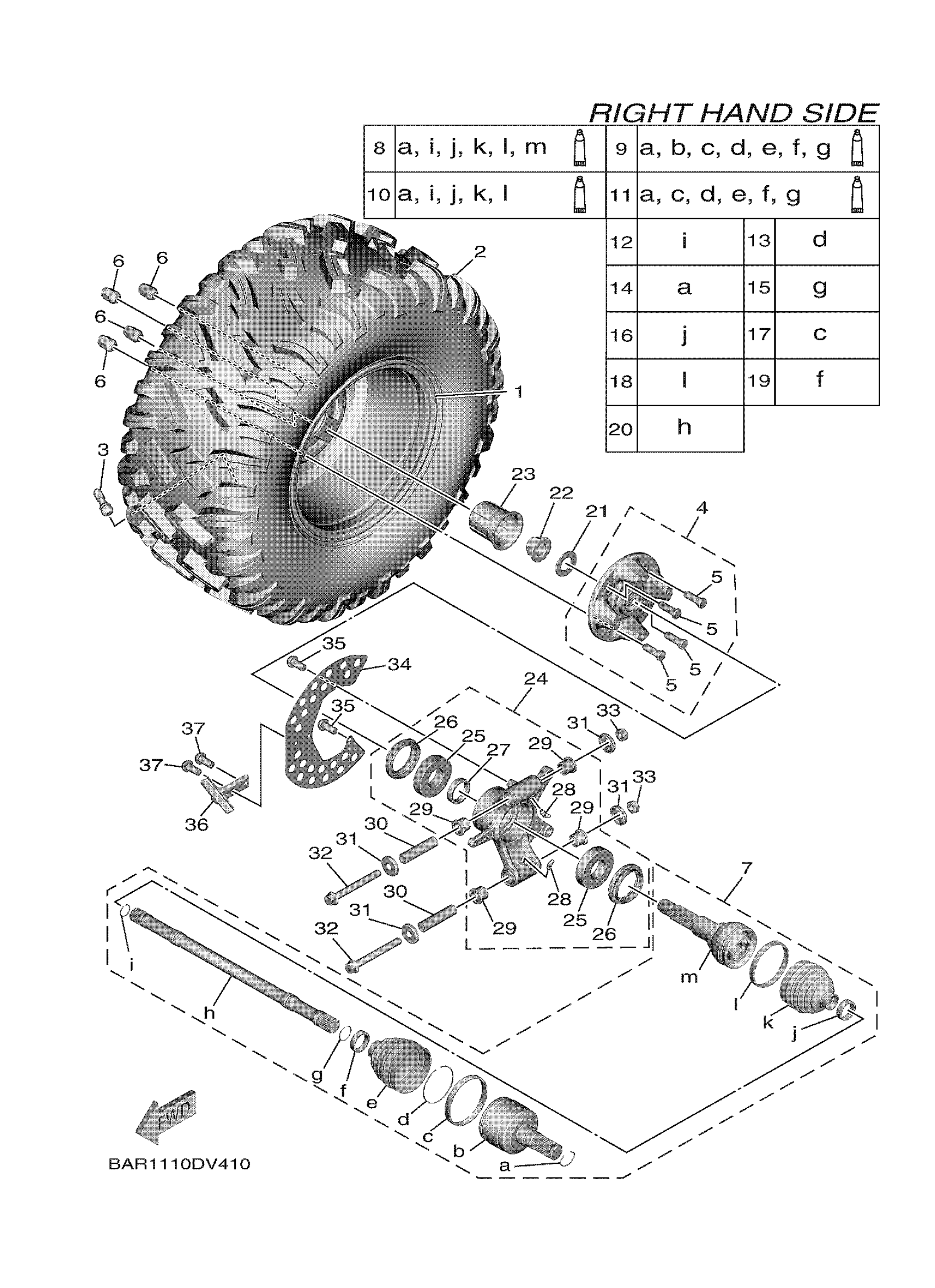

Yamaha YXF85WTAPL (WOLVERINE X4 RSPEC) BARN 2023 REAR WHEEL 2 Diagram
#
1
CAST WHEEL, REAR
BG4-F5307-40-00
$296.99
2
TIRE (27X11.00R12 GA-797)
94111-12814-00
Unavailable
3
VALVE, RIM (TR412)
93900-00838-00
Unavailable
4
HUB ASSY 2
2MB-F510D-04-00
Unavailable
5
BOLT, SERRATION
90114-12005-00
$2.97
6
NUT, CROWN
90176-12801-00
Unavailable
7
REAR DRIVE SHAFT A
BAR-2531H-01-00
$523.99
8
BALL JOINT SET
BG4-2530T-01-00
$384.99
9
DOUBLE OFF SET JOINT
BG4-2530V-01-00
$501.99
10
BOOT SET (BALL JOINT)
BG4-2530X-01-00
$53.99
11
BOOT SET(DOUBLE OFFSET JOINT)
2HC-2530Y-01-00
$53.99
12
RING 1
BG4-25185-00-00
$4.56
13
CLIP, SPRING
2HC-2536E-00-00
$4.99
14
CLIP, SPRING
16B-2536E-00-00
$4.63
15
SNAP RING
2HC-2512J-00-00
$4.58
16
BAND
BG4-26397-00-00
Unavailable
17
BAND
2HC-26293-00-00
Unavailable
18
BAND
BG4-2639A-00-00
Unavailable
19
BAND
2HC-25719-00-00
Unavailable
20
SHAFT
BAR-259A2-00-00
Unavailable
21
WASHER, PLATE
90201-25023-00
Unavailable
22
NUT
90179-24006-00
Unavailable
23
CAP, WHEEL
2MB-F512A-00-00
Unavailable
24
REAR KNUCKLE ASSY.
1XD-F532F-21-00
Unavailable
25
BEARING
93306-20725-00
Unavailable
26
OIL SEAL
93106-50002-00
Unavailable
27
COLLAR
90387-35007-00
Unavailable
28
NIPPLE, GREASE (36X)
93700-06009-00
Unavailable
29
BUSH, SOLID
90381-18005-00
Unavailable
30
COLLAR
90387-12N54-00
Unavailable
31
COVER, THRUST 1
1XD-23517-01-00
Unavailable
32
BOLT, FLANGE
90105-12089-00
Unavailable
33
NUT, SELF-LOCKING
90185-12010-00
Unavailable
34
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
35
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
36
PLATE, GUIDE 2
1XD-F2342-00-00
Unavailable
37
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
