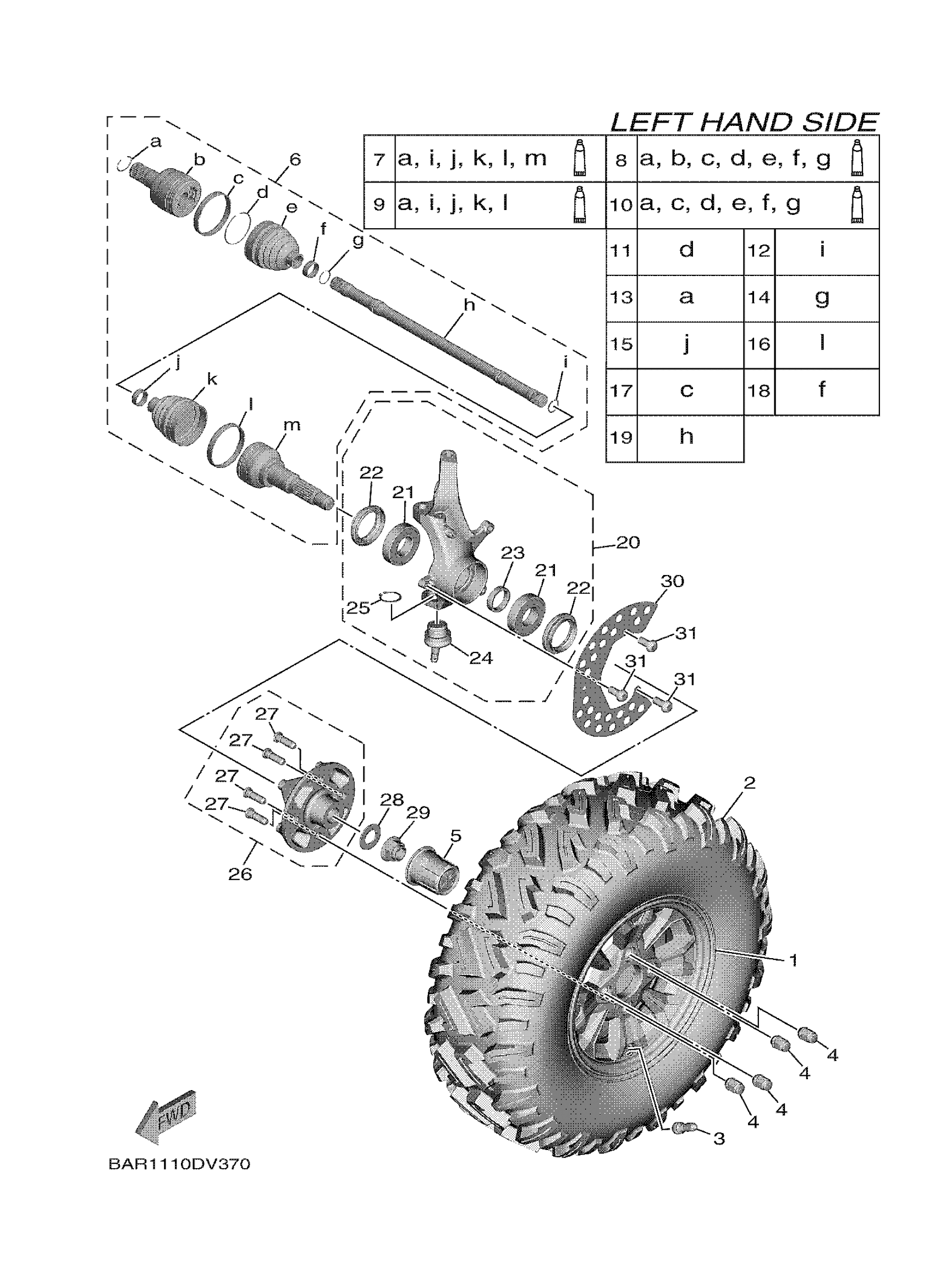

Yamaha YXF85WTAPL (WOLVERINE X4 RSPEC) BARN 2023 FRONT WHEEL Diagram
#
1
CAST WHEEL, FRONT
BG4-F5168-40-00
Unavailable
2
TIRE (27X9.00R12 GA-797)
94109-12815-00
Unavailable
3
VALVE, RIM (TR412)
93900-00838-00
Unavailable
4
NUT, CROWN
90176-12801-00
Unavailable
5
CAP, WHEEL
2MB-F512A-00-00
$2.65
6
DRIVE SHAFT ASSY
BG4-2518F-02-00
$196.99
7
BALL JOINT SET
BG4-2510F-01-00
$399.99
8
DOUBLE OFF SET JOINT
BG4-2510J-01-00
$355.99
9
BOOT SET (BALL JOI
BG4-2510G-02-00
Unavailable
10
BOOT SET(DOUBLE OFFSET JOINT)
BG4-2510H-01-00
$59.99
11
NUT, AXLE
BG4-25182-00-00
$3.98
12
CIRCLIP
2HC-2512H-00-00
$3.80
13
CLIP, SPRING
16B-2536E-00-00
$4.63
14
. SNAP RING
16B-2512J-00-00
Unavailable
15
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
$6.99
16
BOOT BAND (SMALL)
BG4-2512G-00-00
Unavailable
17
BOOT BAND(DOUBLE OFFSET JOINT)
BG4-2511H-00-00
Unavailable
18
BOOT BAND (BALL JOINT)
BG4-2511G-00-00
Unavailable
19
SHAFT
BG4-2518E-00-00
Unavailable
20
STEERING KNUCKLE A
1XD-F3501-00-00
Unavailable
21
BEARING
93306-20725-00
Unavailable
22
OIL SEAL
93106-50002-00
Unavailable
23
COLLAR
90387-35007-00
Unavailable
24
BALL JOINT 2
1XD-23579-00-00
Unavailable
25
CIRCLIP
93410-32075-00
Unavailable
26
HUB ASSY 2
2MB-F510D-04-00
Unavailable
27
BOLT, SERRATION
90114-12005-00
Unavailable
28
WASHER, PLATE
90201-25023-00
Unavailable
29
NUT
90179-24006-00
Unavailable
30
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
31
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
