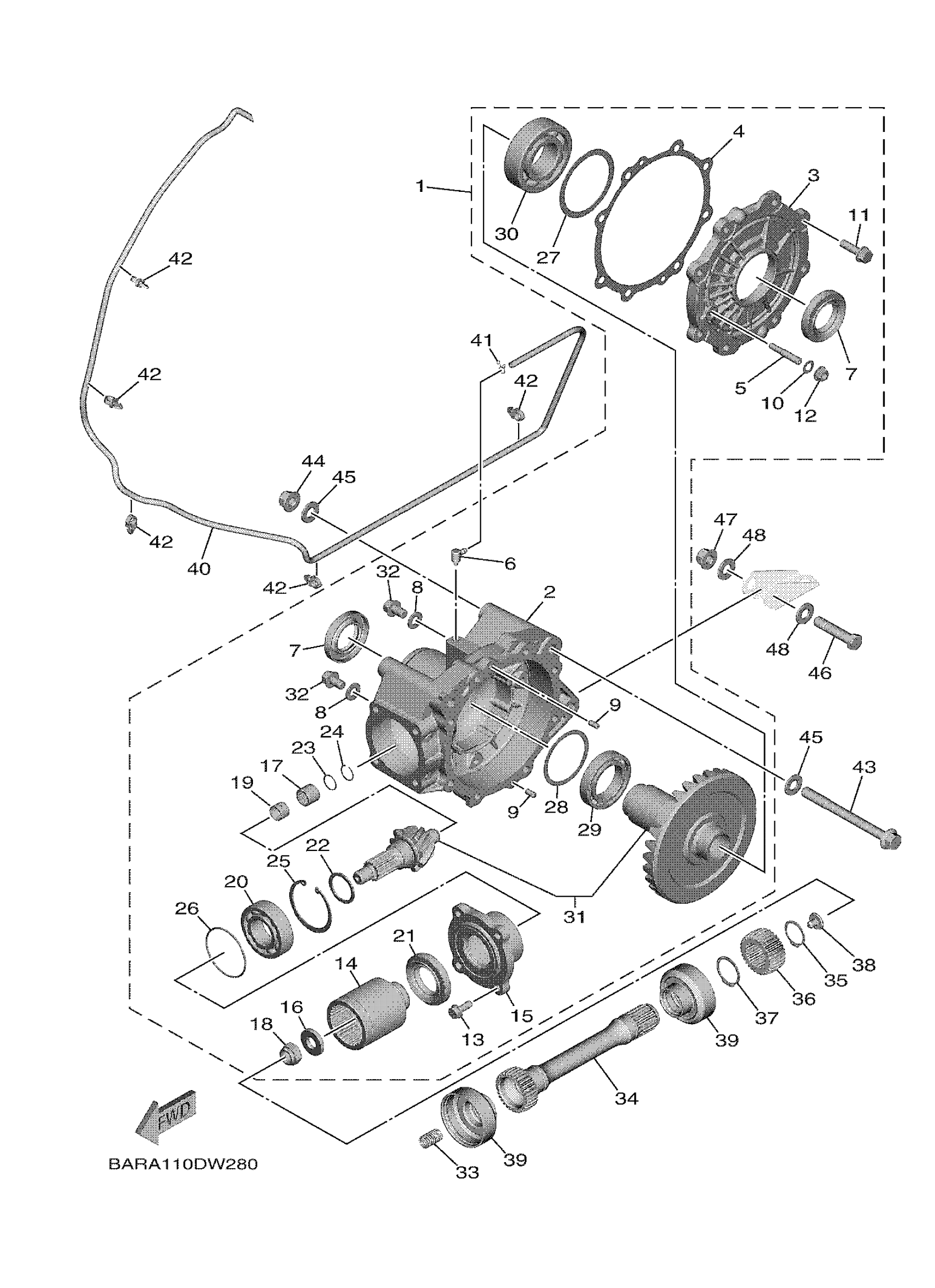

Yamaha YXF85WTAPL (WOLVERINE X4 RSPEC) BARN 2023 DRIVE SHAFT Diagram
#
16
WASHER 1
1CT-E1557-00-00
Unavailable
17
BEARING 1
1XD-E1428-00-00
Unavailable
18
NUT, LOCK
1CT-E6377-00-00
Unavailable
19
CLIP
1XD-G5319-00-00
Unavailable
20
BEARING
93306-30574-00
Unavailable
22
WHEEL, SPROCKET 1
1XD-G7531-00-00
Unavailable
23
WASHER,LOCK
2HC-F2149-00-00
Unavailable
24
RING,RETAINER
2HC-F5841-00-00
Unavailable
25
CLIP
1XD-E1486-00-00
Unavailable
26
OIL RING, PISTON
1XD-E1614-00-00
Unavailable
27
SHIM
1XD-G5567-00-00
Unavailable
28
SHIM
1XD-G5577-00-00
Unavailable
29
BEARING
1XD-E7051-00-00
Unavailable
30
BEARING 2
1XD-E1429-00-00
Unavailable
31
RING GEAR SET
BG4-G61A0-01-00
Unavailable
32
BOLT
1XD-E2228-00-00
Unavailable
33
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
34
SHAFT, DRIVE
BG4-G6172-00-00
Unavailable
35
CIRCLIP(8CJ)
93410-27080-00
Unavailable
36
COUPLING
BG4-46126-00-00
Unavailable
37
CIRCLIP(3VD)
93440-31172-00
Unavailable
38
DAMPER
5KM-46559-00-00
Unavailable
39
SEAL 2
BG4-46137-00-00
Unavailable
40
HOSE (L1340)
90445-07051-00
Unavailable
41
CLIP (1J7)
90467-07029-00
Unavailable
42
CLAMP
90464-12830-00
Unavailable
43
BOLT, FLANGE
95812-12130-00
Unavailable
44
NUT, SELF-LOCKING
90185-12002-00
Unavailable
46
BOLT
90101-12021-00
Unavailable
47
NUT, SELF-LOCKING
90185-12002-00
Unavailable
